睡眠與分子:生物化學與化學生物學的貢獻|老夫之樂

(2024年12月30日英文文章線)

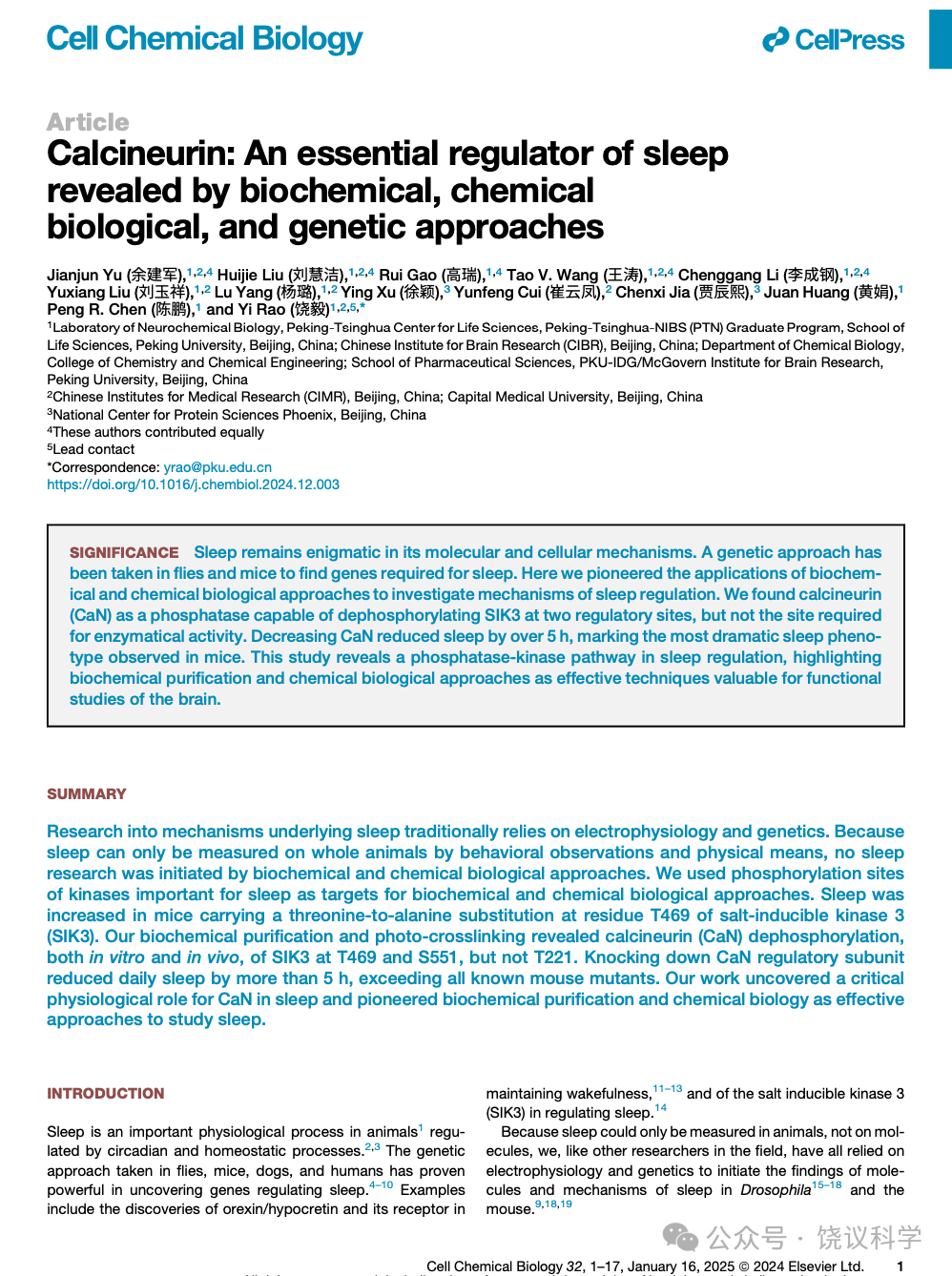

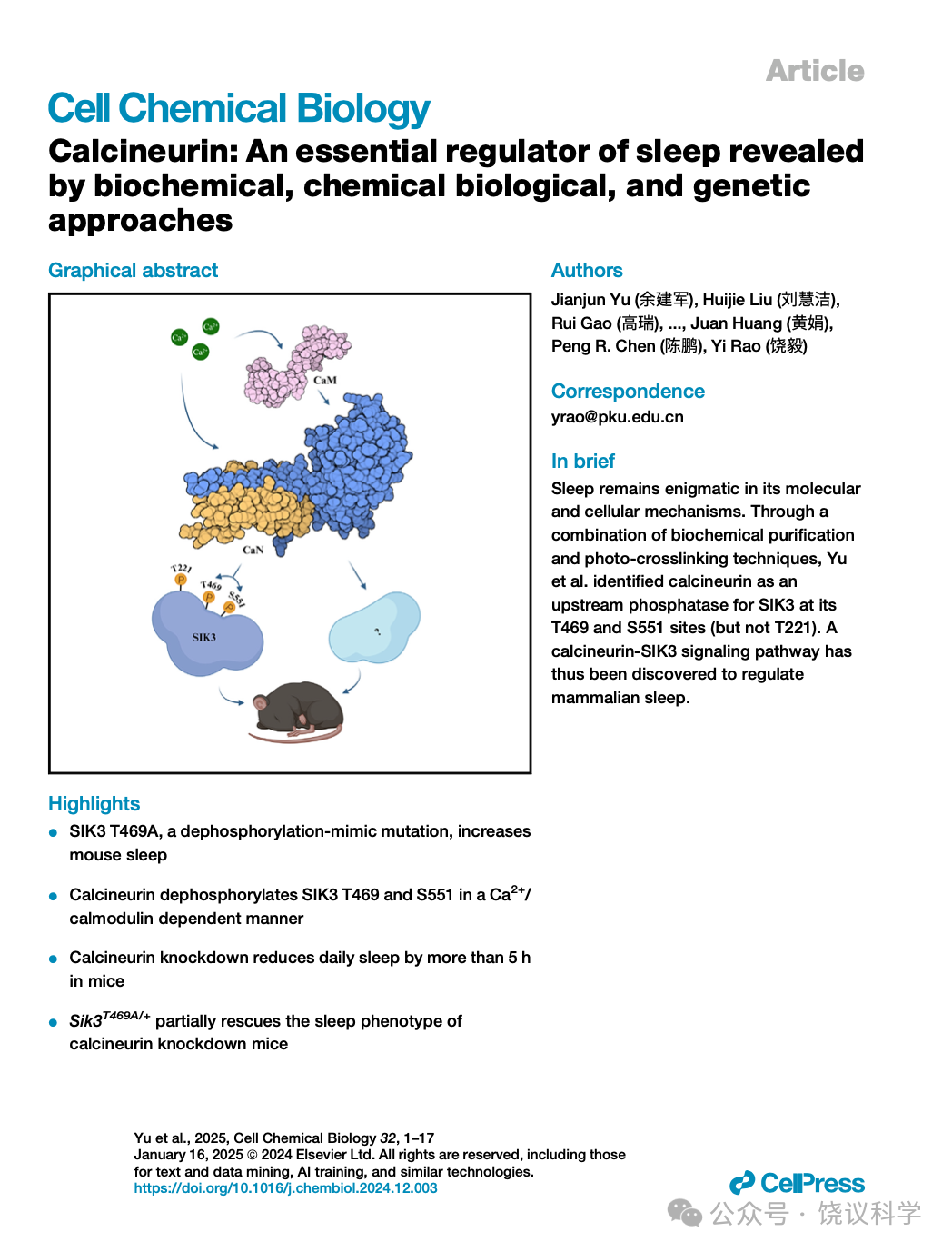

用生物化學、化學生物學和遺傳學揭示睡眠調控的必要分子:鈣調磷酸酶
餘建軍1,2,*,劉慧潔1,2,*,高瑞1,*,王濤1,2,*,李成鋼1,2,*,劉玉祥1,2,楊璐1,2,徐穎3,崔雲鳳2,賈辰熙3,黃娟1,陳鵬1,饒毅1,2,4,#
1Laboratory of Neurochemical Biology, Peking-Tsinghua Center for Life Sciences,Peking-Tsinghua-NIBS (PTN) Graduate Program, School of Life Sciences, Peking University, Beijing, China; Chinese Institute for Brain Research, Beijing (CIBR); Department of Chemical Biology, College of Chemistry and Chemical Engineering; School of Pharmaceutical Sciences, PKU-IDG/McGovern Institute for Brain Research, Peking University, Beijing, China.
2Chinese Institutes for Medical Research, Beijing (CIMR), Capital Medical University, Beijing, China.
3National Center for Protein Sciences Phoenix, Beijing, China.
4Lead contact.
摘要
傳統上,研究睡眠的機理依賴於電生理學和遺傳學。由於睡眠只能透過行為觀察和物理學手段在整體動物上測量,因此沒有透過生化和化學生物學方法來找到調控睡眠分子的先例。此前發現影響睡眠的蛋白激酶SIK3,其磷酸化位點對於功能很重要,我們以此為靶點,用生物化學和化學生物學的方法作為這項研究的起點。我們發現在小鼠的SIK3進行點突變後(將469位的蘇氨酸變為丙氨酸,T469A),突變小鼠的睡眠增加。我們使用了生化純化和光交聯兩個方法,卻殊途同歸地發現,鈣調磷酸酶(簡稱CaN)無論在體外和體內還是體內,都能去除SIK3T469(和S551位)的磷酸基團,但卻不影響SIK3T221位點的磷酸化。降低腦內CaN調節亞基的的基因表達量後,小鼠每晝夜睡眠時間減少5個小時以上,變化幅度超過所有已知的小鼠遺傳突變體。我們發現了CaN在小鼠睡眠中的關鍵生理作用,並開創了用生化純化和化學生物學揭示睡眠分子機理的有效途徑。
意義
睡眠的重要性不言而喻,但其分子和細胞機制仍然是個謎。包括我們在內的科學家已用遺傳學方法在果蠅和小鼠中尋找參與睡眠調控的基因。但是在本研究中,我們率先應用生化和化學生物學方法來揭示睡眠調節的機理。我們發現鈣磷酶(CaN)控制SIK3 去磷酸化有位點特異性:可以作用於兩個調節位點,但不能作用於酶活性所需的位點。用分子生物學方法降低CaN 會降低睡眠個多小時,這是在遺傳突變小鼠身上觀察到的最顯著睡眠表型。這項研究揭示了睡眠調節中的蛋白磷酸酶蛋白激酶途徑,彰顯了生化純化和化學生物學方法作為研究大腦功能有效技術的價值。
本研究利用培養細胞進行蛋白質分離純化,腦組織光交聯,質譜分析腦內磷酸化蛋白組,發現磷酸酶對同一個蛋白質上不同位點的高度選擇性去磷酸化,在體外用細菌表達的蛋白質重組磷酸酶活性,同時用了4種基因修飾小鼠、兩種病毒介導的基因敲低的小鼠,密切結合分子生物學、生物化學、遺傳學和腦電圖記錄而闡明基因與睡眠的關係。
引言
睡眠是動物的重要生理過程1,受晝夜節律和穩態過程的調節2,3。事實證明,在果蠅、小鼠、狗和人類身上採用遺傳學方法能有效發現調節睡眠的基因4-10。例如,發現了食慾素及其受體在維持覺醒方面的作用11-13,以及鹽誘導激酶3SIK3)在調節睡眠方面的作用14
由於睡眠只能在動物身上測量,而不能在分子上測量,因此我們最初和本領域的其他研究人員一樣,都是依靠電生理學和遺傳學來發現果蠅和小鼠睡眠分子和機理。
在評估了這些策略的優勢和侷限之後,我們決定嘗試同時將經典的生物化學純化方法和現代的化學生物學途徑用於研究睡眠調控機制。我們的第一個目標底物是 SIK314Yanagisawa14,20,21和我們自己18,19發現其特異位點磷酸化對睡眠調控非常重要。此前我們發現SIK3的特異磷酸化位點可指示睡眠需求並參與睡眠調節19,因此我們使用SIK3蛋白作為底物,並對其調節因子進行生化鑑定,然後再在體內測試這些體外發現的磷酸化調節因子是否也能在體內調控睡眠。
蛋白質磷酸化水平在不同的睡眠覺醒相關狀態中有所不同22-25。哺乳動物的睡眠被認為涉及蛋白激酶 APKA26-30、細胞外訊號調節激酶(ERK31-33、單磷酸腺苷(AMP)啟用蛋白激酶(AMPK34-36鈣(Ca2+/鈣調蛋白(CaM)激酶 IICaMKIIab37-39c-Jun N 端激酶(JNK40SIK3 21419-21以及肝臟激酶 B1LKB11841-43CaMK2b基因敲低的小鼠被報道每24小時的睡眠時間減少了120分鐘以上38,超過了其他已知的基因突變小鼠9,12-14,18-21,27,30,33,39,44-53
蛋白磷酸酶(PPases)是否參與哺乳動物睡眠知之甚少。1970 年代發現一種蛋白質54-56被命名為鈣調磷酸酶(也稱鈣神經蛋白,calcineurin, CaNPP2PPP357 ,到1980 年代確定其作為磷酸酶的功能58,59CaN是唯一由鈣離子(Ca2+)和鈣調素(CaM)啟用的磷酸酶,由二聚體組成,具有催化亞基A三種之一(PPP3CAPPP3CBPPP3CC)和調節亞基B兩種之一(PPP3R1PPP3R256,60PPP3CAPPP3CB PPP3R1 表達的組織器官較為廣泛,而PPP3CCPPP3R2則在睪丸中特異表達61-65。在腦中,PPP3CA 是含量最高的催化亞基,PPP3R1 是含量最高的調節亞基。
本項工作中,我們在確定了SIK3469位點蘇氨酸(T469)磷酸化的重要性後,再開始尋找 SIK3的磷酸酶。雖然小鼠SIK1SIK2中與SIK3絲氨酸(S551 同等位點的缺失會導致與SIK3 S551A相同的功能增益(gain of function, GOF)表型21,但我們發現Sik1Sik2基因的缺失不影響小鼠的睡眠19。因此,我們重點研究Sik3PKA磷酸化SIK3 T469S551位點後促進SIK314-3-3蛋白的相互作用66。生化上,14-3-3蛋白抑制SIK3活性,而T469S551 的缺失增加了 SIK3 的訊號轉導66T469磷酸化的體內生理學功能意義尚不清楚。在此,我們將小鼠SIK3T469突變為丙氨酸(A)(T469A),發現它導致小鼠睡眠增加。
我們採用了兩種途徑尋找去磷酸化SIK3T469S551的磷酸酶:從人胚胎腎臟(HEK293T細胞中用經典生物化學純化T469S551的磷酸酶,以及在小鼠腦中用化學生物學光交聯尋找與SIK3相互作用的蛋白。都找到了CaN的催化亞基PPP3CA。進一步體外生物化學重組實驗表明,在 Ca2+CaMPPP3R1的存在下,PPP3CA可去除T469S551的磷酸基團。PPP3CA 不能去除T221的磷酸基團,後者的磷酸化增強SIK3的激酶活性,並促進睡眠,且其水平可以反應睡眠需求19。在體外培養的HEK293T細胞中,敲除PPP3CAPPP3CB  PPP3R1,可以抑制鈣離子誘導的 T469S551(而非 T221)去磷酸化。在鼠腦透過分子生物學敲除PPP3CAPPP3R1時,鼠腦中 T469  S551 的磷酸化水平增加,T221的磷酸化不受影響。敲除PPP3CA 基因在 24 小時內減少睡眠約 3小時(187.6±13.0分鐘)。敲除PPP3R1基因減少5小時以上(349.3±21.5分鐘),超過了所有已知小鼠遺傳突變體的睡眠變化。從睡眠變化的程度來看,CaN是迄今為止發現的最重要的睡眠調節因子。我們成功地利用生化純化和化學生物學發現了重要的睡眠調控分子,顯示了遺傳學外,還有生物化學和化學生物學對睡眠研究有巨大潛力。
結果
T469在調節小鼠睡眠中的功能意義

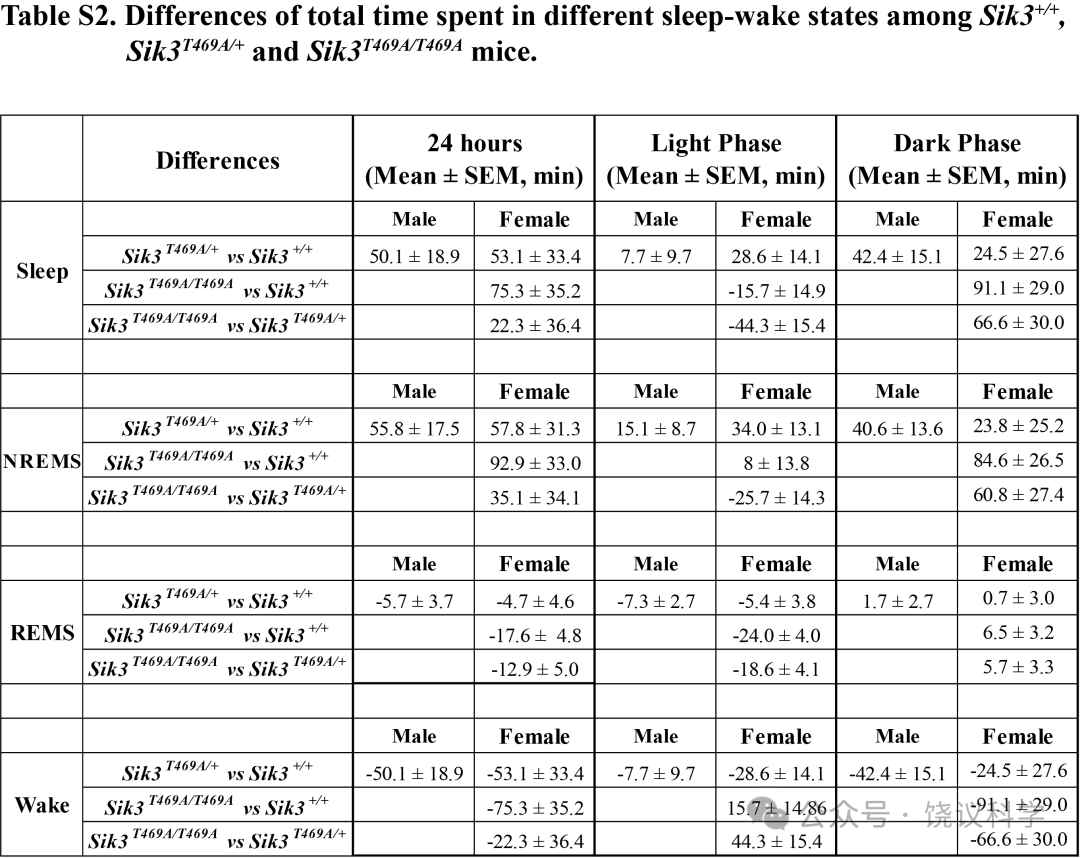

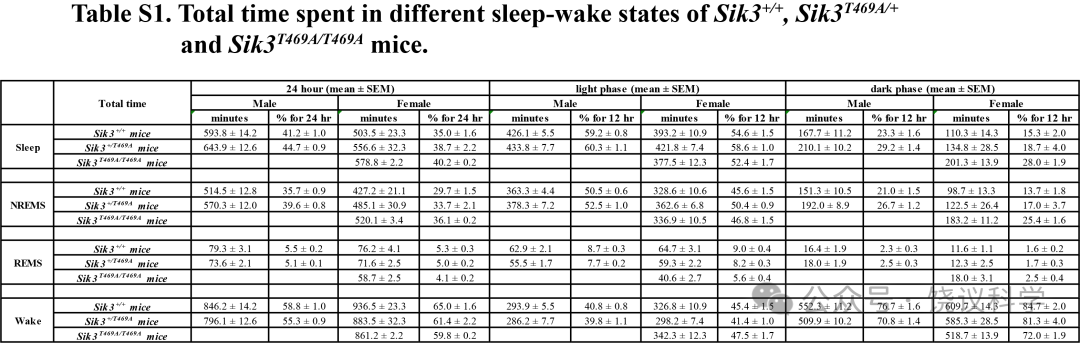

我們首先構建了一株攜帶 T469A 點突變的小鼠品系(圖 1S1-S4、表 S1  S2)。睡眠通常是在雄性小鼠中測量。由於基因型為Sik3T469A/T469A的點突變純合體雄性小鼠胚胎致死,我們比較了兩種基因型(Sik3+/+野生型純合體和Sik3T469A/+點突變雜合體)的雄性小鼠睡眠表型。我們還研究了所有三種基因型(Sik3+/+Sik3T469A/+Sik3T469A/T469A點突變純合體)雌性小鼠的睡眠表型(圖S3S4,表S1S2)。雄、雌小鼠的睡眠表型在趨勢上相似,雌性Sik3T469A/T469A點突變純合體的表型強於雄性 Sik3T469A/+點突變雜合體,在總睡眠和非快速眼動睡眠(NREMS)方面分別相差25.2分鐘和 37.1分鐘(表S2,雌性Sik3T469A/T469ASik3+/+之間的睡眠增量與雄性 Sik3T469A/+Sik3+/+之間的睡眠增量)。
圖1

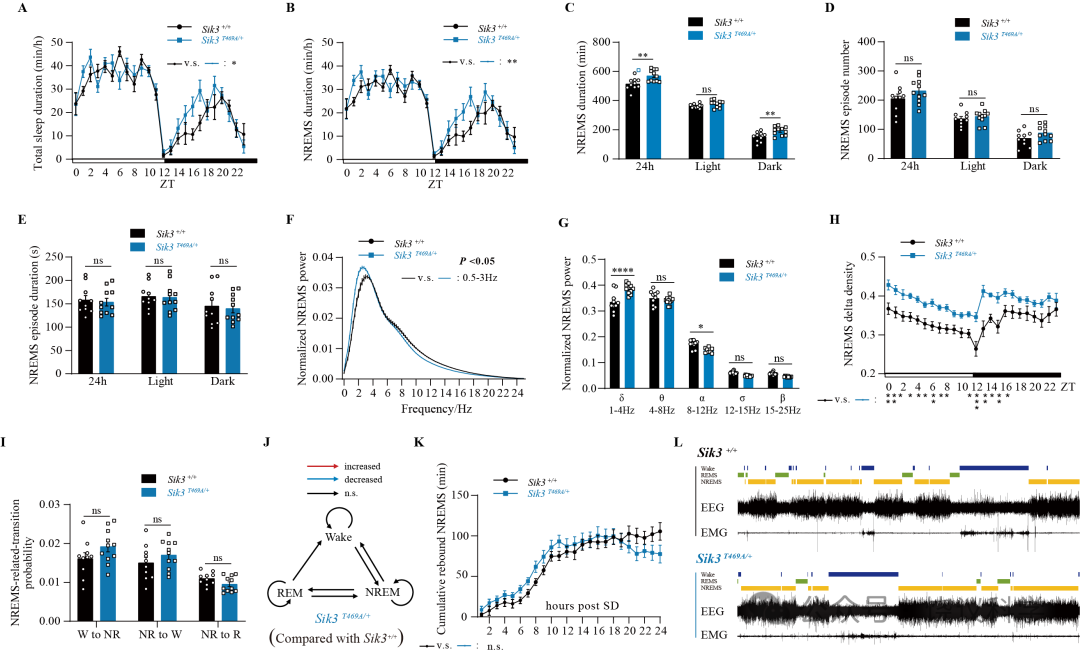

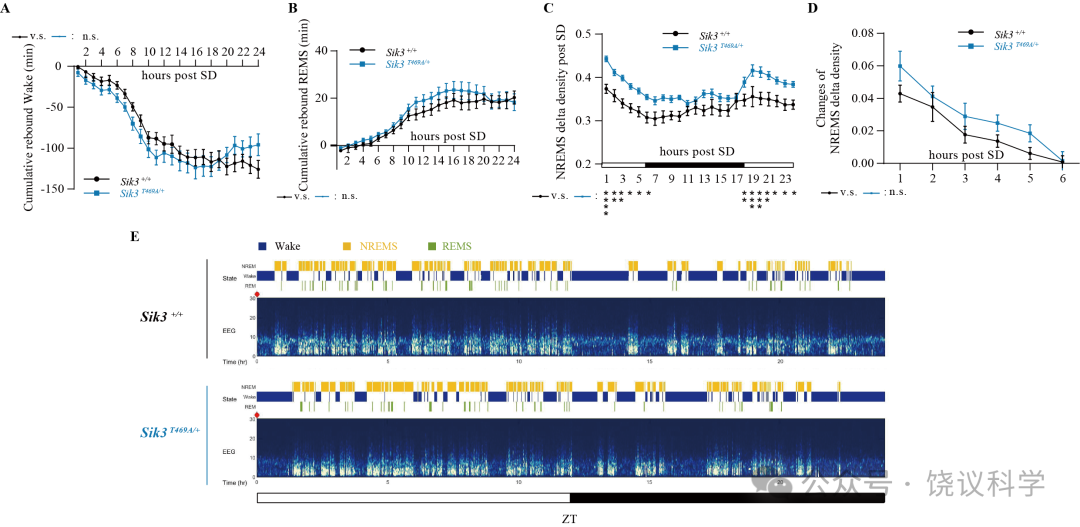

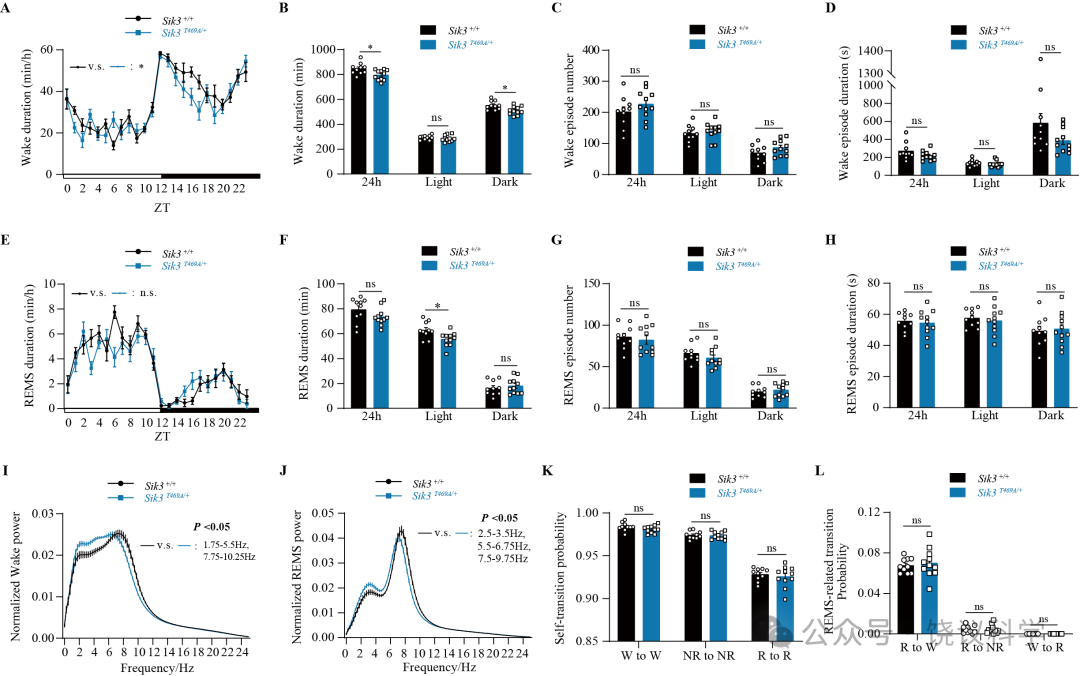

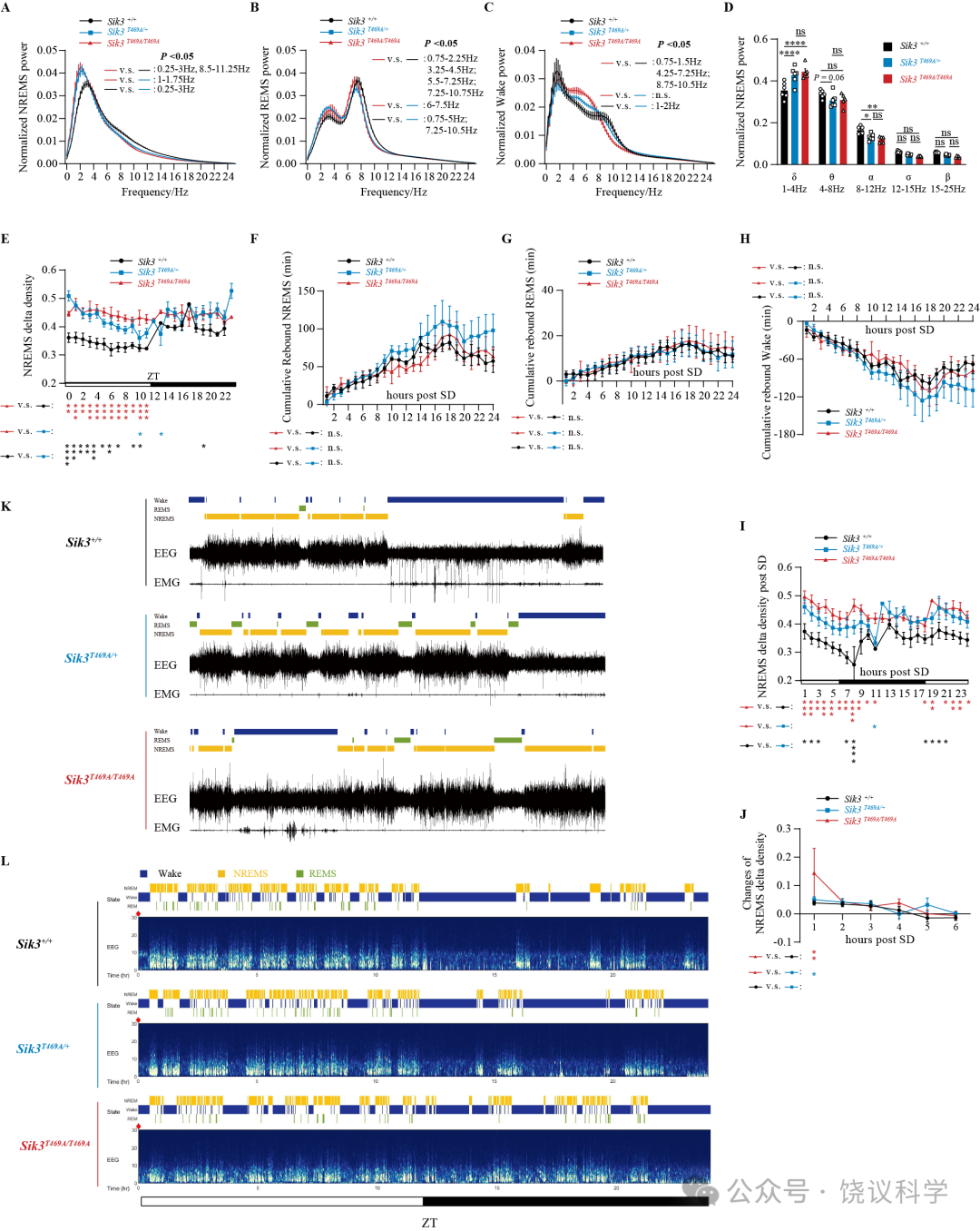

代表性腦電圖(EEG)和肌電圖(EMG)見圖 1L,典型的腦電熱圖見圖 S2E。與 Sik3+/+相比,Sik3T469A/+雄性24 小時內總睡眠時長以及非快動眼睡眠(NREMS )持續時間增加,尤其是在暗期(圖1A1B1C,表S2)。NREMS發生次數和單次持續時間均無明顯變化(圖1D1E)。快速眼動睡眠(REMS)在Sik3T469A/+Sik3+/+雄性之間無顯著差異(圖S1 E-H,表S2)。腦電圖的功率譜在δ波段增加、α波段減少(圖1F1G)。透過NREMS δ波功率密度測量的睡眠需求在Sik3T469A/+雄性顯著增加267-70(圖1H)。

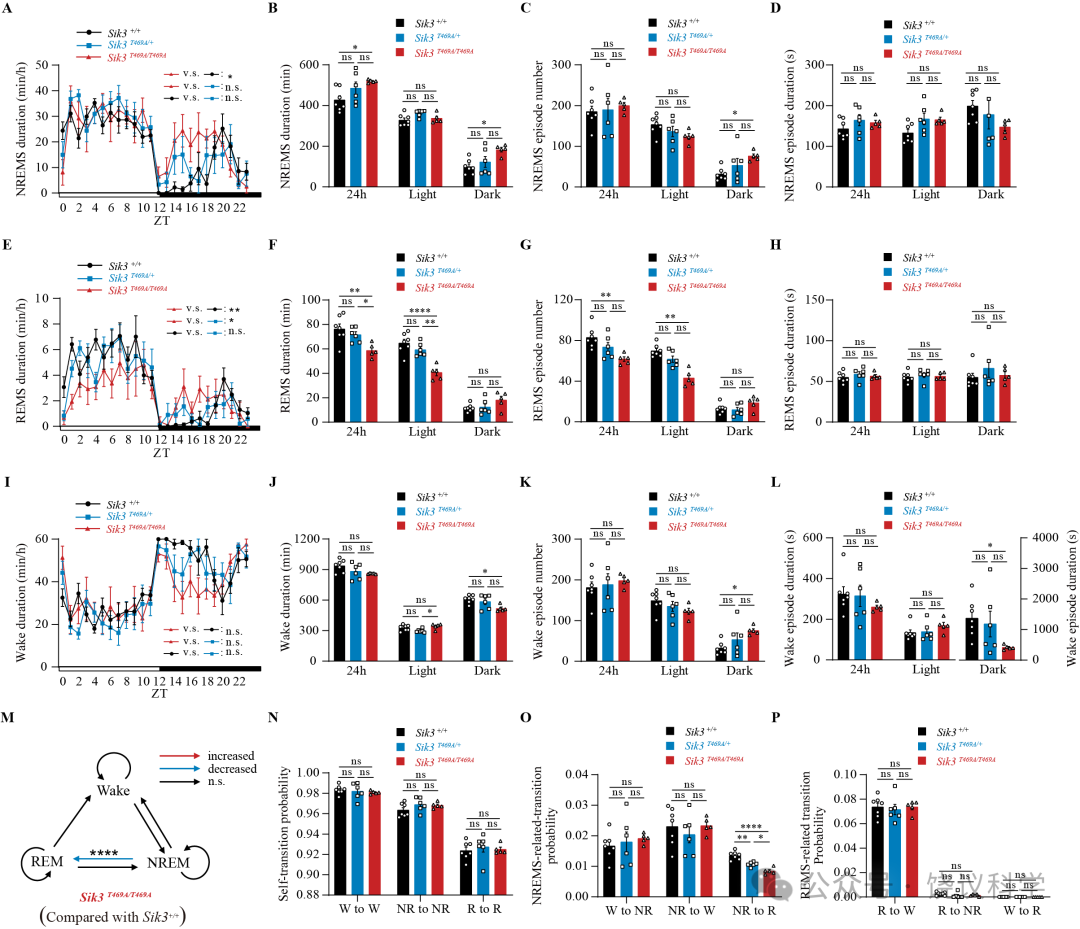

Sik3T469A/T469A在暗期的NREMS時長顯著增加(圖S3A S3B,表S1S2),原因是NREMS發生次數增加(圖S3C),但單次持續時間無變化(圖S3D)。REMS時長在暗期沒有差異,但在亮期有所減少(圖S3ES3F,表S1S2),原因是REMS 發生次數減少(圖S3G)、單次持續時間無變化(圖S3H)。從NREMSREMS的轉換機率減少,而其他狀態間轉換機率沒有變化(圖S3 M-P)。與Sik3+/+雌性相比,Sik3T469A/T469ASik3T469A/+雌性的 NREMS δ波功率密度都有所增加(圖S4E)。

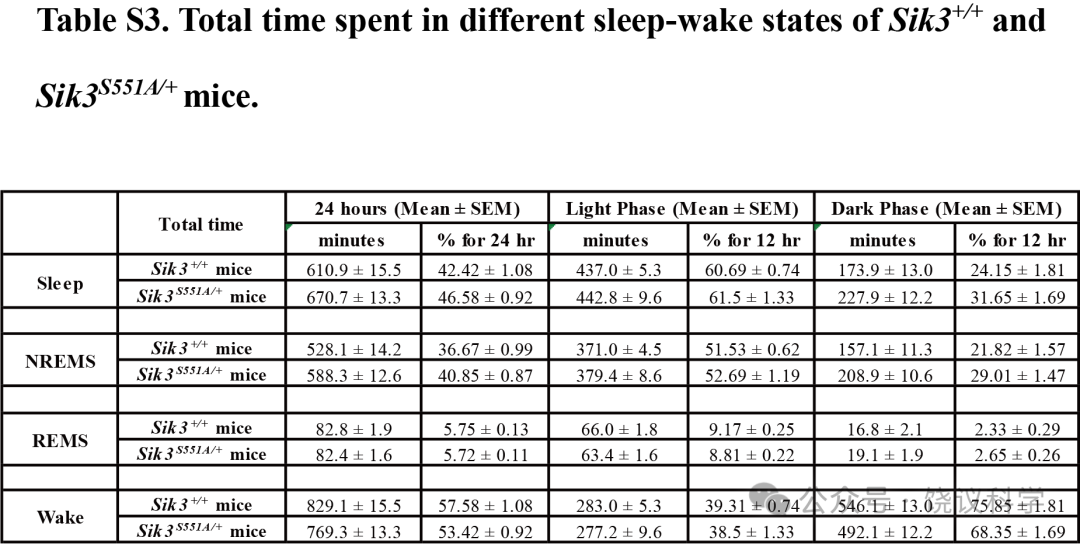

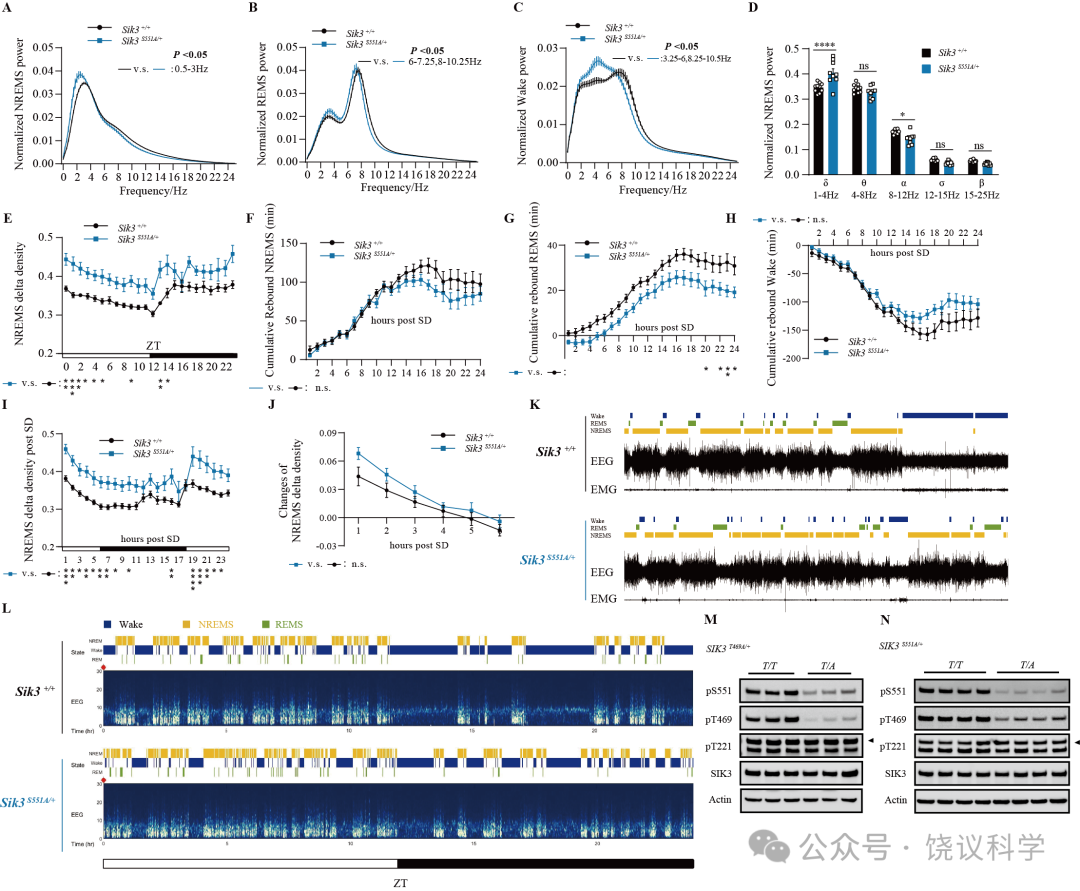

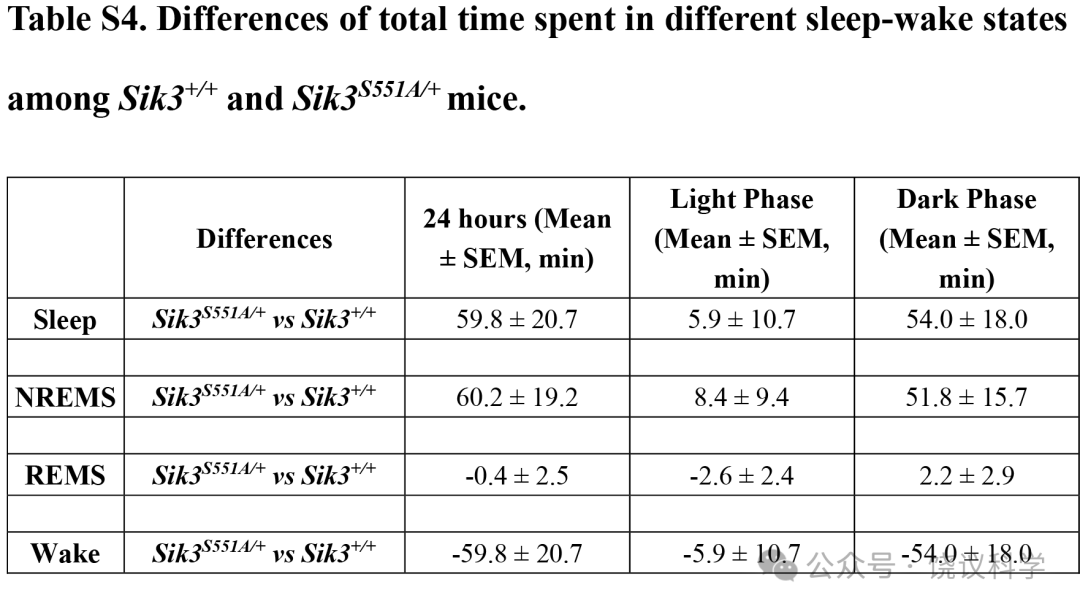

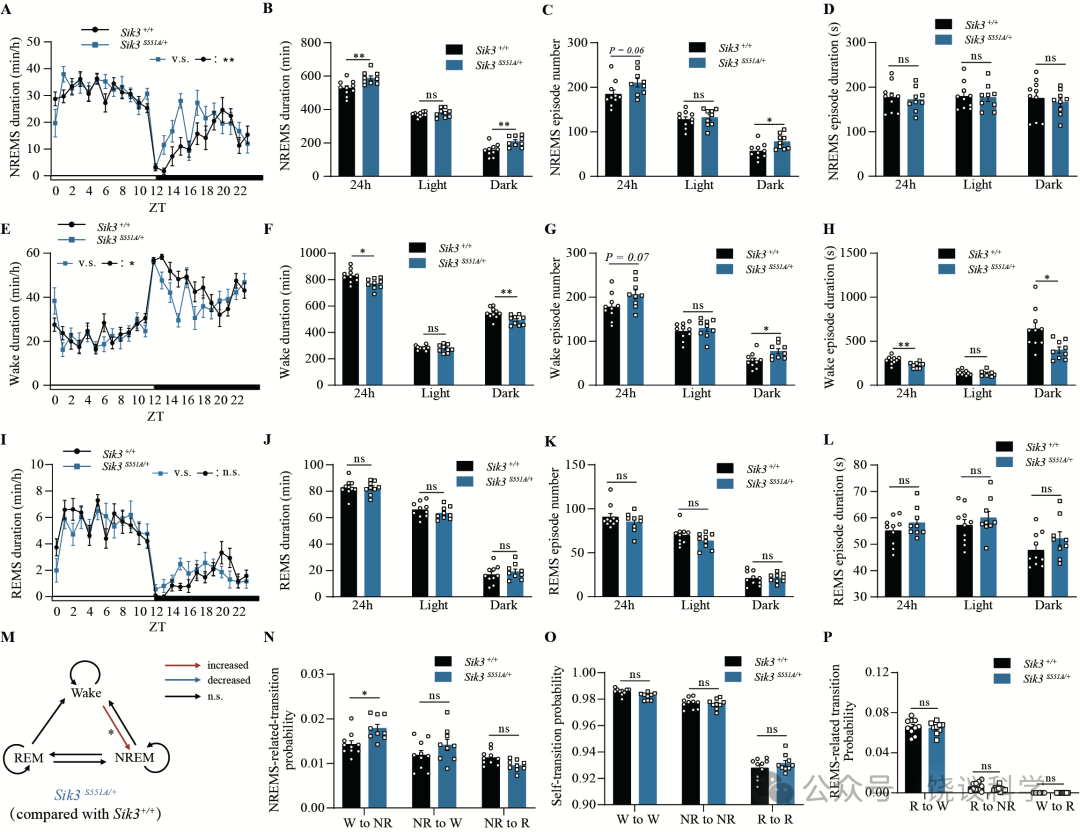

Sik3T469A/+雄性小鼠的睡眠表型與另一實驗室報道的Sik3S551A/+不同20。我們隨後構建了Sik3S551A/+突變小鼠。我們的Sik3S551A/+雄性小鼠表現出與 Sik3T469A/+雄性小鼠高度相似的睡眠表型,即在暗期NREMS 持續時間和δ功率密度增加(圖S5A-BS6E、表S3S4),但清醒(Wake)至 NREMS的過渡機率和睡眠剝奪(sleep deprivation, SD)後REMS 反彈降低(圖S5M、圖S6G)。在生化上,我們發現T469A  S551A點突變會降低另一個位點的磷酸化水平(圖S6MS6N)。

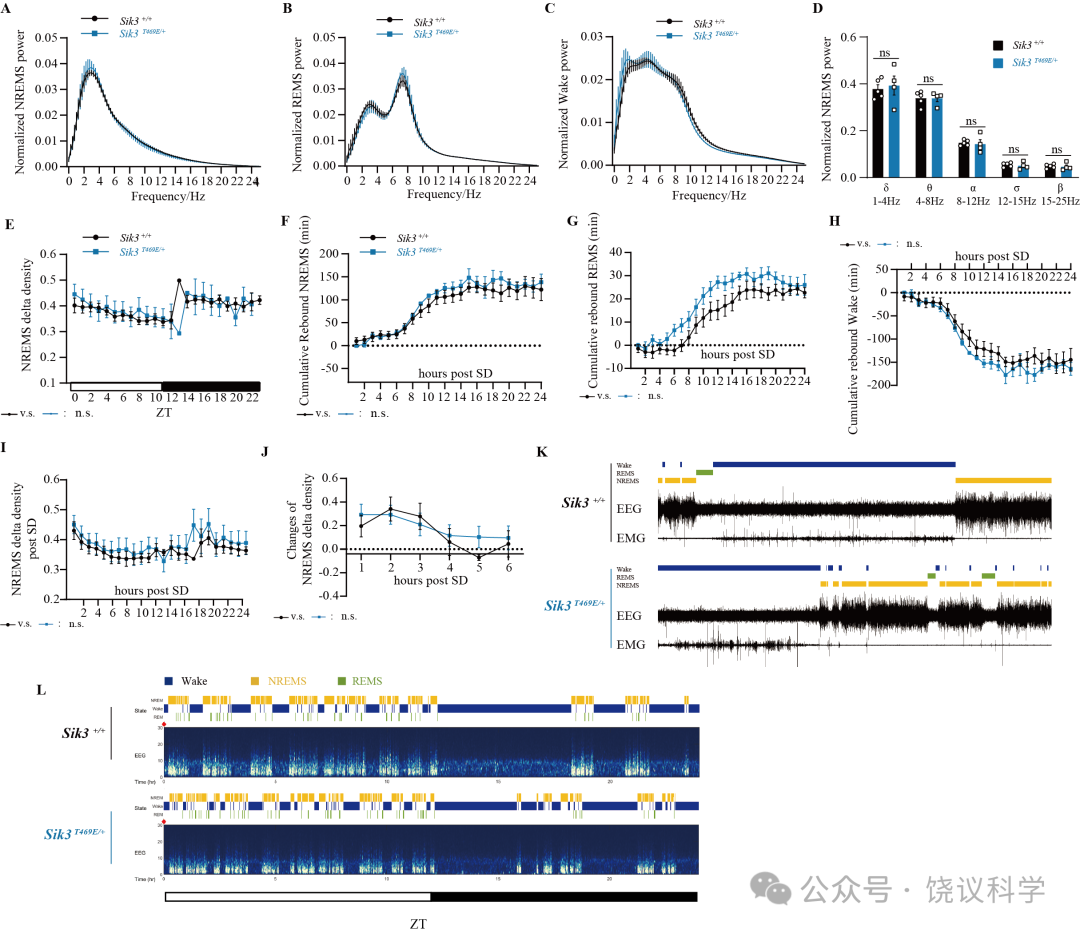

我們也構建了Sik3T469E/+點突變小鼠,但沒有觀察到任何睡眠表型(圖S7S8)。
SIK3T469S551磷酸酶的生化純化
雖然 SIK3 功能喪失性突變(loss of function, LOF)和GOF小鼠突變體只表現有限的睡眠表型,但 SIK3 的上游或下游可能存在更重要的調節因子。為研究這種可能性,我們從 HEK293T 細胞中純化了其上游磷酸酶,使用SIK3  T469  S551 位點的去磷酸化程度作為磷酸酶的活性指標。我們從 HEK293T 細胞中純化能使 SIK3 T469  S551 位點去磷酸化的磷酸酶(圖2)。
圖2

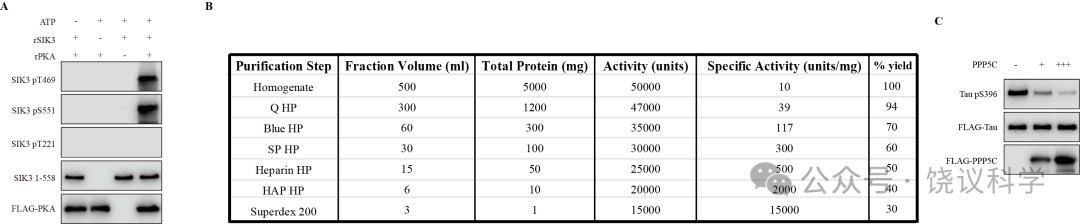

我們先用大腸桿菌(E. coli)合成並純化的重組 SIK3 蛋白證實了抗SIK3 T469  S551磷酸化形式抗體的特異性(圖S9A)。

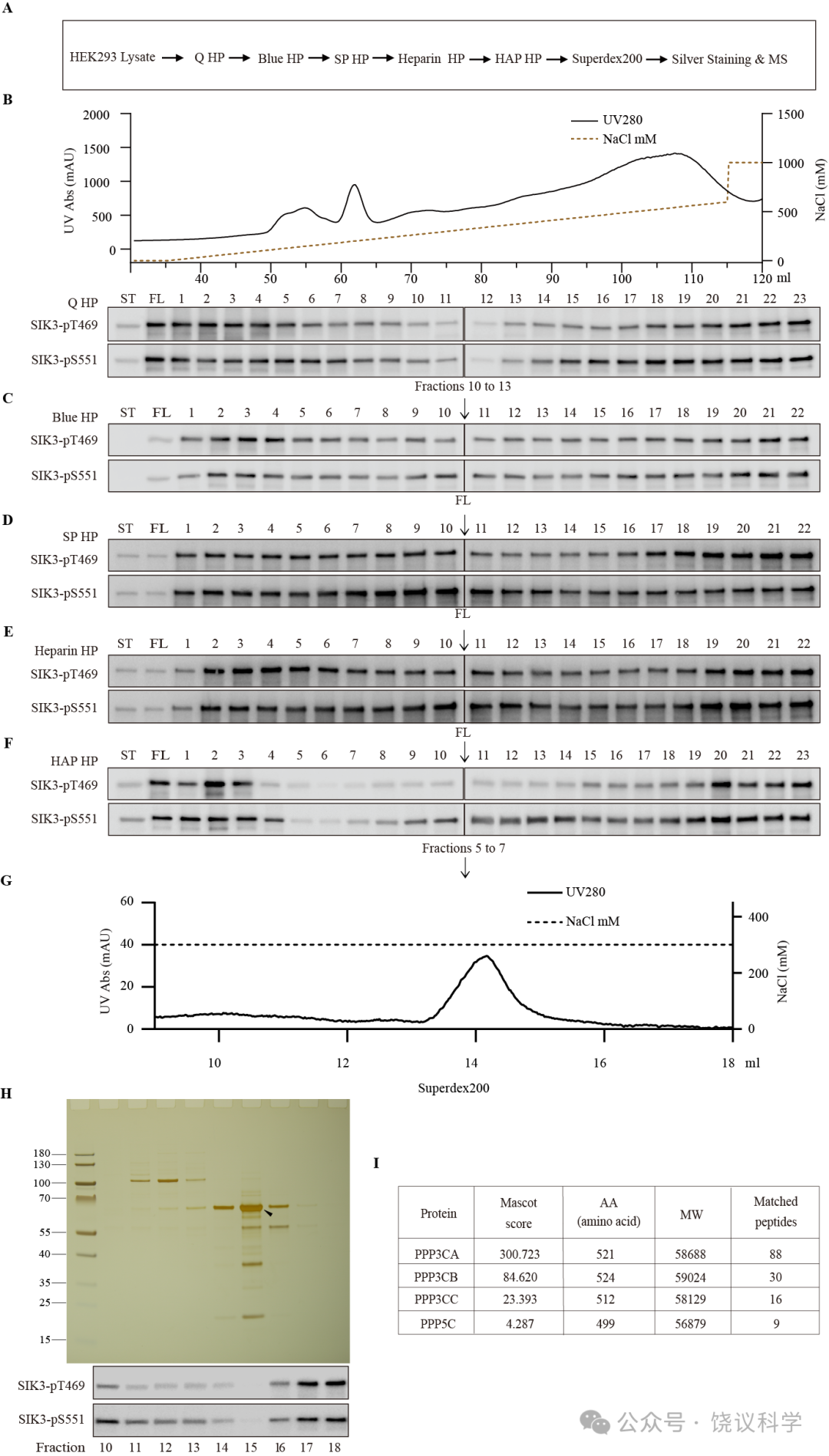

隨後,我們裂解了 HEK293T 細胞,並將含500 mg總蛋白的細胞裂解液(濃度為 10 mg/ml)依次在 Q HPBlue HPSP HPheparin HPHAP HPSuperdex 200 色譜柱上分餾(圖2A)。每一步都從每個餾分中抽取相等組分檢測T469  S551的磷酸酶活性。將一個步驟中的活性餾分合並,並在下一個色譜柱上進一步分餾。因此,Q HP 柱的10 13號餾分、Blue HP 柱的流過(FL)餾分、SP HP 柱的FL餾分、heparin HP柱的FL餾分以及 HAP HP 柱的 5  7 號餾分被分別裝載到下一個色譜柱上(圖2B-G)。
在純化過程中,我們觀察到針對T469S551的磷酸酶活性高度相關(圖2B-F),而且在每一步純化之後,整體磷酸酶活性都有所提高(圖S9B)。
將來自Superdex 200柱的1018號餾分透過銀染檢測蛋白含量(圖2H)。其中餾分15含有最強的磷酸酶活性,從中切取一條箭頭所示的條帶進行質譜(MS)分析,最後我們檢測到四種磷酸酶:PPP3CAPPP3CBPPP3CC  PPP5C(圖2I)。
發現PPP3CA是小鼠腦內SIK3的相互作用蛋白

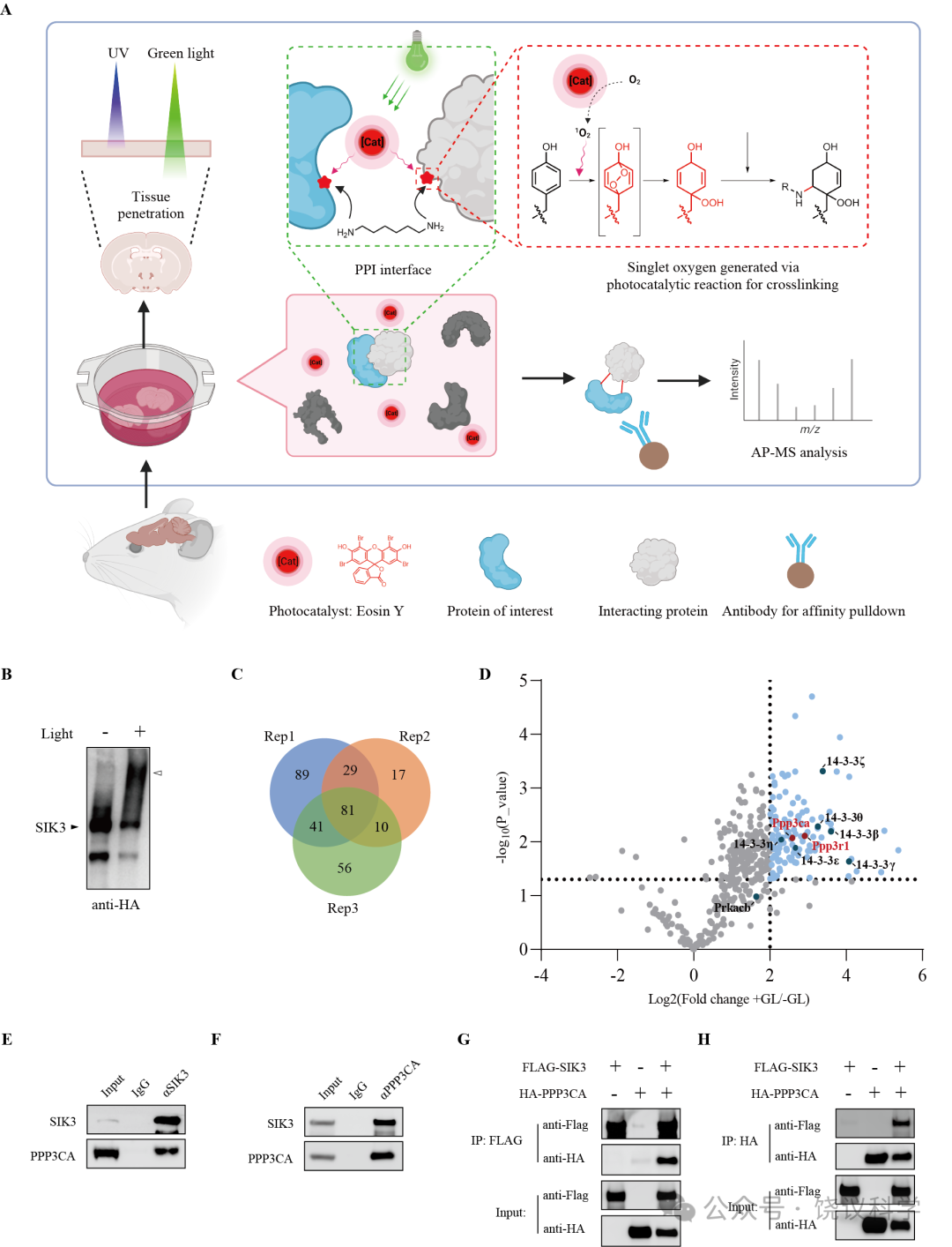

為研究小鼠大腦中的內源蛋白相互作用,我們(陳鵬和高瑞)發明了光交聯方法來尋找與SIK3相互作用的內源蛋白。與神經元培養物或細胞裂解液相比,腦切片能更好地儲存原位蛋白質互作網路。在目前研究蛋白質蛋白質相互作用(protein-protein interactions, PPIs)的方法中,透過光照共價捕獲相互作用蛋白的光交聯策略因其良好的時間解析度和低於化學交聯的細胞毒性而被認為是在活體系統中更受歡迎的方法。然而,將光交聯試劑加入感興趣的蛋白質通常依賴於遺傳密碼擴增策略,即設計相應的tRNA合成酶以插入可光啟用的非天然氨基酸71,或透過代謝過程插入含有氨基酸類似物的可光啟用分子72-74,而這兩種方法都很難在組織中實現。此外,用於光交聯的傳統分子(如重氮啶和芳基疊氮化物)通常對紫外線照射敏感75,而紫外線具有高能光毒性,組織穿透力弱76。因此,在組織樣本中原位捕獲 PPI 的光交聯策略還鮮有報道。
基於之前的工作77,我們(陳鵬和高瑞)開發了一種光催化化學交聯(photocatalytic chemical crosslinkingPhotoCAX)策略,用於捕獲小鼠腦片中的 PPIs(圖 3A)。我們選擇eosin-Y作為光催化劑,1,6-diaminohexane作為連線劑。每種化合物都具有良好的溶解性,尤其是eosin-Y,被廣泛用於組織染色。eosin-Y 的最大吸收波長為517 nm,在綠光照射下會產生單線態氧(1O278,單線態氧會啟用某些氨基酸殘基(如酪氨酸)的側鏈,形成親電中間體,從而與胺彈頭形成共價連線79。我們的方法不需要轉染或基因修飾就能將光催化劑或交聯劑加入樣品中進行 PPI 捕獲。
我們隨後構建了SIK3-3xHA小鼠,其中 SIK3 蛋白的羧基末端標記了血凝素 (HA) 抗原決定簇80,以便我們能在光交聯後檢測與 SIK3-HA 相關的蛋白質。
我們在新鮮製備的 SIK3-HA 小鼠腦片中應用了 PhotoCAX 策略。樣品中加入eosin-Y  1,6-diaminohexane,然後用綠色 LEDGL)照射。透過免疫印跡分析驗證了SIK3相互作用組,其中+GL組出現了明顯的交聯條帶,表明探針被有效啟用(圖3B)。
圖3
在交聯組和非交聯組中,SIK3 蛋白都能被歐聯抗-HA抗體的磁珠所富集,交聯產生的相互作用組也能同時被拉下。為進一步分析蛋白質,我們在製備 MS 樣品時切除了分子量大於 SIK3 的條帶。在胰蛋白酶消化後,採用二甲基標記法對兩組蛋白質進行定量研究。如Venn圖(圖3C)所示,81 個蛋白質在三個獨立實驗中重複出現,且在 +GL 組中富集程度較高(富集倍數 +GL/-GL > 4, log2(+GL/-GL) > 2)。透過火山圖進一步分析富集結果(圖3D),其中只有 p < 0.05 3個重複中平均富集倍數超過4的蛋白質才被認為是 SIK3 的重要互作候選蛋白。作為陽性對照,我們檢測到了一些已知的 SIK3 相互蛋白,如 14-3-3蛋白。PPP3CA 及其相應的調控亞基 PPP3R1也被富集(圖3D)。
為證實SIK3PPP3CA在鼠腦中的相互作用,我們在免疫沉澱實驗中使用抗體富集SIK3,發現沉澱物中既有SIK3也有PPP3CA(圖 3E)。同樣,使用抗PPP3CA抗體處理鼠腦裂解液時,沉澱物中也發現了PPP3CA SIK3(圖3F)。將FLAG標記的SIK3HA標記的PPP3CA匯入HEK293T 細胞過表達時,SIK3PPP3CA的相互作用可在HEK293T細胞中再現(圖 3G, 3H)。
體外PPP3CAT469S551而非T221的去磷酸化作用
我們透過免疫沉澱從HEK293T細胞中富集過表達的被FLAG 標記的 SIK3,這種SIK3T221T469S551位點都已經被磷酸化。我們在HEK293T細胞表達和富集每個候選磷酸酶(PPP3CAPPP3CBPPP3CCPPP5CPPP3R1)。在PPP3R1存在時,SIK3T469S551可被PPP3CAPPP3CBPPP3CC去磷酸化。而PPP3CAPPP3CBPPP3CC不能去磷酸化T221。在相同條件下,PPP5C不能去磷酸化SIK3T469S551 T221(圖4A),但它能使Tau蛋白的S396位點去磷酸化(圖 S9C),表明PPP5C具有催化活性。

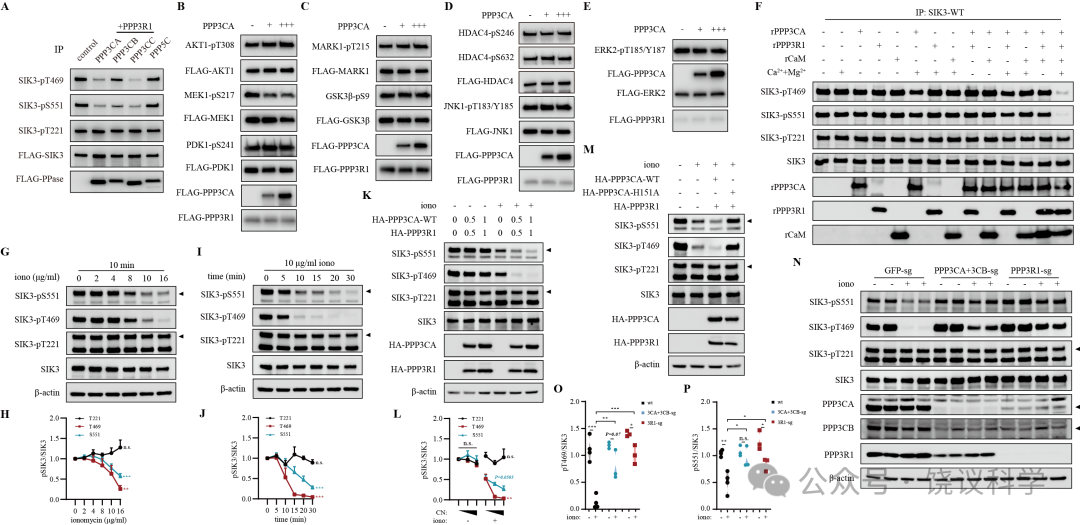

圖4
由於PPP3CAPPP3R1在腦中含量豐富,而PPP3CCPPP3R2在睪丸中含量豐富或特異表達61-65,81,因此我們重點研究PPP3CAPPP3R1
PPP3R1存在時,從HEK293T細胞富集純化的PPP3CA可去磷酸化MEK1S217,但不能去磷酸化AKT1T308PDK1S241MARK1T215GSK3βS9HDAC4S246S632JNK1T183/Y185以及 ERK2T185/Y187(圖4B-E)。因此,廣為流傳的所謂磷酸酶具有 “非特異性PPP3CA來說並不成立。
為排除從HEK293T細胞中富集純化的酶含有與磷酸酶相關其他蛋白質的可能性,我們在大腸桿菌中表達了CaMPPP3CAPPP3R1。我們發現,體外重組SIK3T469S551去磷酸化活性需要CaMPPP3CAPPP3R1Ca2+同時存在(圖4F)。
HEK293T細胞中,PPP3CA  PPP3R1SIK3 T469  S551(而非 T221)的去磷酸化作用
Ionomycin是一種鈣離子載體,可使Ca2+流入細胞。當對HEK293T細胞施用ionomycin時,ionomycin以劑量(圖4G-H)和時間(圖4I-J)依賴的方式使SIK3 T469S551(而不是 T221)去磷酸化。
PPP3CA/PPP3R1的過表達可以增強ionomycin誘導的T469S551的去磷酸化(圖4K-L)。過表達無活性的PPP3CA形式PPP3CA-H151A(組氨酸或 H 突變為 A)不影響T469S551的磷酸化水平(圖4M),但降低ionomycin的去磷酸化活性,表明該 LOF 突變體具有顯性負效應82
為研究ionomycin誘導的去磷酸化對CaN的依賴性,我們用sgRNAs 構建了 PPP3CAPPP3CB  PPP3R1 的單基因或雙基因敲除HEK293T細胞系。HEK293T細胞中PPP3CAPPP3CB 單基因敲除的表型不穩定。然而,在HEK293T細胞中,PPP3CA  PPP3CB 雙基因敲除或 PPP3R1 單基因敲除的表型穩定。PPP3R1 基因敲除或PPP3CA  PPP3CB 雙基因敲除抑制ionomycin誘導的T469S551(但不是 T221)的去磷酸化(圖4N-P)。
PPP3CAPPP3R1參與小鼠大腦中SIK3 T469S551(而非 T221)的去磷酸化

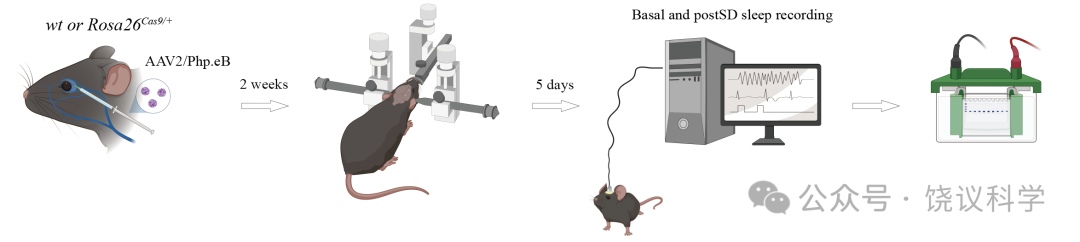

為研究它們在體內的作用,我們使用 CRISPR-Cas9 策略在小鼠腦中靶向敲除PPP3CAPPP3R1(圖S10)。對照組有兩種:WTCtrl是野生型(WT)小鼠,注射了靶向PPP3CAPPP3R1sgRNA表達病毒;eGFPCtr是表達Cas9的小鼠(RosaCas9/+),注射了靶向增強型綠色熒光蛋白(eGFP)的sgRNA表達病毒;PPP3CA基因敲除(PPP3CAKD)小鼠為RosaCas9/+小鼠注射AAV2/PHP.eB-CMV-mScarlet-PPP3CA-sgRNA-WPRE病毒而產生;PPP3R1KD小鼠為RosaCas9/+小鼠注射AAV2/PHP.eB-CMV-mScarlet-PPP3R1-sgRNA-WPRE病毒而產生。
圖5

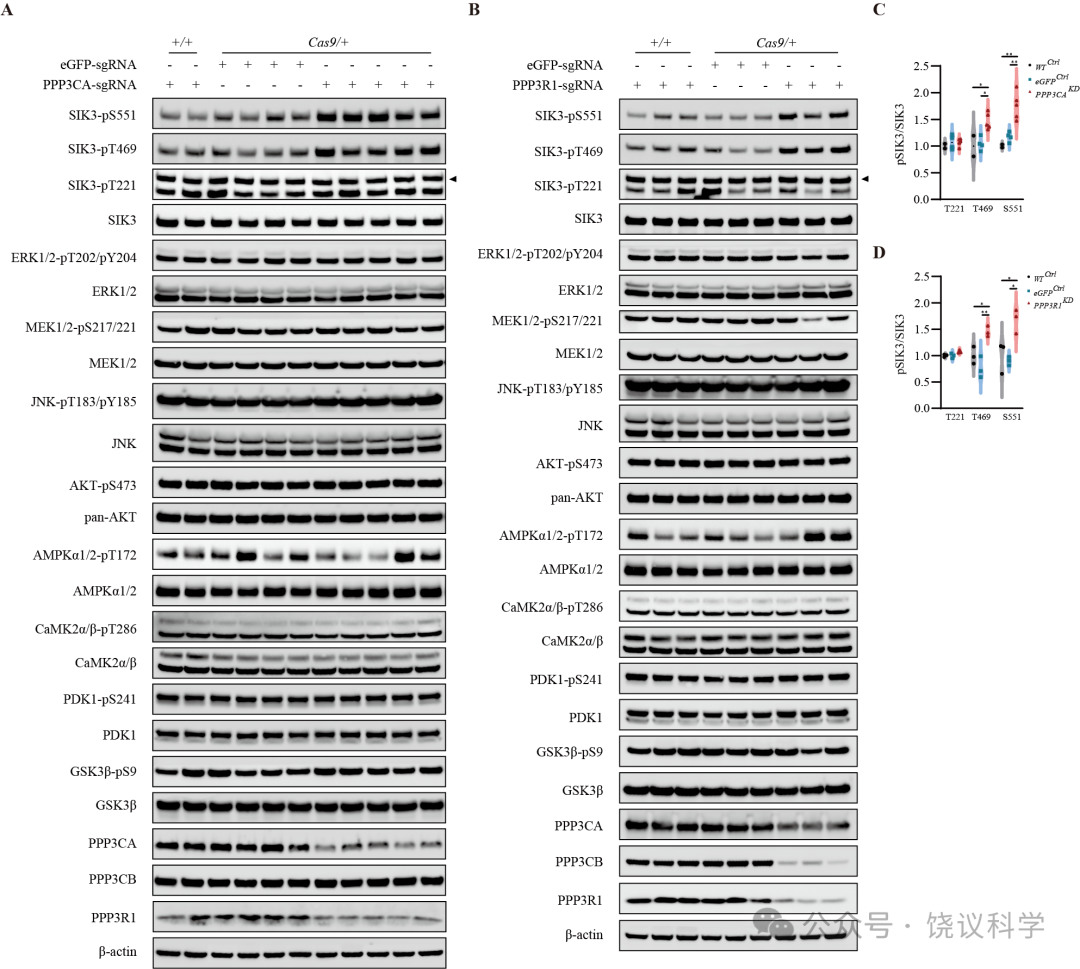

免疫印跡分析表明,靶向PPP3CAPPP3R1sgRNA降低了其蛋白水平(圖5)。PPP3CA被靶向時,PPP3R1蛋白也會減少(圖5A)。在 PPP3R1KD小鼠中,PPP3R1PPP3CAPPP3CB均減少(圖5B)。在鼠腦中敲除PPP3CAPPP3R1後,SIK3 T469S551的磷酸化均增加,但T221無變化(圖5A-D)。
敲除PPP3CAPPP3R1後,ERK1/2 T202/Y204MEK1 S217JNK T183/Y185AKT1 S473AMPKα T172CaMK2a/b T286PDK1 S241  GSK3β S9 等位點的磷酸化均無明顯變化(圖5A-B)。

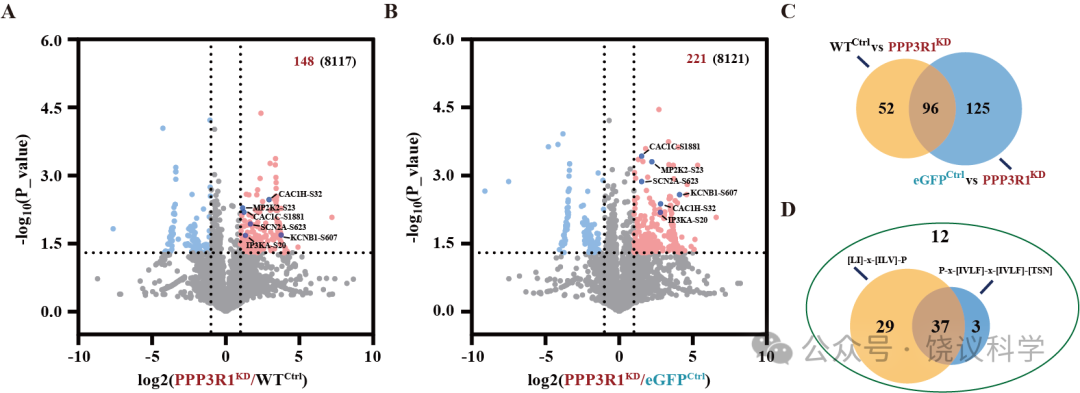

為進一步研究CaN的底物特異性,我們進行了磷酸化蛋白質組學分析。將 PPP3R1KDWTCtrleGFPCtrl對照組進行比較後發現,在81178121個已確定的磷酸化位點中,分別只有148個(1.82%)和221個(2.72%)位點的磷酸化水平出現了顯著上調(圖S11A-B)。在兩組比較中,96個相同位點的磷酸化水平上調,包括MP2K2IP3KA等激酶、CAC1CSCN2A等離子通道(圖S11C)。在合計81個蛋白質中發現了這些位點,其中 69 個至少含有兩個典型CaN底物結合基序之一(圖S11D)。
PPP3CA參與小鼠睡眠調控

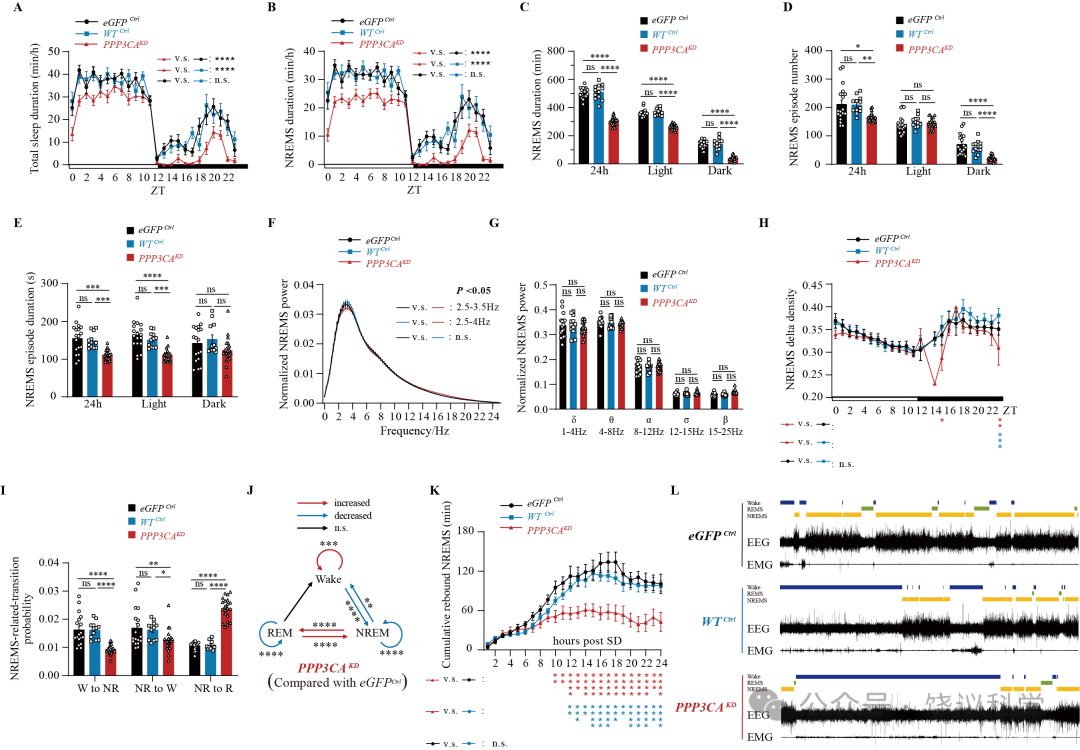

為了研究內源性PPP3CA在小鼠中的生理作用,我們分析了PPP3CAKD小鼠的睡眠表型,並將其與對照組(WTCtrleGFPCtrl)的表型進行了比較。EEGEMG的一般模式上,三種基因型無顯著差異(6L S13E)
圖6

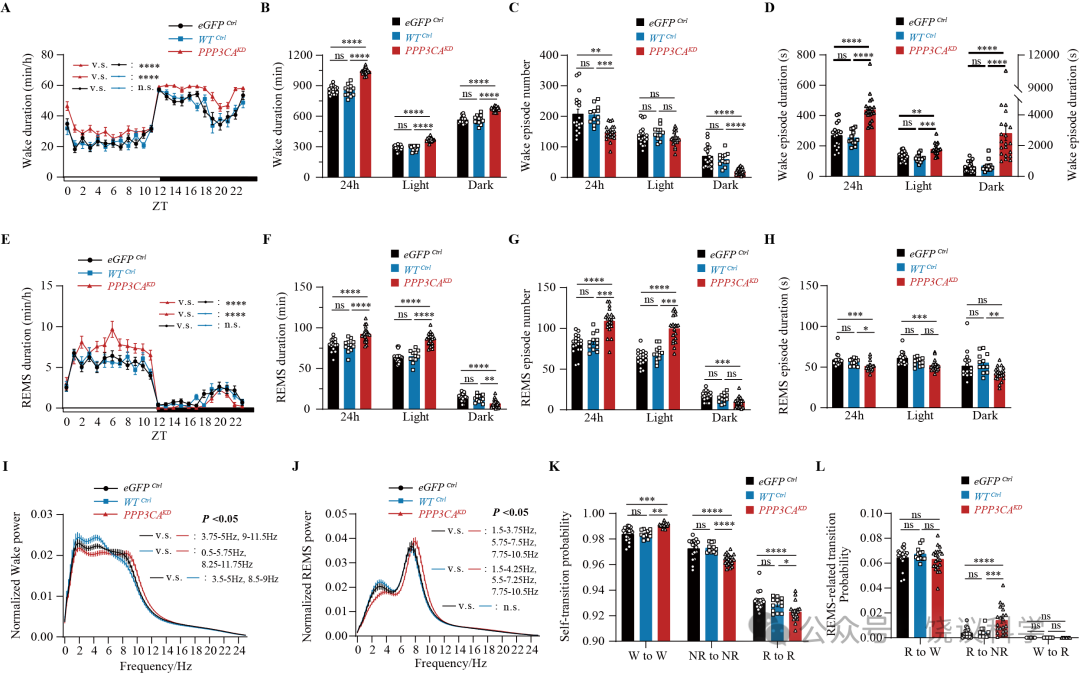

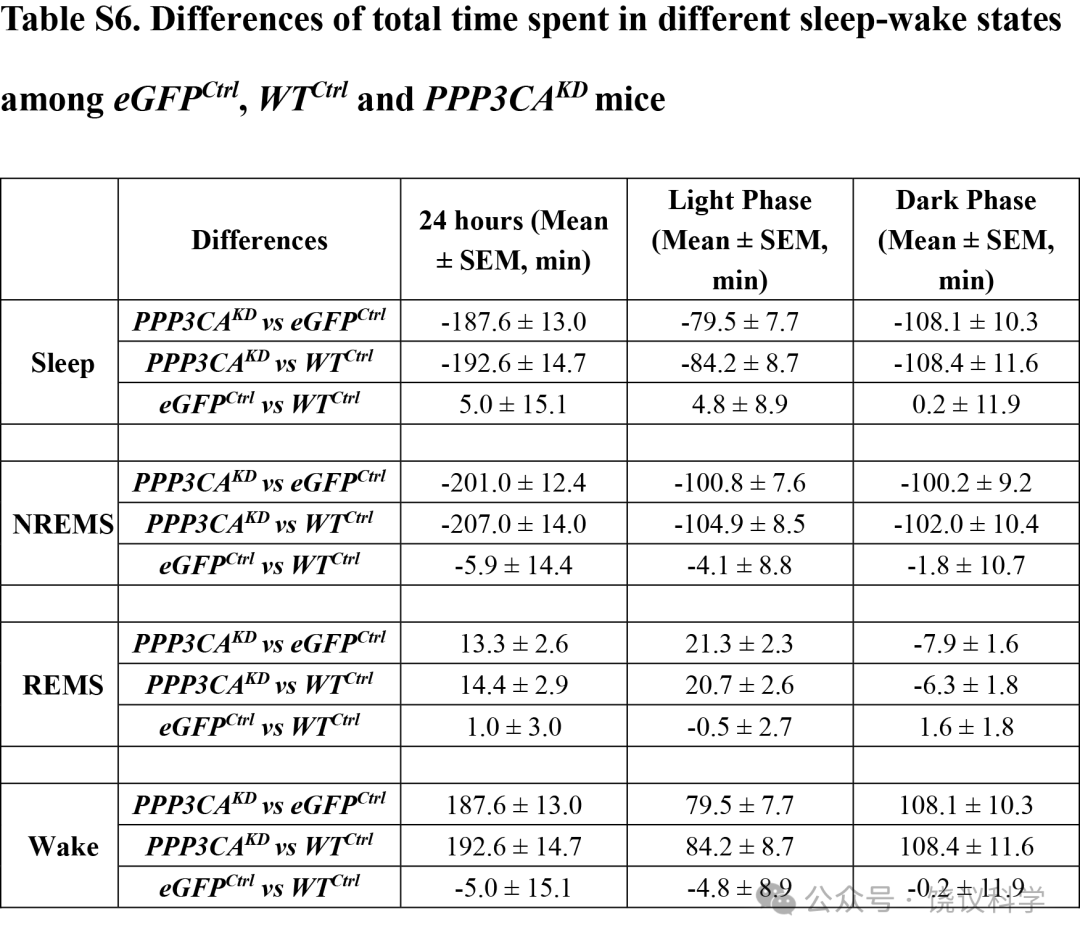

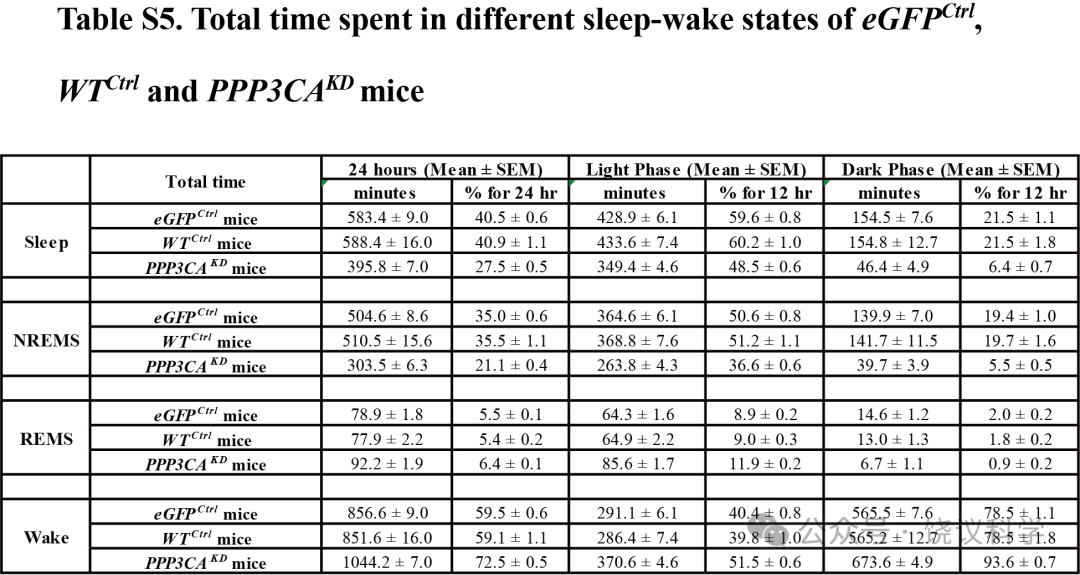

24小時內,PPP3CAKD小鼠的總睡眠時長比eGFPCtrlWTCtrl對照小鼠減少了大約3小時( 6AS12 A-D,  S5 S6)。在PPP3CAKD小鼠中,NREMS時長降低約204分鐘(6B-C,表S5S6)。在亮期,NREMS次數無變化(圖6D),但NREMS單次持續時間減少( 6E)在暗期,NREMS次數減少(圖6D),而單次持續時間無變化(圖6E)。
在亮期,REMS的時長變化較小且方向相反,與對照組相比,PPP3CAKD小鼠的REMS增加約13分鐘 (S12E-F)在亮期,REMS時長增加主要是因REMS次數增加(圖S12G),而REMS單次持續時間無變化 (S12H). 在暗期,REMS減少約6分鐘(圖S12E-F),主要因REMS次數(圖S12G)和單次持續時間(圖S12H)減少。
EEG功率譜分析僅在ZT15ZT23時段顯示NREMS δ波功率密度減少,而其他時間點未變(6F-H)REMSNREMS轉換機率增加,但WakeNREMS轉換機率減少 (6I-JS12K-L)

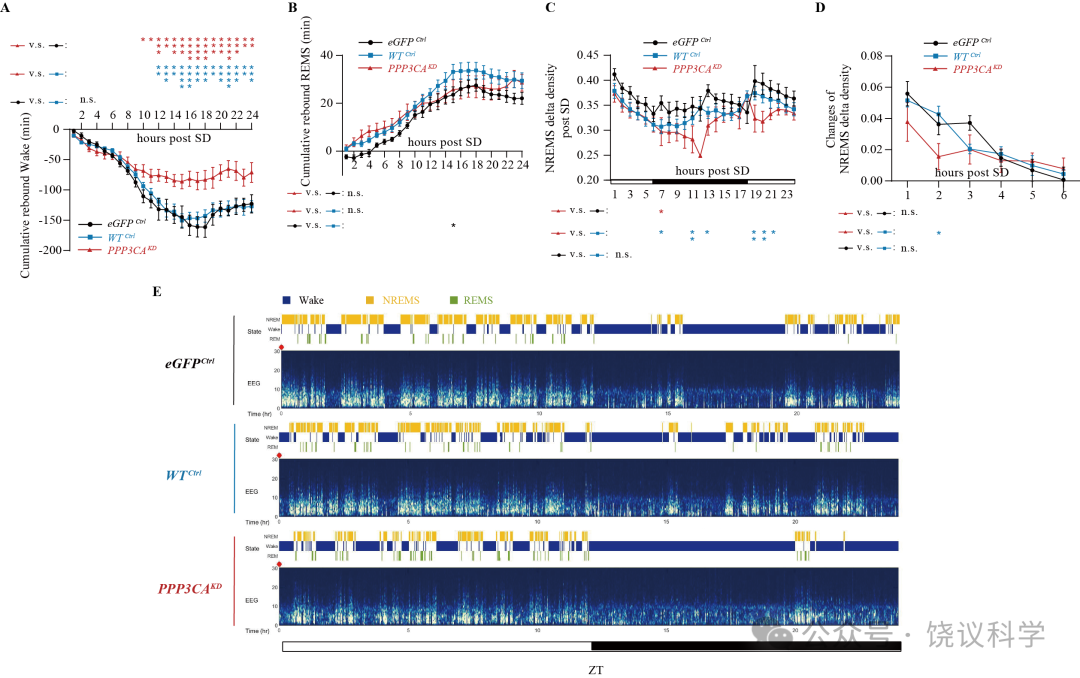

經過6小時的睡眠剝奪後,WTCtrleGFPCtrl小鼠的NREMS(圖6K)或總睡眠/覺醒時間(圖S13A)逐漸恢復,而PPP3CAKD小鼠在睡眠剝奪後的相應恢復顯著減少。 SDREMS的恢復在WTCtrleGFPCtrlPPP3CAKD小鼠之間沒有顯著差異 ( S13B)
PPP3R1參與小鼠睡眠調控

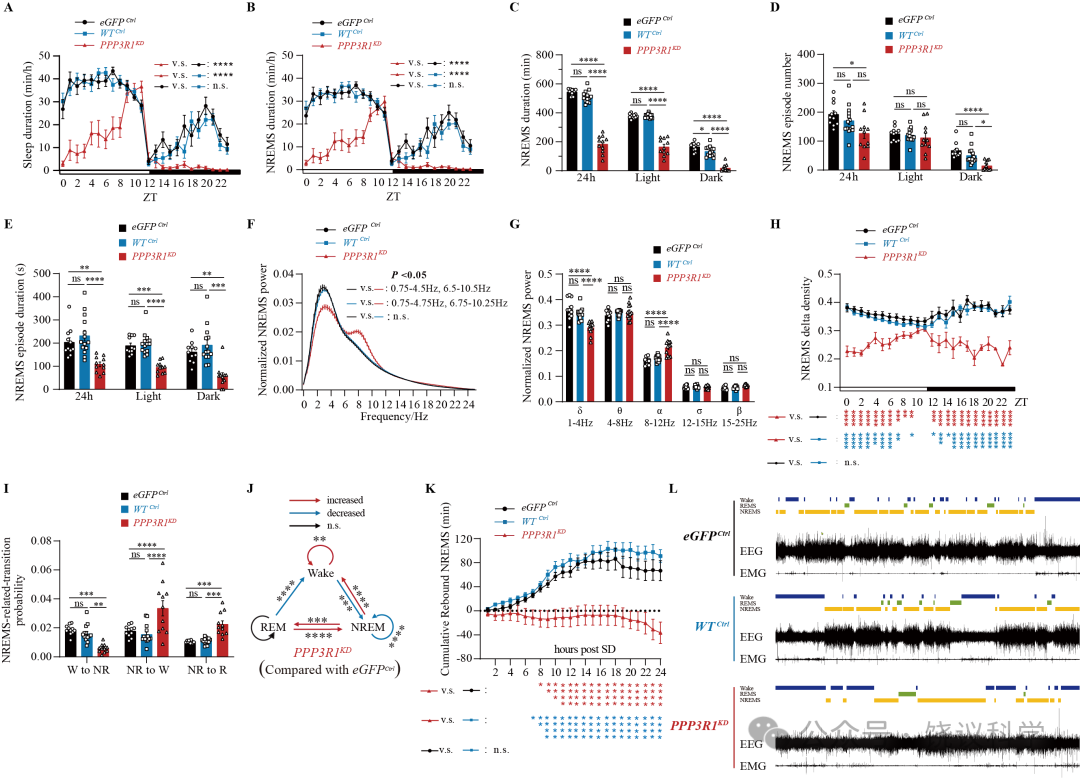

小鼠全腦的免疫印跡分析顯示,PPP3R1KD小鼠的PPP3R1蛋白表達顯著降低 (5B)。代表性的EEGEMG見圖7K,代表性的睡眠圖見圖S15J
圖7

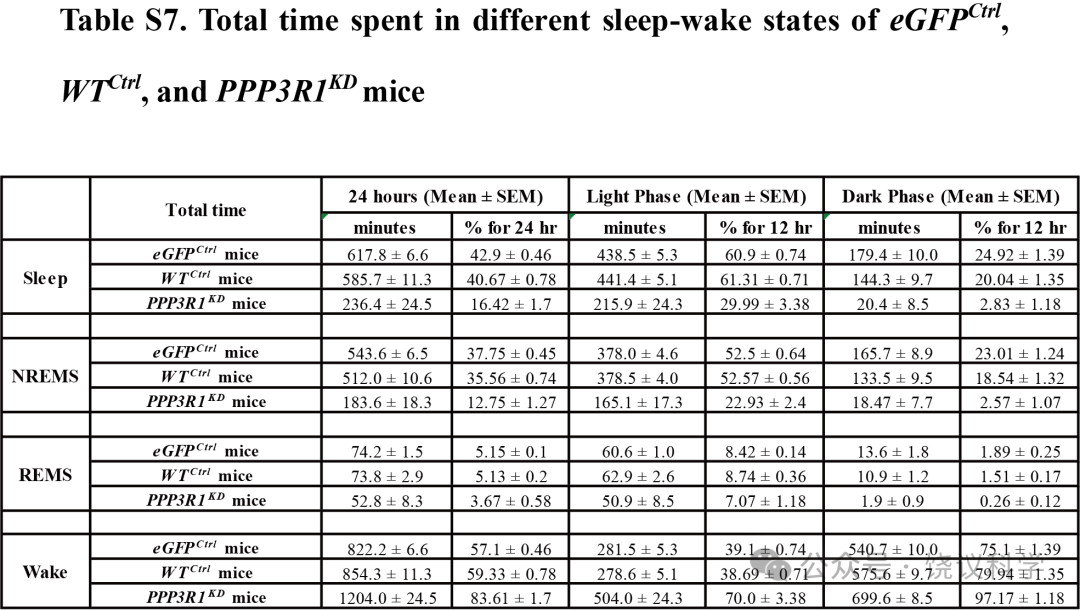

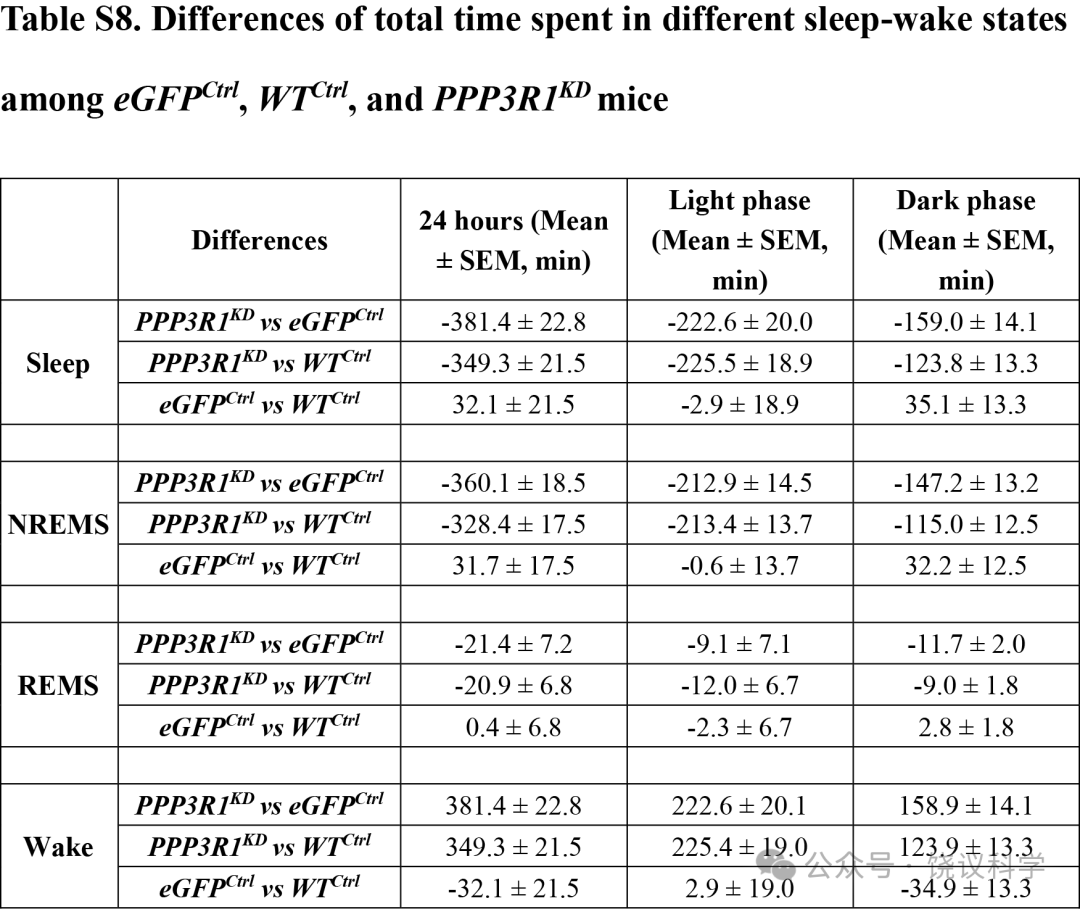

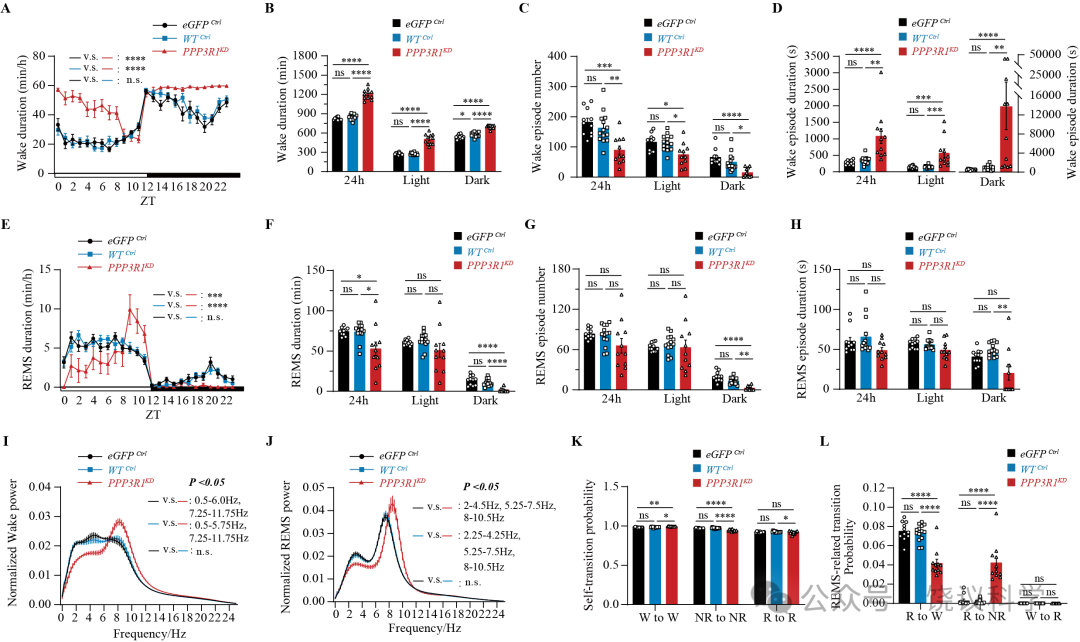

在每個ZT時段,除了光暗轉換前後的ZT 5PPP3R1KD小鼠的睡眠時長顯著減少,24小時內減少至少5小時(7A S14A-D, S7S8)。相比eGFPCtrlWTCtrl小鼠,PPP3R1KD小鼠的平均NREMS時長在整個24小時內減少344分鐘(圖7B-C和表S8),這因NREMS單次持續時間減少(圖7D),而次數未變 (7E)
在亮期,PPP3R1KD小鼠與eGFPCtrlWTCtrl小鼠的REMS無顯著差異,而在暗期,PPP3R1KD小鼠的REMS時長平均減少10.4分鐘,主要因REMS次數減少(S14E-H,表S7S8)
不同睡眠和清醒狀態之間的轉換機率(圖7J)來自圖7I和圖S14KS14L的資料。WakeNREMS和從NREMSNREMS的轉換機率降低,而從NREMSWake和從WakeWake的轉換機率增加。

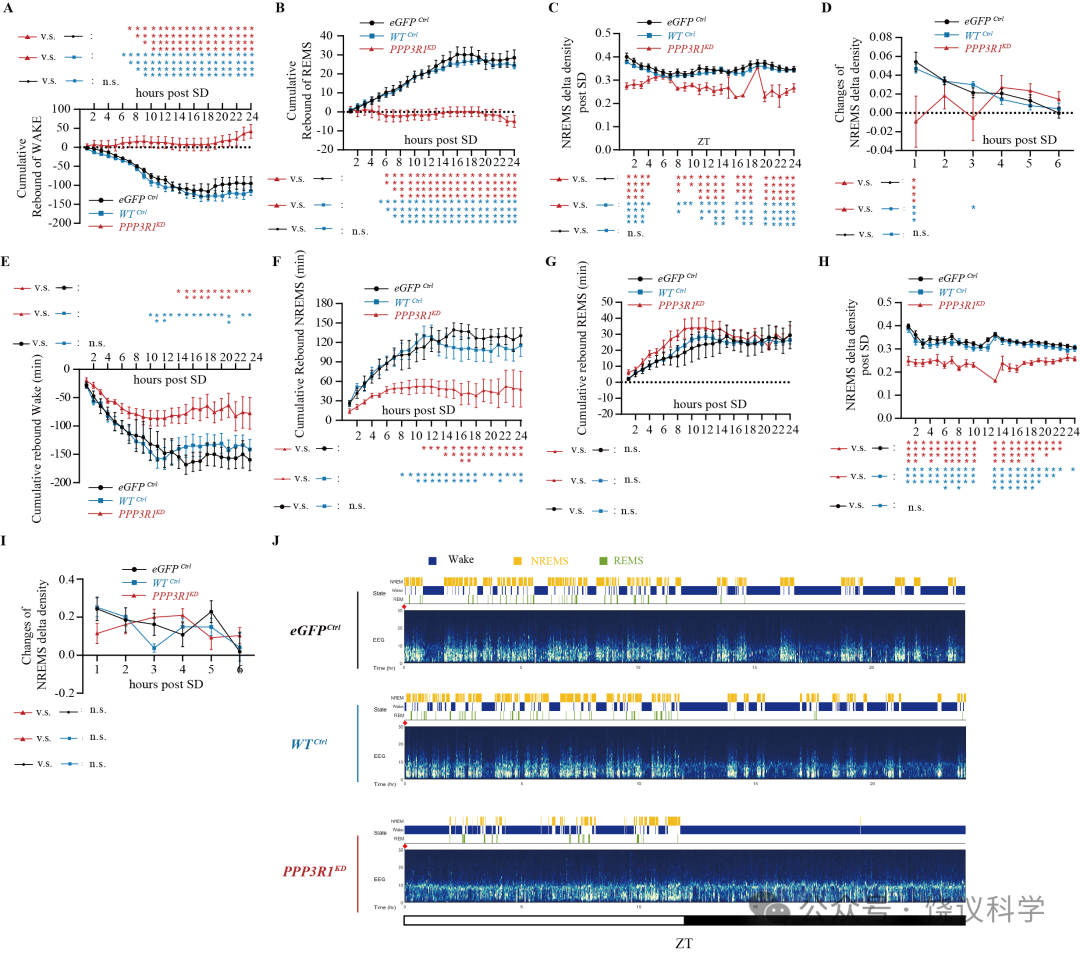

PPP3R1KD小鼠在ZT0ZT66小時睡眠剝奪後缺乏NREMSREMS的恢復。從第8到第24小時的每個時間點均有顯著差異(7K和圖S15A-B)我們注意到,PPP3R1KD小鼠在ZT0ZT6期間的睡眠時間顯著少於ZT6ZT12期間。為確保在SD期間失去足夠的睡眠時長,我們在ZT6ZT12重複了睡眠剝奪(SD)。eGFPCtrlWTCtrl小鼠相比,PPP3R1KD小鼠的NREMSSD後的回覆時長顯著減少(圖S15F),而REMS未受影響 (S15G)
PPP3R1KD小鼠的NREMS δ波功率降低,而α波功率增加 (7F-HS14I-J)SD後,PPP3R1KD小鼠的NREMS δ波功率恢復也少於對照小鼠 ( S15C-D H)PPP3R1KD小鼠在ZT6-12期間SD後的NREMS δ功率密度反彈與兩個對照組無顯著差異 (S15I)

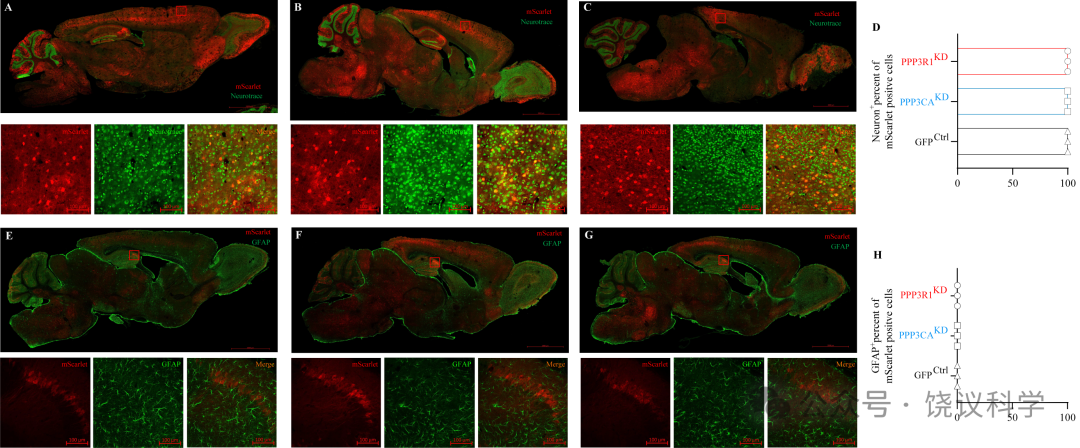

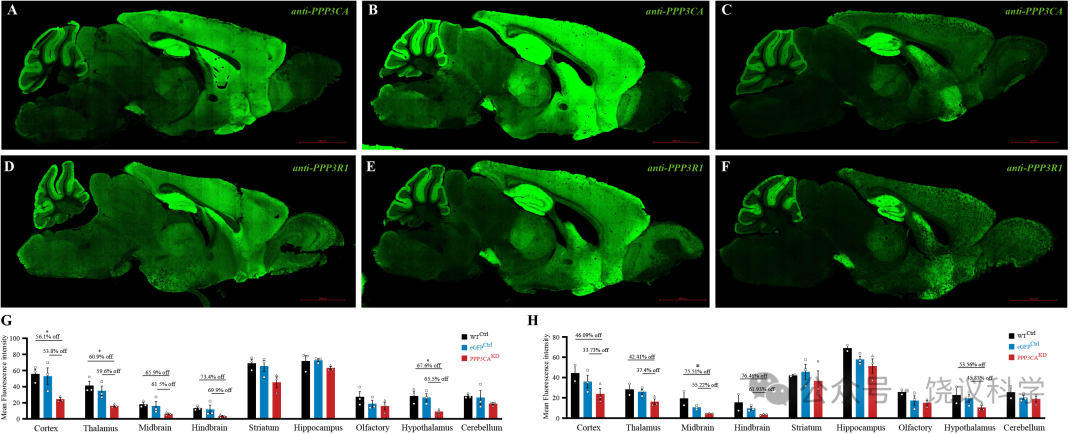

在確認CaN在小鼠睡眠調節中的作用後,我們進一步分析了CRISPR-Cas9介導的PPP3CAPPP3R1 KD在小鼠大腦中的效率。免疫組化分析顯示,與eGFPCtrlWTCtrl小鼠相比,PPP3CAKDPPP3R1KD小鼠的大腦皮層、丘腦、中腦、後腦和下丘腦中PPP3CAPPP3R1蛋白水平顯著降低 (S16A-H)。為確定丟失CaN的細胞型別,我們進行了病毒標記mScarlet和神經元標記Neurotrace(圖S17A-C)或星形膠質細胞標記膠質纖維酸性蛋白(GFAP)(圖S17E-G)的免疫組化共染色。結果顯示,病毒主要侵染了神經元 (S17D S17H),這表明CaN的丟失主要發生在敲除組的神經元中。
CaN LOF的表型比SIK3 LOF的表型顯著得多。為研究SIK3 T469磷酸化是否位於CaN調控睡眠的下游,我們在Sik3T469A/+背景下敲低了PPP3R1

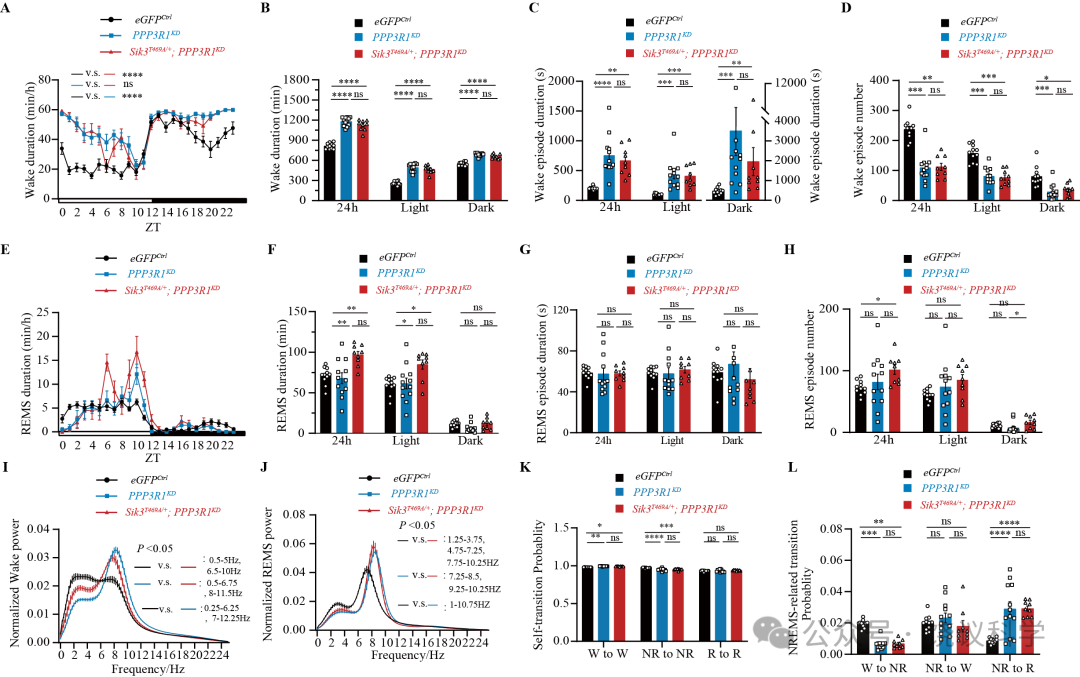

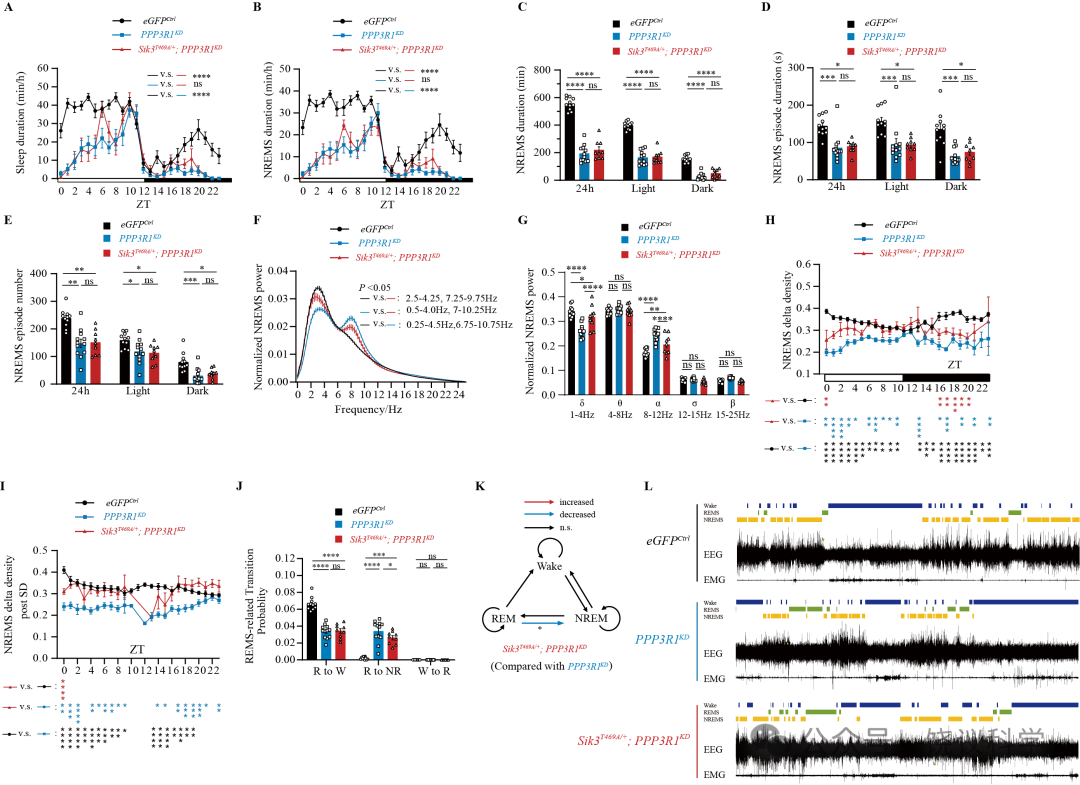

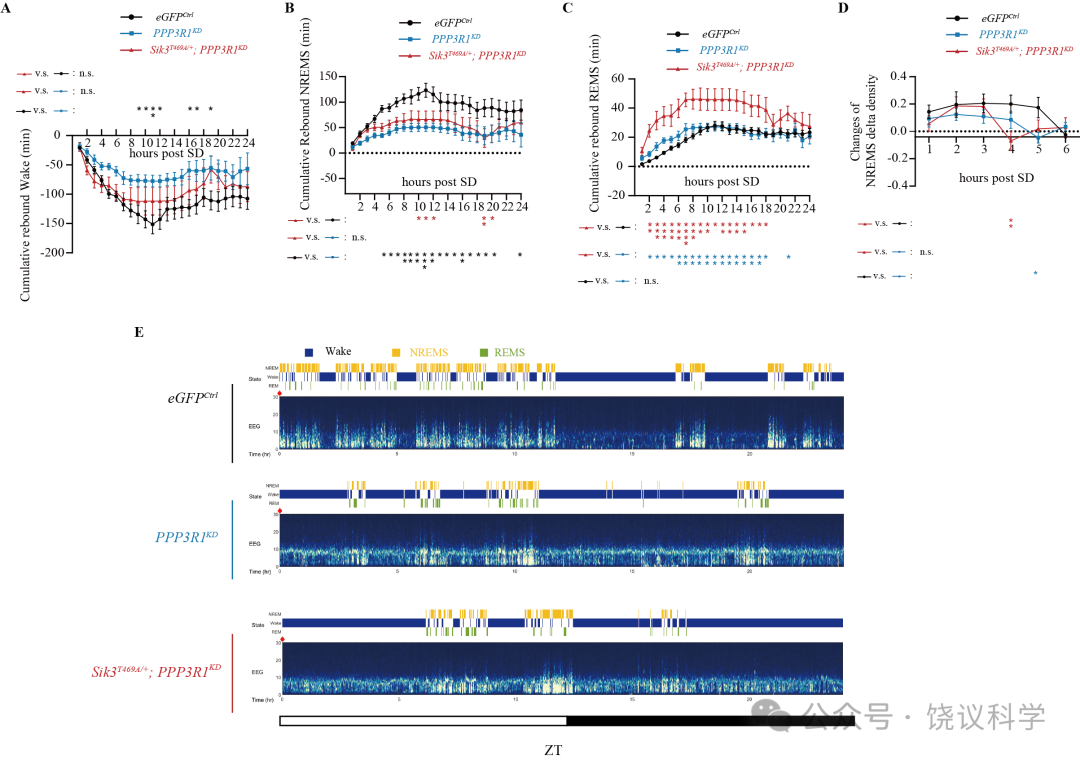

Rosa26Cas9/+::Sik3+/+背景下,與注射了AAV-sgRNAEGFP的小鼠相比,PPP3R1KD導致NREMS時長、NREMS δ波功率密度和SD後的NREMS反彈(從ZT6-12)減少(8A-HS19B)。在Rosa26Cas9/+::Sik3T469A/+背景,NREMSα波功率(圖8G)、SD前後的NREMS δ波功率密度(圖8H和圖8I),以及REMSNREMS的轉換機率(圖8J-K)有部分回覆,而總睡眠時長和NREMS時長以及NREMSSD後的反彈表型未回覆 (8A-ES19B)。在Rosa26Cas9/+::Sik3+/+小鼠及其同窩Rosa26Cas9/+::Sik3T469A/+小鼠中,PPP3R1KD不影響夜間REMS時長(圖S18E-H),而在後者中,它增加了ZT6-12期間SD導致的REMS反彈 (S19C)
圖8
一些PPP3R1KD表型,如NREMS時長和NREMSSD後的反彈,無法透過SIK3-T469A來回復,這可以透過PPP3R1能夠去磷酸化鼠腦中的其他蛋白質(如我們圖S11中的那些)來解釋。換句話說,SIK3不可能是CaN介導其調節睡眠的唯一底物。
討論
我們展示了生化純化和化學生物學在發現睡眠相關重要分子的有效性。遺傳學方法雖然強大,但需要用完整的動物來發現與睡眠相關的基因。果蠅睡眠和小鼠睡眠相關的基因存在物種差異,使得有必要使用小鼠來尋找調節哺乳動物睡眠的分子,但顯著減緩了尋找影響哺乳動物睡眠的分子(內源性或外源性)的過程。生物化學可以在體外應用於分子、而非動物,因此可以在更小的反應體積中使用更多的分子。用生物化學發現的分子可以在體內測試其對睡眠的影響,正如我們在這裡所做的。體外分子方法可能會促進睡眠研究,並改變尋找影響睡眠藥物的方法。

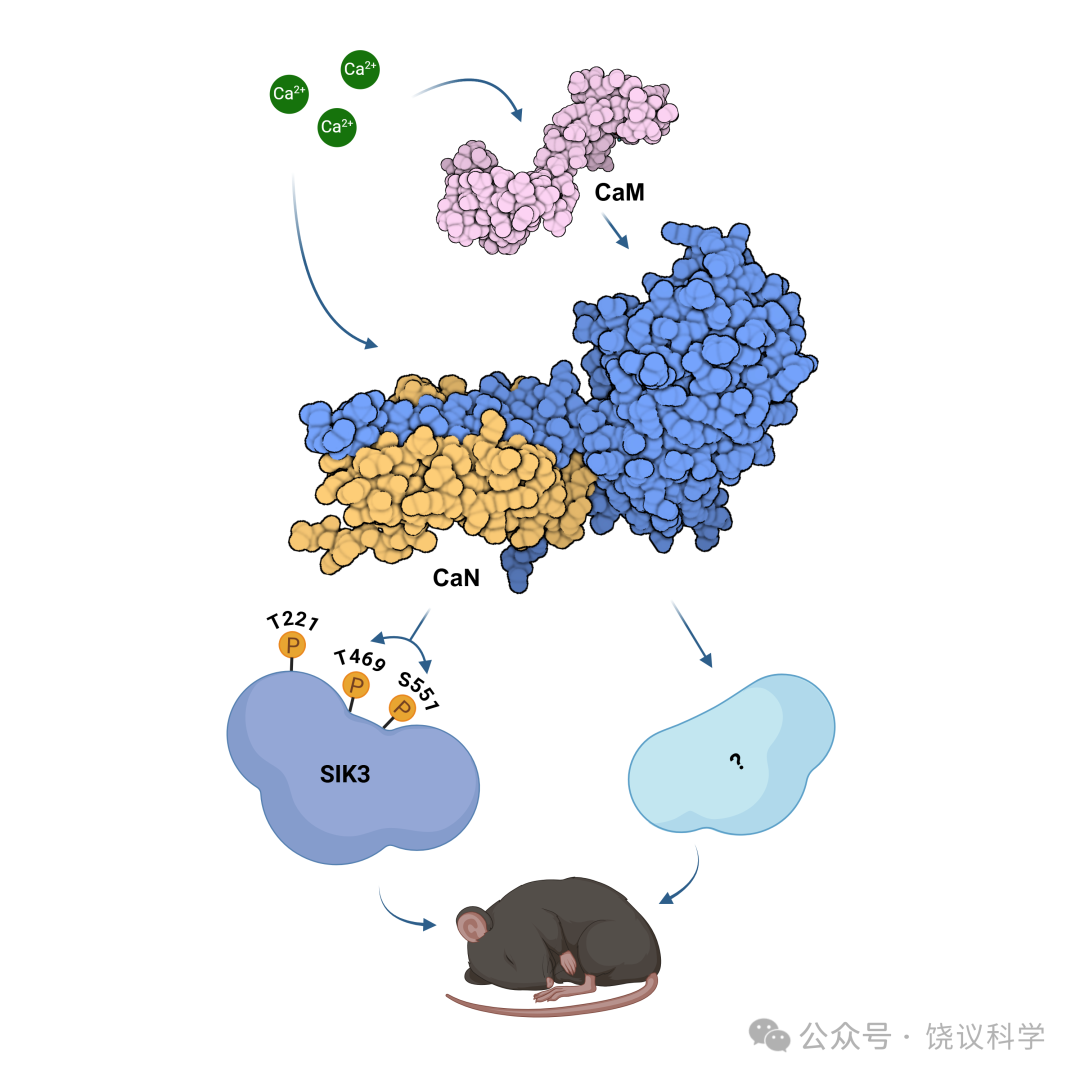

我們的研究結果表明,CaN在調節睡眠特別是NREMS–起重要作用,部分透過SIK3 T469去磷酸化,並揭示了一個涉及蛋白激酶和磷酸酶的訊號通路在睡眠調節中的作用。我們的研究還揭示了CaN在體外和體內去磷酸化SIK3中特定ST殘基的特異性,顯示磷酸酶有之前未觀察到的特異性。因SIK3敲除小鼠19SIK3 T469A點突變小鼠的睡眠表型都比CaN突變的弱得多,很明顯SIK3及其T469S551位點並非CaN的唯一下游靶點。
我們的Sik3S551A/+小鼠睡眠表型遠弱於之前其他人報道的結果14事實上,野生型對照小鼠的基礎NREMS時長也有所不同(我們研究中的約520分鐘/ vs 他們研究中的約650分鐘/天)。這種差異可能因不同的遺傳背景、飼養和測量條件所造成。 Sik3T469E/+小鼠無睡眠表型,這與之前的生化結果一致,即 SIK3 T469E未能模擬持續磷酸化,且無法結合14-3-3蛋白66Sik3S551D/+小鼠同樣表現出與Sik3S551A/+ 小鼠相似、而非相反的睡眠表型14
雖然我們和其他研究人員已經研究了許多與果蠅睡眠相關的基因,但尚未發現它們的鼠類同源基因對小鼠睡眠都是必需的。目前尚無法預測在任何一種物種中發現的基因是否會在另一種物種中調節睡眠。因此,瞭解到CaN參與調節果蠅睡眠是令人欣慰的83,84SIK3在果蠅和小鼠中都參與調節睡眠的事實14,18,19進一步支援了SIK3及其調節因子如LKB1CaN在睡眠控制中的重要性。
CaN在哺乳動物睡眠調節中的作用
CaN的三個催化亞基在體外都能在生化上去磷酸化SIK3T469S551,但不能去磷酸化T221。在體內,我們已證明PPP3CAPPP3CBHEK293T細胞中去磷酸化T469S551,以及PPP3CA在小鼠腦中的作用。我們已發現PPP3CAPPP3R1在調節小鼠睡眠方面具有生理作用。 PPP3CB的作用仍需進一步研究。
Sik3T469A/+的部分回覆效果表明CaN調節睡眠可能涉及其他下游靶點。基於CaN的兩個經典底物結合基序(LxVPPxIxIT),Wigington及同事發現了691種獨特的蛋白質,這些蛋白質至少包含這兩個基序中的一個,可能作為CaN的潛在底物82我們的磷酸化蛋白質組學資料還揭示了部分在CaN KD組中磷酸化狀態發生變化的候選蛋白,其中離子通道蛋白(Cacna1cCacna1hKcnb1Scn2a等)尤為引人注目。
有研究表明,SIK3在穀氨酸能神經元調節小鼠的睡眠85。穀氨酸能神經元在小鼠的許多腦區中廣泛分佈86。很可能CaN也在穀氨酸能神經元中發揮作用,從而影響睡眠。CaN 還在位於丘腦皮層和丘腦網狀核的 GABA 能神經元中發揮作用87我們的免疫組化資料表明CaN的丟失主要發生在神經元中,但需在不同的腦區和神經元型別中系統性地操縱CaN,以找到CaN調節睡眠的主要區域。
我們發現CaN在睡眠中具有特定表型,這將激發對其他磷酸酶在睡眠中作用的進一步研究。例如,雖然CaNNREMS中似乎比在REMS中更重要,但是否有其他磷酸酶在調節REMS方面更為重要?我們發現CaN在去磷酸化特定位點和調節睡眠特定成分方面的特異性,既帶來了問題,也激發我們進一步理解哺乳動物睡眠分子機理的熱情。應進一步研究磷酸酶在重要生理過程中的具體作用。
鈣離子對睡眠的調節
不同腦區的Ca2+成像研究已顯示出在不同的睡眠/覺醒狀態下細胞內和細胞外的Ca2+濃度是不同的88-91。利用藥理學和遺傳學方法操縱影響Ca2+濃度的離子通道可以改變小鼠的睡眠模式38,92-95
我們對CaN作用的發現提供了Ca2+的一個可能下游組分,但仍需進一步研究Ca2+、激酶、磷酸酶、離子通道和轉錄因子如何相互作用從而調節睡眠。
蛋白激酶與睡眠
第一個發現的與睡眠調節相關的激酶是PKA。一種能夠抑制磷酸二酯酶並增加環腺苷酸(cAMP)的抗抑鬱藥可以增加大鼠的清醒度26。在小鼠中,過表達一種顯性負性的PKA突變體促進了REMSNREM的碎片化,同時減少了SD後的睡眠反彈30。對小鼠神經元中的ERK1ERK2進行藥理抑制或基因敲除顯著減少睡眠時長33。當發現AMPK的抑制劑會減少小鼠的睡眠,而其啟用劑會增加小鼠的睡眠時,AMPK被認為與睡眠調節有關34。在特定腦區透過藥理學抑制CaMKII可以增加睡眠37,而胚胎敲低CaMK2aCaMK2b基因導致睡眠時間分別減少了大約50分鐘和120分鐘38透過小鼠的前向遺傳篩選發現,SIK3GOF突變可以調節睡眠14。在Sik3sleepy突變體中刪除了一個小片段,導致缺少PKA靶位點S55120SIK1SIK2中的SIK3 S551同源位點的突變導致了GOF表型21,這就不清楚哪種SIK激酶或磷酸化位點在生理上為睡眠調節所必需。我們對每個SIK基因缺失的小鼠的研究表明,只有SIK3、而不是SIK1SIK2,為小鼠睡眠所必需19Lkb1是一個腫瘤抑制基因,其產物被發現能夠磷酸化AMPKα亞基的T172位點97-103,以及包括SIK3在內的AMPK相關激酶(ARKs)的相應位點104我們最近的體內功能研究表明,LKB1為果蠅和小鼠睡眠所必需18除了LKB1,我們體外生化研究還發現了二十多種STE20亞家族的激酶可以作為ARKs上游105,106,這使LKB1在睡眠調節中位於SIK3上游的簡單情景變得不確定。我們仍在研究這些透過生化方法鑑定的任何STE20激酶是否參與睡眠調節。
