PostgreSQL18新特性前瞻

前言

距離 PostgreSQL 17 正式釋出已近半年,按照每年釋出一個大版本的慣例,PostgreSQL 18 預計將在 2025 年底釋出。距離正式釋出還有一段時間,社群的開發工作仍在如火如荼地進行中。
雖然本文中列舉的許多新特性最終可能會有變化,但這並不妨礙我們展望 PostgreSQL 18 中可能引入的新特性,讓我們一覽為快 ~

可觀測性

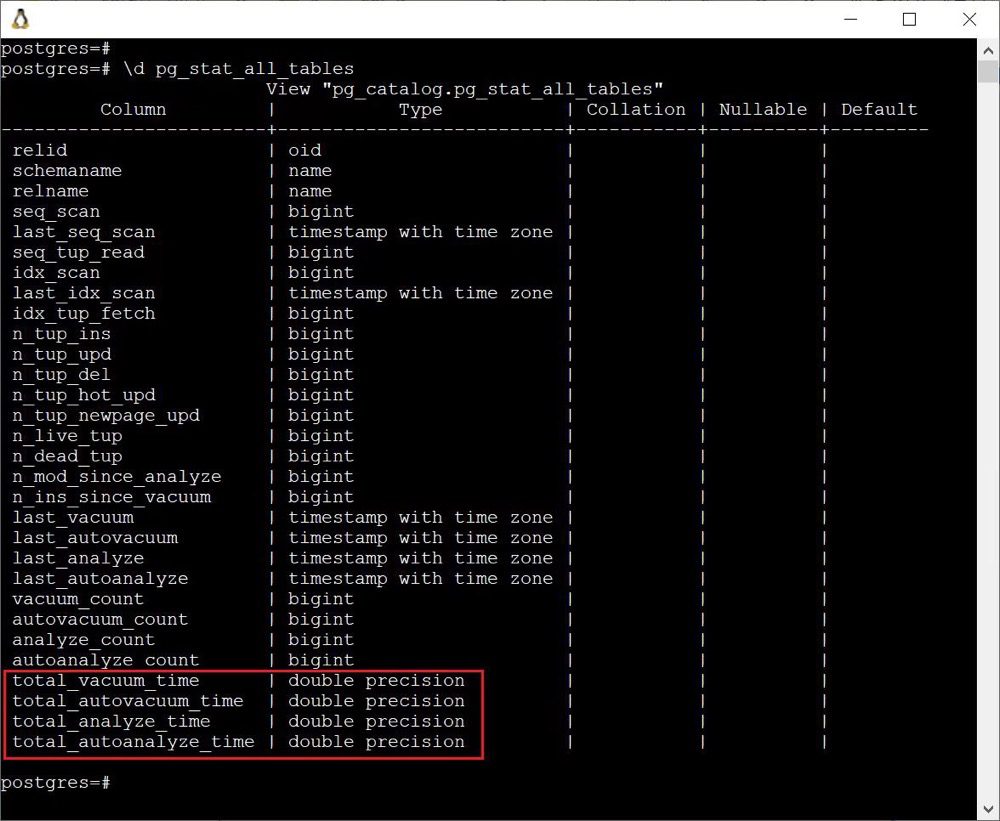

pg_stat_all_tables

在 pg_stat_all_tables 中新增了 (auto) vacuum 和 (auto) analyze 的相關耗時指標,這對於我們診斷 VACUUM 問題的時候無疑大有裨益。

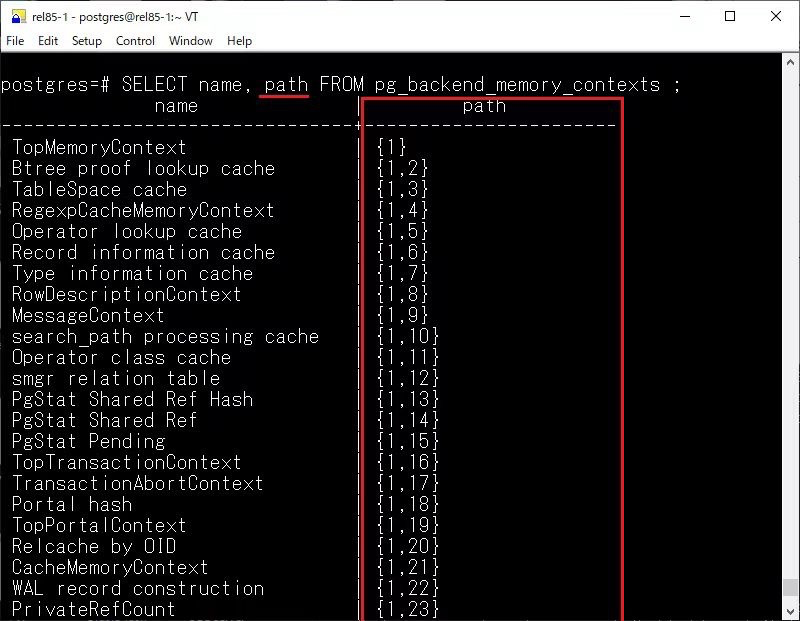

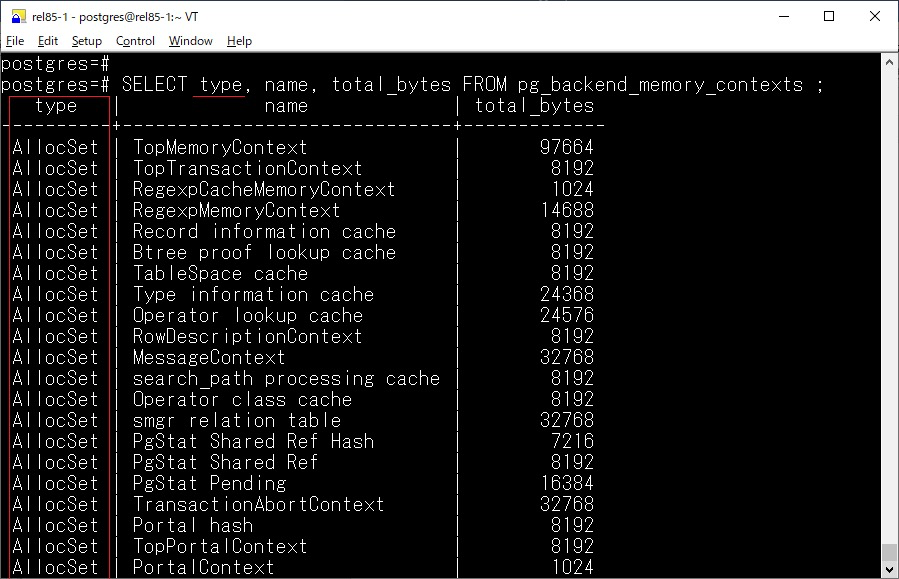

記憶體上下文

在 pg_backend_memory_contexts 檢視中新增了 type、path 和 parent 三個欄位,關於記憶體上下文就不再贅述,感興趣的可以閱讀:https://smartkeyerror.com/PostgreSQL-MemoryContext[1]

pg_stat_checkpointer

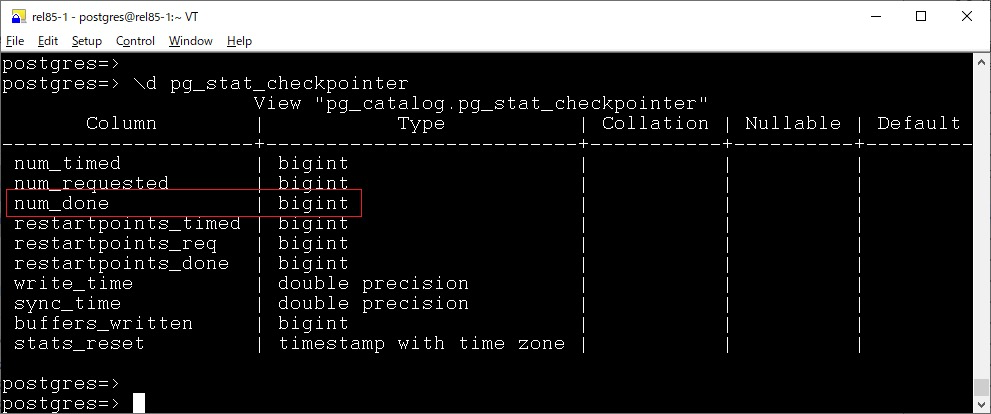

在 pg_stat_checkpointer 檢視中,新增了 num_done 欄位,pg_stat_checkpointer 中現有的 num_timed 和 num_requested 計數器用於跟蹤已完成和跳過的檢查點,但無法僅計數已完成的檢查點。
因為在 PostgreSQL 中,檢查點也有 skip 機制,當非停庫、REDO 完成或者強制觸發檢查點時,如果資料庫沒有寫入操作,則直接返回,不需要再去遍歷一下 shared buffer 去刷髒,提升檢查點的效能。
/*     * If this isn't a shutdown or forced checkpoint, and if there has been no     * WAL activity requiring a checkpoint, skip it.  The idea here is to     * avoid inserting duplicate checkpoints when the system is idle.     */if ((flags & (CHECKPOINT_IS_SHUTDOWN | CHECKPOINT_END_OF_RECOVERY |                  CHECKPOINT_FORCE)) == 0)    {if (last_important_lsn == ControlFile->checkPoint)        {            END_CRIT_SECTION();            ereport(DEBUG1,                    (errmsg_internal("checkpoint skipped because system is idle")));return;        }    }
但是現有的 num_timed 是無法區分的,所以此次提交引入了 num_done 計數器,它僅跟蹤已完成的檢查點,從而更容易檢視實際執行了多少個檢查點。
Note that checkpoints may be skipped if the server has been idle since the last one, and this value counts both completed and skipped checkpoints

pg_stat_database

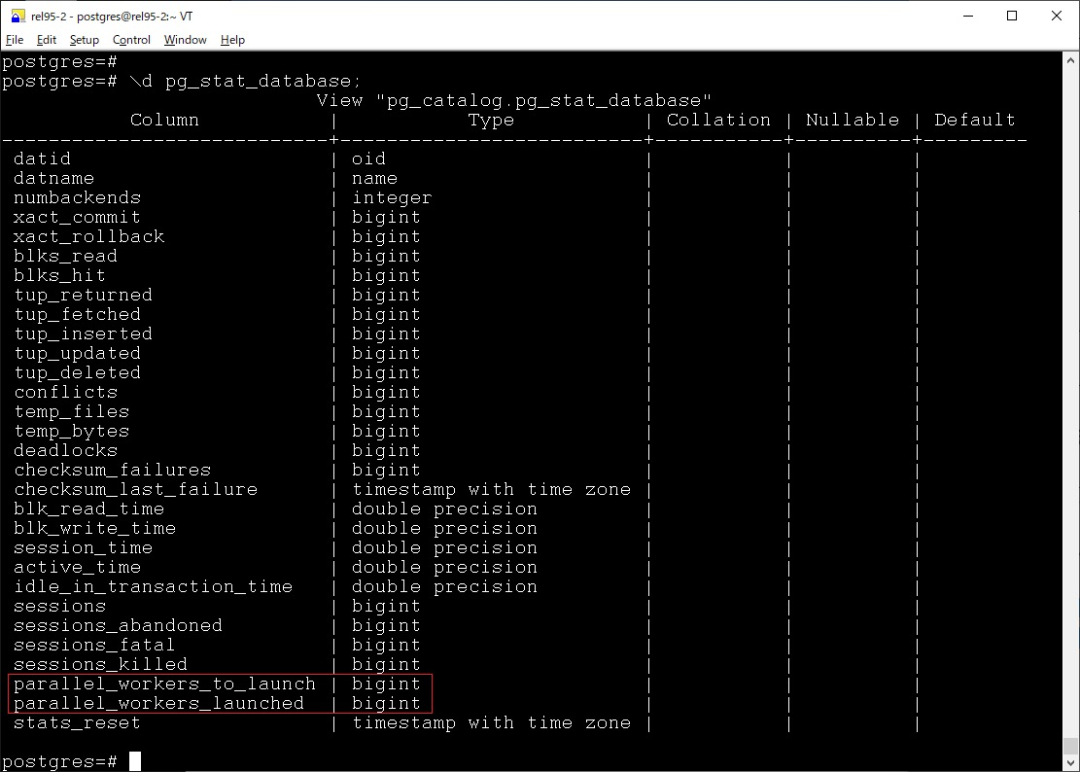

pg_stat_database 中新增瞭如下兩個欄位
parallel_workers_to_launchparallel_workers_launched
顧名思義,看到這個資料庫中並行的使用情況。

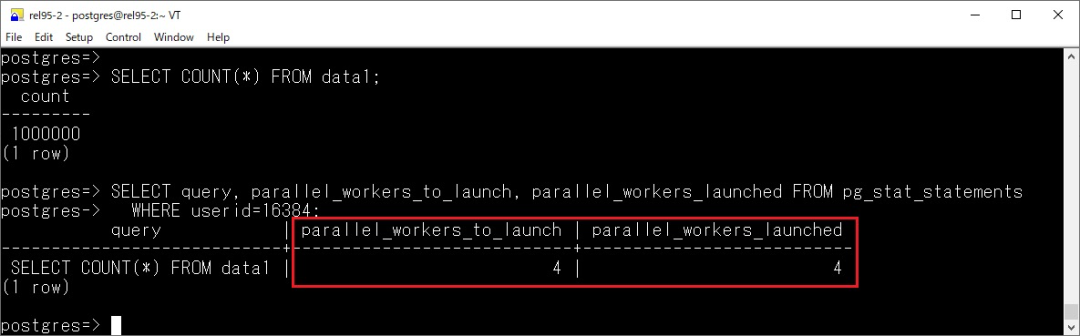

另外,在 pg_stat_statements 中也新增了額外兩個類似指標

pg_stat_subscription_stats

主要新增了一些用於觀察衝突的列:
confl_insert_existsconfl_update_origin_differsconfl_update_existsconfl_update_missingconfl_delete_origin_differsconfl_delete_missing

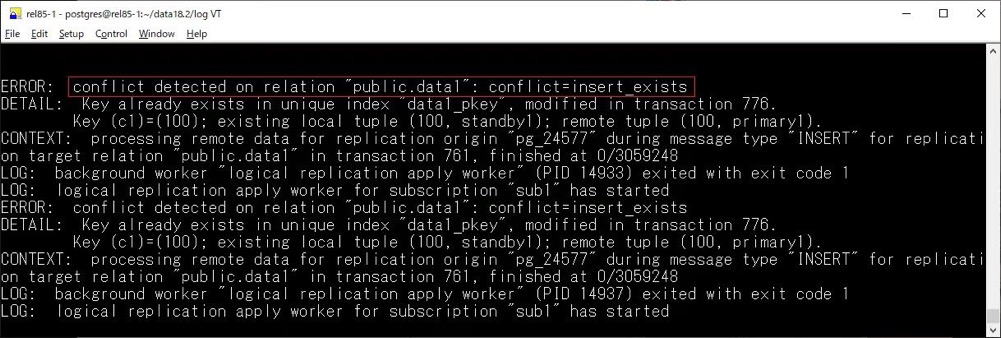

在日誌中也有所體現:

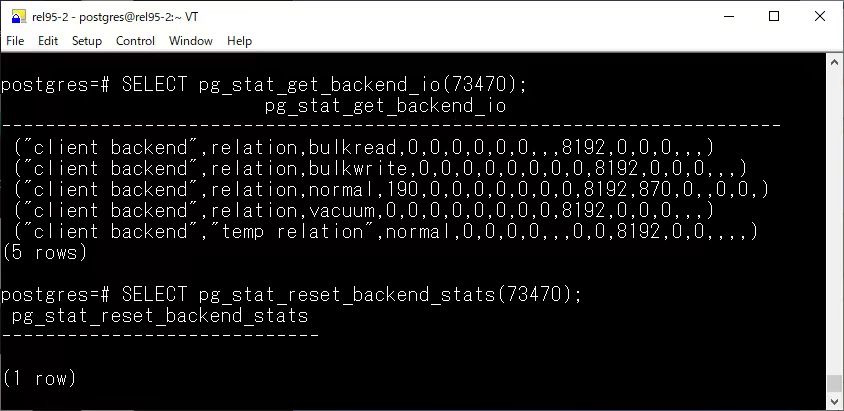

pg_stat_get_backend_io

新增了 pg_stat_get_backend_io 函式,用於返回指定後端程序的 I/O 統計資訊
結合 pg_stat_activity,如虎添翼:
postgres=SELECT*FROM pg_stat_get_backend_io( pg_backend_pid() )WHERE backend_type ='client backend'AND object ='relation'AND context ='normal';-[ RECORD 1 ]--+---------------backend_type   | client backendobject         | relationcontext        | normalreads          | 122read_time      | 0writes         | 0write_time     | 0writebacks     | 0writeback_time | 0extends        | 49extend_time    | 0op_bytes       | 8192hits           | 11049evictions      | 0reuses         | fsyncs         | 0fsync_time     | 0stats_reset    |

統計資訊

對於 ANALYZE,在 18 版本中可以看到資源消耗情況以及 WAL 的使用情況

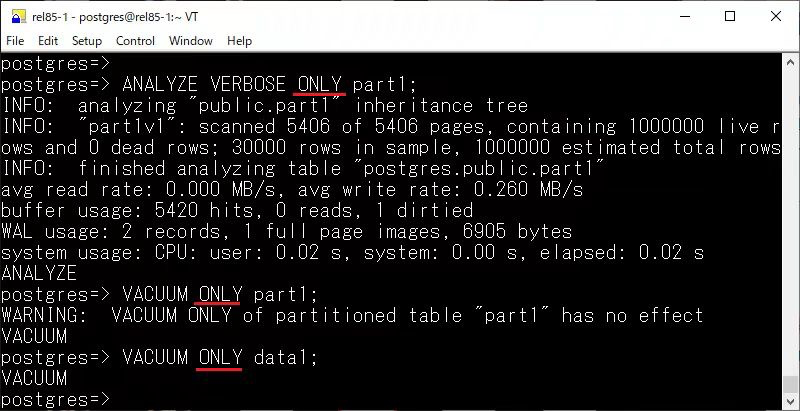

其次還新增了 ONLY 關鍵字,目的是解決在處理分割槽表時,VACUUM 和 ANALYZE 操作的一些不便之處。預設情況下,Autovacuum 程序不會自動對分割槽表執行 ANALYZE,使用者必須手動執行。然而手動執行時,又會遞迴去分析每個分割槽,對於較大的分割槽表無疑會十分耗時,尤其是當表的列數很多時。為了解決這個問題,18 中引入了 ONLY 關鍵字,指定僅對主表進行操作,跳過對分割槽的處理。這樣,使用者可以避免在分割槽表上執行遞迴分析,節省時間。
這個行為讓我想起了在 Greenplum 中,有個針對根分割槽的 optimizer_analyze_root_partition 引數。
對於分割槽表,當在表上執行 ANALYZE 命令時收集根分割槽的統計資訊。GPORCA 使用根分割槽統計資訊來生成一個查詢計劃。而遺傳查詢最佳化器並不使用這些資料。

效能

Hash Right Semi Join

在 18 中,支援了 Hash Right Semi Join (也支援並行),是的 Richard Guo 大佬。
以下是 17 中的例子,最佳化器選擇了基於大表 ticket_flights 進行 HASH,這無疑會消耗更多資源
=# EXPLAIN (costs off, analyze)SELECT*FROM flightsWHERE flight_id IN (SELECT flight_id FROM ticket_flights);                                           QUERY PLAN                                           ------------------------------------------------------------------------------------------------ Hash Join (actual time=2133.122..2195.619 rows=150588 loops=1)   Hash Cond: (flights.flight_id = ticket_flights.flight_id)   ->  Seq Scan on flights (actual time=0.018..10.301 rows=214867 loops=1)   ->  Hash (actual time=2132.969..2132.970 rows=150588 loops=1)         Buckets: 262144 (originally 131072)  Batches: 1 (originally 1)  Memory Usage: 7343kB         ->  HashAggregate (actual time=1821.476..2114.218 rows=150588 loops=1)               Group Key: ticket_flights.flight_id               Batches: 5  Memory Usage: 10289kB  Disk Usage: 69384kB               ->  Seq Scan on ticket_flights (actual time=7.200..655.356 rows=8391852 loops=1) Planning Time: 0.325 ms Execution Time: 2258.237 ms(11 rows)
在 18 中,第四行我們可以看到,最佳化器選擇了 Parallel Hash Right Semi Join,基於 flights 去構建了 HASH,執行時間也有倍數的提升。
                                           QUERY PLAN                                             --------------------------------------------------------------------------------------------------- Gather (actual time=56.771..943.233 rows=150590 loops=1)   Workers Planned: 2   Workers Launched: 2   ->  Parallel Hash Right Semi Join (actual time=41.754..909.894 rows=50197 loops=3)         Hash Cond: (ticket_flights.flight_id = flights.flight_id)         ->  Parallel Seq Scan on ticket_flights (actual time=0.047..221.511 rows=2797284 loops=3)         ->  Parallel Hash (actual time=40.309..40.309 rows=71622 loops=3)               Buckets: 262144  Batches: 1  Memory Usage: 23808kB               ->  Parallel Seq Scan on flights (actual time=0.008..6.631 rows=71622 loops=3) Planning Time: 0.555 ms Execution Time: 949.831 ms(11 rows)

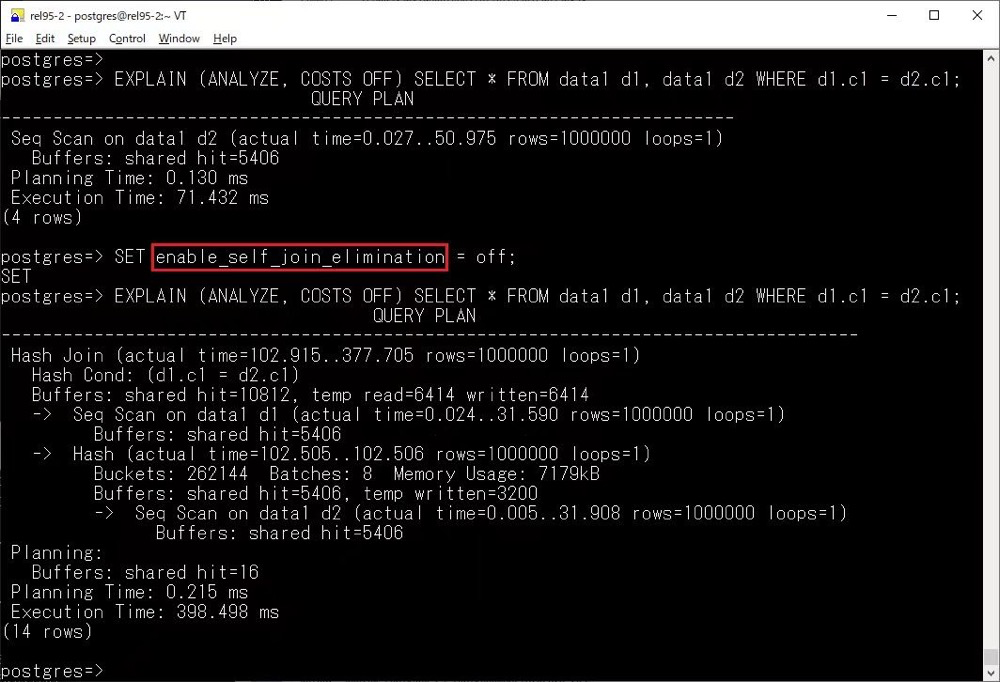

Self-Join Elimination

當查詢中的表與自身進行內連線時,如果可以證明該連線在查詢結果中沒有實際作用,可以用掃描操作代替這個自連線。這種最佳化有助於減少查詢計劃的複雜度,特別是在涉及分割槽表時。該最佳化的主要效果包括:
減少範圍表的長度:特別是對於分割槽表,消除不必要的自連線有助於減少表列表中的項數。減少限制條件的數量:從而減少了選擇性估算,並可能提高查詢計劃的預測準確性。
這項最佳化透過替代自連線為更高效的掃描操作來減少查詢計劃的複雜性,尤其在處理分割槽表時具有顯著的效能優勢。搭配上 Hash Right Semi Join,使得 18 中的最佳化器能力更上一層樓。

UUID v7

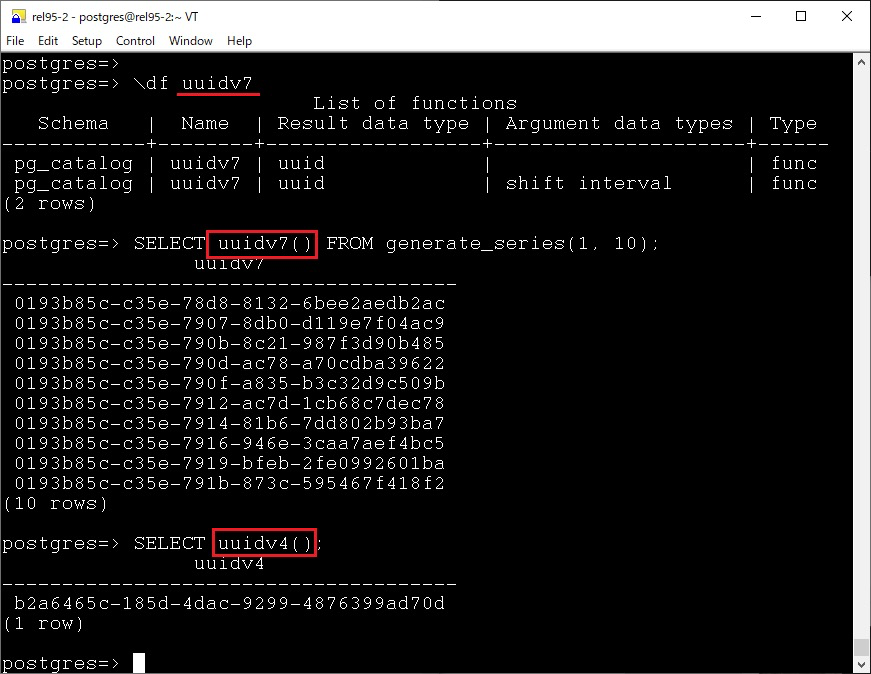

在 18 中,另一個比較令人驚喜的是 v7 UUID 的支援 — 結合了以毫秒為單位的 Unix 時間戳和隨機位,提供唯一性和可排序性,UUID v7 採用時間戳作為生成 UUID 的核心部分,這意味著它是有序的。與 UUID v4 的隨機性不同,UUID v7 生成的 UUID 在時間上具有自然的順序。這樣的有序性在資料庫和分散式系統中具有重要優勢,特別是在資料插入、索引和查詢時,有序的 UUID 使得資料可以更好地分佈和排序,避免了 UUID v4 生成的隨機分佈可能導致的效能問題。
非 V7 的 UUID 其危害我已經寫過不少文章進行闡述了,那麼在 18 以前如何實現 v7 呢?可以參照 Howtos 裡面的相關文章:
https://postgres-howto.cn/#/./docs/64?id=how-to-use-uuid[2]https://postgres-howto.cn/#/./docs/65?id=uuid-v7-and-partitioning-timescaledb[3]

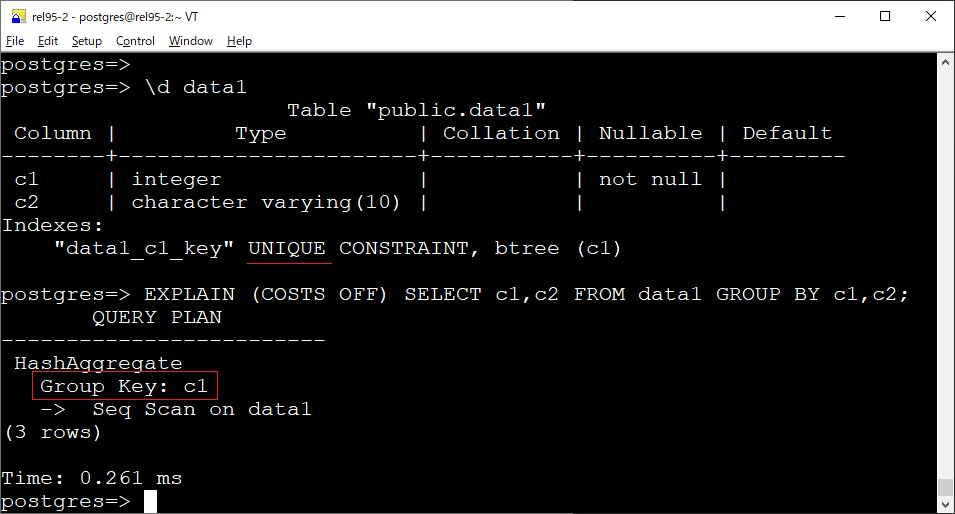

使用唯一索引檢測冗餘的 GROUP BY 列

原本在 GROUP BY 包含關係表的所有主鍵列時,所有其他不屬於主鍵的列可以從 GROUP BY 子句中移除,因為這些列在功能上依賴於主鍵,並且主鍵本身足以確保組的唯一性。這個最佳化特性被擴充套件到不僅適用於主鍵索引,還支援任何唯一索引。也就是說,如果表上存在一個唯一索引,最佳化器可以使用該索引來移除 GROUP BY 中冗餘的列。
針對這個,讓我想起了另一個核心知識點,我們知道,對於 group by,非聚合列必須包含在 group by 子句中,否則會報如下錯誤 xxx must appear in the GROUP BY clause or be used in an aggregate function
postgres=createtable test(id intprimary key,info text);                                                                                                                                                                                                 CREATETABLEpostgres=insertinto test values(1,'hello');                                                                                                                                                                                                              INSERT01postgres=insertinto test values(2,'world');                                                                                                                                                                                                              INSERT01postgres=insertinto test values(3,'postgres');                                                                                                                                                                                                           INSERT01postgres=insertinto test values(4,'postgres');                                                                                                                                                                                                           INSERT01postgres=select*from test;                                                                                                                                                                                                                               id |   info                                                                                                                                                                                                                                                ----+----------                                                                                                                                                                                                                                               1 | hello                                                                                                                                                                                                                                                   2 | world                                                                                                                                                                                                                                                   3 | postgres                                                                                                                                                                                                                                                4 | postgres                                                                                                                                                                                                                                              (4 rows)
當非聚合列不包含在 group by 子句中會報錯,但是如果按照主鍵的話,就不會報錯
postgres=select id,count(*from test groupby info;                                                                                                                                                                                                      ERROR:  column "test.id" must appear in the GROUPBY clause or be used in an aggregate functionLINE 1select id,count(*from test groupby info;                                                                                                                                                                                                    ^postgres=select id,info,count(*from test groupby id;                                                                                                                                                                                                    id |   info   | count                                                                                                                                                                                                                                      ----+----------+-------                                                                                                                                                                                                                                       2 | world    |     1                                                                                                                                                                                                                                        3 | postgres |     1                                                                                                                                                                                                                                        4 | postgres |     1                                                                                                                                                                                                                                        1 | hello    |     1                                                                                                                                                                                                                                      (4 rows) postgres=# select id,info,count(*) from test group by id,info;                                                                                                                                                                                               id |   info   | count                                                                                                                                                                                                                                      ----+----------+-------                                                                                                                                                                                                                                       2 | world    |     1                                                                                                                                                                                                                                        3 | postgres |     1                                                                                                                                                                                                                                        4 | postgres |     1                                                                                                                                                                                                                                        1 | hello    |     1                                                                                                                                                                                                                                      (4 rows)
因為如果是按照主鍵進行分組,由於主鍵的原因,那麼該行必然是唯一的,即使加上其他的列,也是固定的分組。但是比較可惜的是,截止目前只能是主鍵,唯一約束 + not null 也不行,雖然語義是一樣的,程式碼裡有說明 👇🏻
/* * remove_useless_groupby_columns *      Remove any columns in the GROUP BY clause that are redundant due to *      being functionally dependent on other GROUP BY columns. * * Since some other DBMSes do not allow references to ungrouped columns, it's * not unusual to find all columns listed in GROUP BY even though listing the * primary-key columns would be sufficient.  Deleting such excess columns * avoids redundant sorting work, so it's worth doing.  When we do this, we * must mark the plan as dependent on the pkey constraint (compare the * parser's check_ungrouped_columns() and check_functional_grouping()). * * In principle, we could treat any NOT-NULL columns appearing in a UNIQUE * index as the determining columns.  But as with check_functional_grouping(), * there's currently no way to represent dependency on a NOT NULL constraint, * so we consider only the pkey for now. */staticvoidremove_useless_groupby_columns(PlannerInfo *root){    Query      *parse = root->parse;    Bitmapset **groupbyattnos;    Bitmapset **surplusvars;    ListCell   *lc;int         relid;
值得一提的是,在 16 中支援了 any_value,用於解決這種問題。

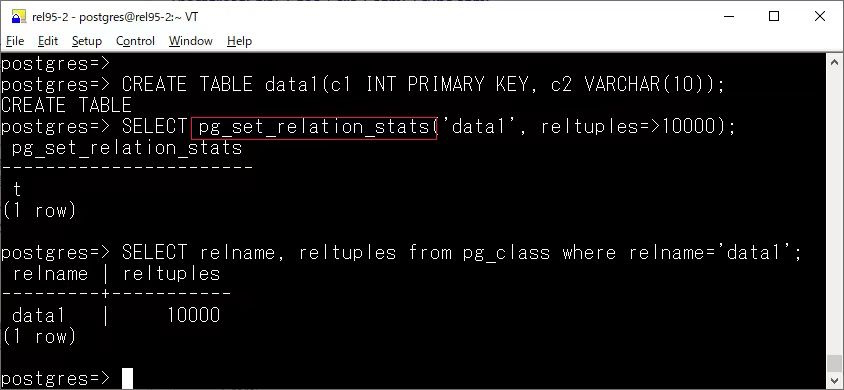

pg_set_relation_stats

截止最新版 17,PostgreSQL 中還沒有官方方法來手動調整最佳化器統計資訊,在 18 中已經可以初步做到了
以這篇文章的例子為例 https://www.dbi-services.com/blog/postgresql-18-tweaking-relation-statistics/[4]
postgres=createtable t ( a int, b text );CREATETABLEpostgres=insertinto t values (1,'aa');INSERT01postgres=insertinto t select i, 'bb'from generate_series(2,100) i;INSERT099postgres=# analyze t;ANALYZEpostgres=create index i on t(b);CREATE INDEXpostgres=# \d tTable "public.t"Column|  Type   |Collation| Nullable |Default--------+---------+-----------+----------+--------- a      | integer |           |          |  b      | text    |           |          | Indexes:    "i" btree (b)postgres=# select relpages,reltuples from pg_class where relname = 't'; relpages | reltuples ----------+-----------        1 |       100(1 row)postgres=# explain select * from t where b = 'aa';                   QUERY PLAN                    ------------------------------------------------- Seq Scan on t  (cost=0.00..2.25 rows=1 width=7)   Filter: (b = 'aa'::text)(2 rows)
雖然有索引,但是隻有一個數據塊並且只有一行滿足條件,最佳化器認為走順序掃描更快,現在可以透過 pg_set_relation_stats 調整統計資訊 (臨時的,手動或自動分析都會覆蓋),讓最佳化器走了索引掃描。
postgres=# select * from pg_set_relation_stats('t'::regclass, 11000000 ); pg_set_relation_stats ----------------------- t(1 row)postgres=# \xExpanded display is off.postgres=# select relpages,reltuples from pg_classwhererelname = 't';relpages | reltuples----------+-----------        1 |     1e+06(1 row)postgres=# explain select * from t where b = 'aa';                           QUERY PLAN                            ----------------------------------------------------------------- Index Scan using i on t  (cost=0.17..183.18 rows=10000 width=7)   Index Cond: (b = 'aa'::text)(2 rows)

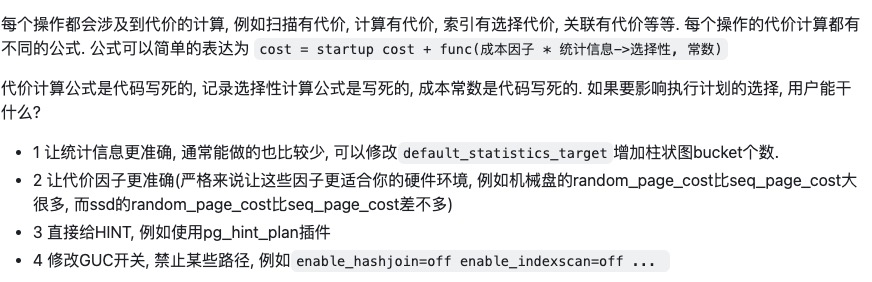

真不錯,看似一小步,實則是一大步!在德哥的吐槽大會上,有一期[5]也是吐槽最佳化器的,有一段內容如下:

VACUUM

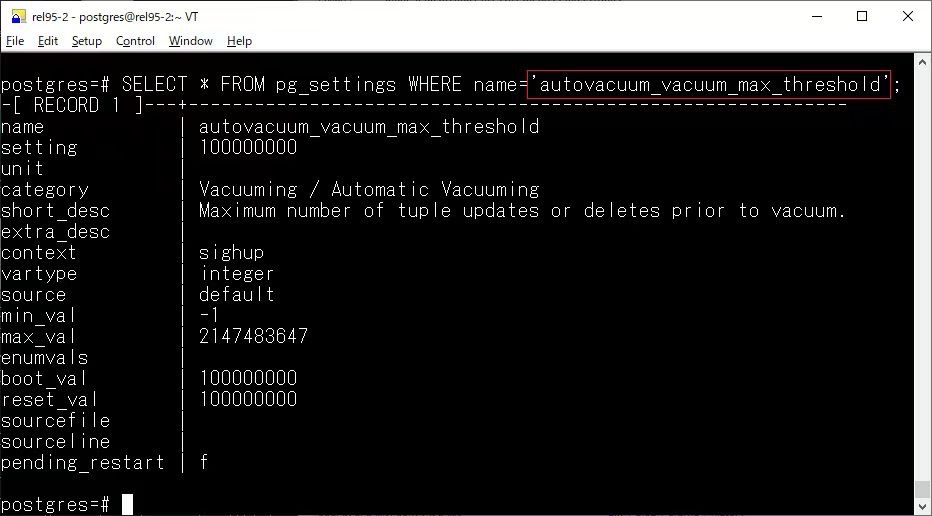

autovacuum_vacuum_max_threshold

新增了一個 autovacuum_vacuum_max_threshold 引數,PostgreSQL 預設使用 autovacuum_vacuum_threshold 和 autovacuum_vacuum_scale_factor 兩個引數來計算何時對錶進行自動清理。這兩個引數通常適用於小型表,使其更頻繁地進行 VACUUM 操作,以確保效能。然而,對於非常大的表,即使更新操作的絕對數量較多,按照比例計算,更新操作所佔的比例仍然可能較低,導致這些表不太可能觸發自動清理。
autovacuum_vacuum_max_threshold 解決了這個問題,簡單粗暴,允許指定一個絕對的更新次數閾值,一旦表中的更新次數達到該閾值,就會觸發自動清理操作。這可以確保對於那些更新數量很大的表,VACUUM 操作不會因為表的相對更新比例較低而被推遲。

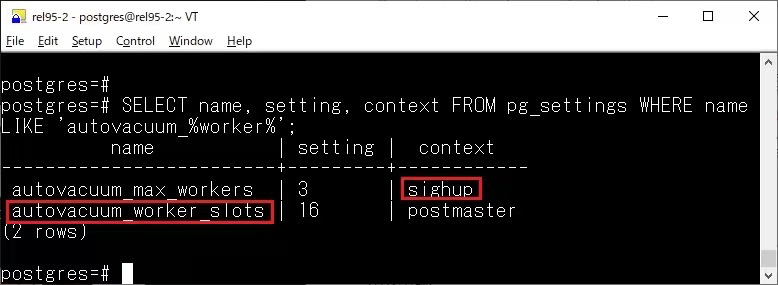

autovacuum_max_workers

現在修改 autovacuum_max_workers 不需要重啟了,直接 reload 即可

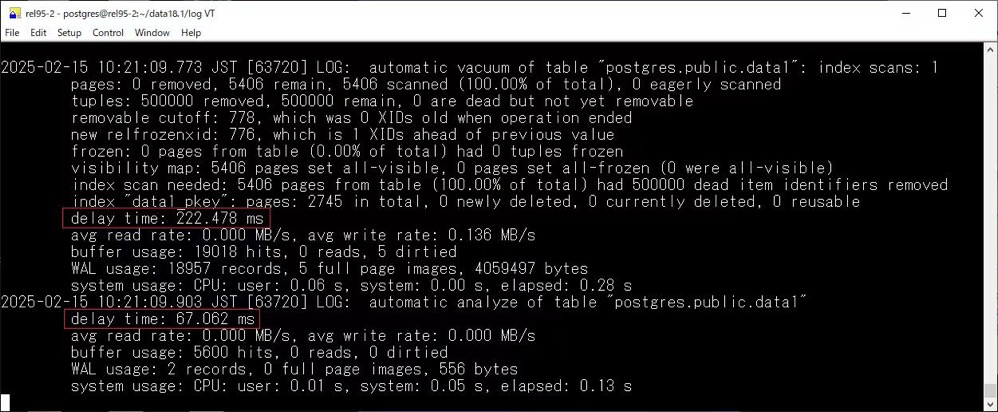

其次在日誌中可以看到 delay time 了

track_cost_delay_timing

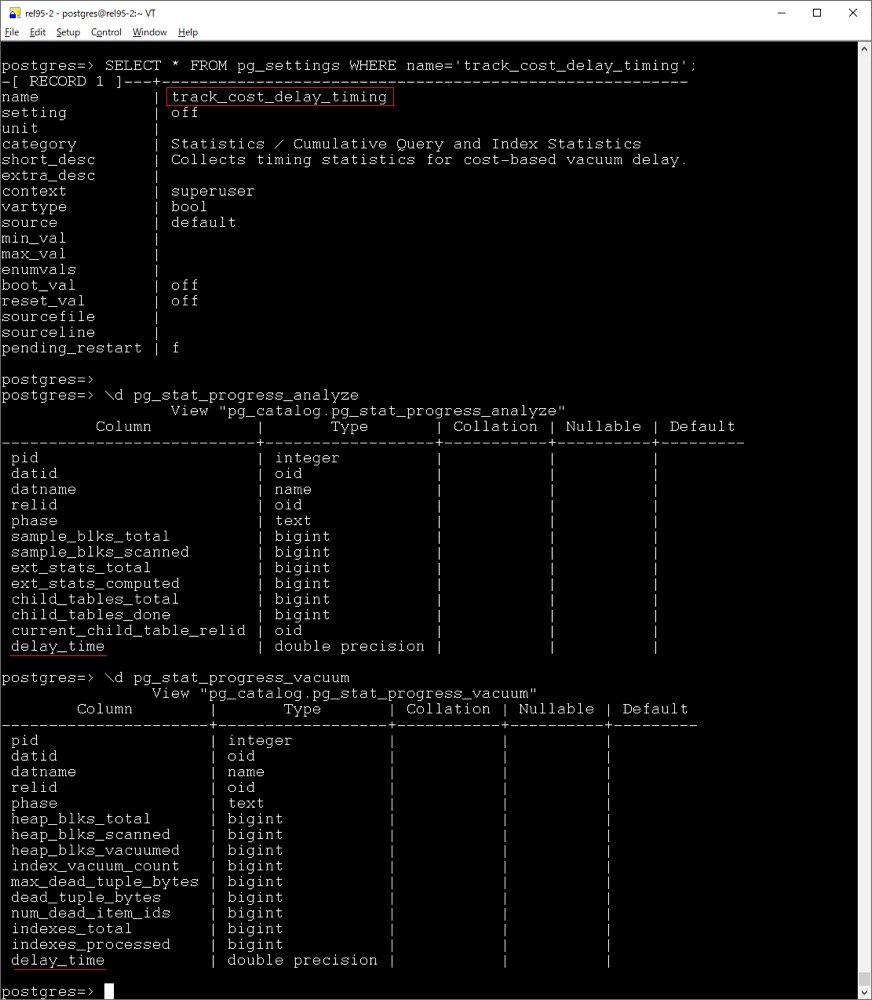

另外新增了一個 track_cost_delay_timing 引數,啟用後,將記錄基於成本的清理延遲統計資訊的時間,用於清理和分析操作,並將在 pg_stat_progress_analyze 和 pg_stat_progress_vacuum 中的 delay_time 列中可見,不過在計時較差的平臺上,也可能會造成較大的效能影響,因此預設是關閉的。

vacuum_max_eager_freeze_failure_rate

新增 vacuum_max_eager_freeze_failure_rate 引數,引數設定了一個失敗比例閾值,表示在掃描過程中,如果超過這個比例的頁面無法成功凍結,VACUUM 將停止使用提前凍結方式,並回退到正常的凍結過程。這有助於避免因為大量凍結失敗導致的效能下降。

其他

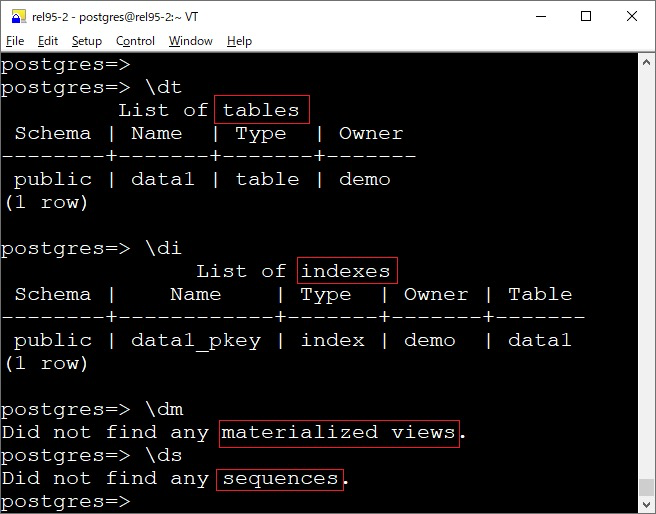

元命令

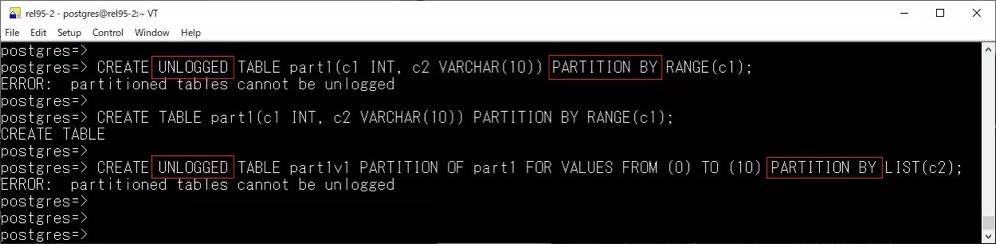

現在分割槽表不再允許 ALTER TABLE … SET [UN]LOGGED 的操作:

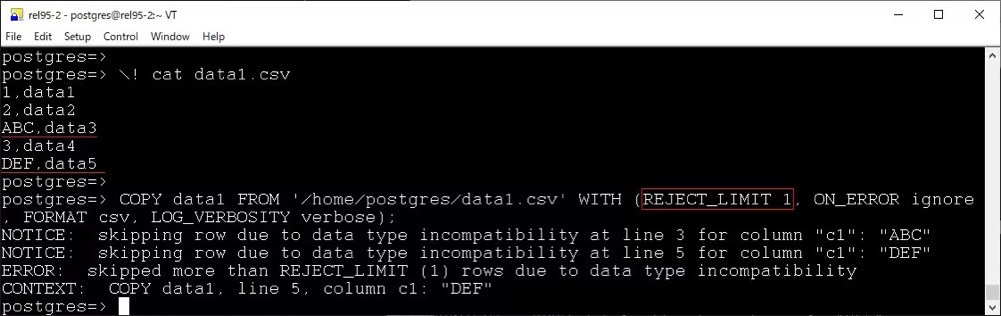

COPY 新增 REJECT_LIMIT 選項:
file_fdw 也新增了一個 REJECT_LIMIT 選項 (還新增了on_error 和 log_verbosity)。
temporal FOREIGN KEY contraints:https://www.depesz.com/2024/10/03/waiting-for-postgresql-18-add-temporal-foreign-key-contraints/[6]

小結

簡而言之,18 也是一個值得期待的大版本,讓我們拭目以待!

參考

git.postgresql.org
Noriyoshi Shinoda
https://pgpedia.info/postgresql-versions/postgresql-18.html[7]
https://habr.com/en/companies/postgrespro/articles/860490/#commit_ccd38024b[8]
