kubernetespv-controller解析

基於 kubernetes 1.23

一簡介

pv controller是 kcm 的元件之一，它負責處理叢集中的pvc/pv物件，對pvc/pv 物件進行狀態轉換。

二 pvController 初始化

初始化程式碼在 pkg/controller/volume/persistentvolume/pv_controller_base.go 檔案中，NewController 主要做了如下幾件事情

初始化 eventRecorder

初始化 PersistentVolumeController 物件，

呼叫 VolumePluginMgr.InitPlugins() 方法初始化儲存外掛，程式碼存在於 pkg/volume/plugins.go 檔案中

開始建立 informer 監聽叢集內的資源，初始化了如下 informer

PersistentVolumeInformer
PersistentVolumeClaimInformer
StorageClassInformer
PodInformer
NodeInformer

將 PV & PVC 的 event 分別放入 volumeQueue & claimQueue

為了不每次都迭代 pods ，自定義一個透過 pvc 鍵索引 pod 的索引器

初始化 intree 儲存 -> csi 遷移相關功能的 manager

NewController程式碼在cmd/kube-controller-manager程式碼裡面被呼叫，初始化成功之後緊接著呼叫go Run()方法執行 pvController

三開始執行

// 開始執行 pvController func (ctrl *PersistentVolumeController) Run(stopCh <-chan struct{}) { defer utilruntime.HandleCrash() defer ctrl.claimQueue.ShutDown() defer ctrl.volumeQueue.ShutDown() klog.Infof("Starting persistent volume controller") defer klog.Infof("Shutting down persistent volume controller")

  if !cache.WaitForNamedCacheSync("persistent volume", stopCh, ctrl.volumeListerSynced, ctrl.claimListerSynced, ctrl.classListerSynced, ctrl.podListerSynced, ctrl.NodeListerSynced) {

return } ctrl.initializeCaches(ctrl.volumeLister, ctrl.claimLister) go wait.Until(ctrl.resync, ctrl.resyncPeriod, stopCh) go wait.Until(ctrl.volumeWorker, time.Second, stopCh) go wait.Until(ctrl.claimWorker, time.Second, stopCh) metrics.Register(ctrl.volumes.store, ctrl.claims, &ctrl.volumePluginMgr) <-stopCh}

同步快取之後開始週期性執行 ctrl.resync,ctrl.volumeWorker , ctrl.claimWorker , 我們看下 initalizeCaches 方法

func (ctrl *PersistentVolumeController) initializeCaches(volumeLister corelisters.PersistentVolumeLister, claimLister corelisters.PersistentVolumeClaimLister) {

// 這裡不訪問 apiserver，是從本地快取拿出的物件，這些物件不可以被外部函式修改 volumeList, err := volumeLister.List(labels.Everything()) if err != nil { klog.Errorf("PersistentVolumeController can't initialize caches: %v", err) return } for _, volume := range volumeList { // 我們不能改變 volume 物件，所以這裡我們copy一份新物件，對新物件進行操作 volumeClone := volume.DeepCopy() if _, err = ctrl.storeVolumeUpdate(volumeClone); err != nil { klog.Errorf("error updating volume cache: %v", err) } } claimList, err := claimLister.List(labels.Everything()) if err != nil { klog.Errorf("PersistentVolumeController can't initialize caches: %v", err) return } for _, claim := range claimList { if _, err = ctrl.storeClaimUpdate(claim.DeepCopy()); err != nil { klog.Errorf("error updating claim cache: %v", err) } } klog.V(4).Infof("controller initialized")}type persistentVolumeOrderedIndex struct { store cache.Indexer}

該方法將 cache.listener 裡面的快取轉存在 persistentVolumeOrderedIndex 中，它是按 AccessModes 索引並按儲存容量排序的 persistentVolume 的快取。

1 resync

func (ctrl *PersistentVolumeController) resync() { klog.V(4).Infof("resyncing PV controller") pvcs, err := ctrl.claimLister.List(labels.NewSelector()) if err != nil { klog.Warningf("cannot list claims: %s", err) return } for _, pvc := range pvcs { ctrl.enqueueWork(ctrl.claimQueue, pvc) } pvs, err := ctrl.volumeLister.List(labels.NewSelector()) if err != nil { klog.Warningf("cannot list persistent volumes: %s", err) return } for _, pv := range pvs { ctrl.enqueueWork(ctrl.volumeQueue, pv) }}

這裡將叢集內所有的 pvc/pv 統一都放到對應的 claimQueue & volumeQueue 裡面重新處理。這個resyncPeriod 等於一個random time.Duration * config.time(在 kcm 啟動時設定)。

2 volumeWorker

一個無限迴圈，不斷的處理從 volumeQueue 裡面獲取到的 PersistentVolume

workFunc := func() bool { keyObj, quit := ctrl.volumeQueue.Get() if quit { return true } defer ctrl.volumeQueue.Done(keyObj) key := keyObj.(string) klog.V(5).Infof("volumeWorker[%s]", key) _, name, err := cache.SplitMetaNamespaceKey(key) if err != nil { klog.V(4).Infof("error getting name of volume %q to get volume from informer: %v", key, err) return false } volume, err := ctrl.volumeLister.Get(name) if err == nil { // The volume still exists in informer cache, the event must have // been add/update/sync ctrl.updateVolume(volume) return false } if !errors.IsNotFound(err) { klog.V(2).Infof("error getting volume %q from informer: %v", key, err) return false } // The volume is not in informer cache, the event must have been // "delete" volumeObj, found, err := ctrl.volumes.store.GetByKey(key) if err != nil { klog.V(2).Infof("error getting volume %q from cache: %v", key, err) return false } if !found { // The controller has already processed the delete event and // deleted the volume from its cache klog.V(2).Infof("deletion of volume %q was already processed", key) return false } volume, ok := volumeObj.(*v1.PersistentVolume) if !ok { klog.Errorf("expected volume, got %+v", volumeObj) return false } ctrl.deleteVolume(volume) return false }

我們主要關注 ctrl.updateVolume(volume) 方法

updateVolume

updateVolume 方法是對於叢集內的 events 實際 handler 方法，它裡面主要呼叫了 ctrl.syncVolume 方法來處理

func (ctrl *PersistentVolumeController) syncVolume(ctx context.Context, volume *v1.PersistentVolume) error { klog.V(4).Infof("synchronizing PersistentVolume[%s]: %s", volume.Name, getVolumeStatusForLogging(volume)) ... // [Unit test set 4] if volume.Spec.ClaimRef == nil { // Volume is unused klog.V(4).Infof("synchronizing PersistentVolume[%s]: volume is unused", volume.Name) if _, err := ctrl.updateVolumePhase(volume, v1.VolumeAvailable, ""); err != nil { // Nothing was saved; we will fall back into the same // condition in the next call to this method return err } return nil } else /* pv.Spec.ClaimRef != nil */ { // Volume is bound to a claim. if volume.Spec.ClaimRef.UID == "" { // The PV is reserved for a PVC; that PVC has not yet been // bound to this PV; the PVC sync will handle it.

      klog.V(4).Infof("synchronizing PersistentVolume[%s]: volume is pre-bound to claim %s", volume.Name, claimrefToClaimKey(volume.Spec.ClaimRef))

if _, err := ctrl.updateVolumePhase(volume, v1.VolumeAvailable, ""); err != nil { // Nothing was saved; we will fall back into the same // condition in the next call to this method return err } return nil }

    klog.V(4).Infof("synchronizing PersistentVolume[%s]: volume is bound to claim %s", volume.Name, claimrefToClaimKey(volume.Spec.ClaimRef))

// Get the PVC by _name_ var claim *v1.PersistentVolumeClaim claimName := claimrefToClaimKey(volume.Spec.ClaimRef) obj, found, err := ctrl.claims.GetByKey(claimName) if err != nil { return err } if !found { if volume.Status.Phase != v1.VolumeReleased && volume.Status.Phase != v1.VolumeFailed {

        obj, err = ctrl.claimLister.PersistentVolumeClaims(volume.Spec.ClaimRef.Namespace).Get(volume.Spec.ClaimRef.Name)

if err != nil && !apierrors.IsNotFound(err) { return err } found = !apierrors.IsNotFound(err) if !found {

          obj, err = ctrl.kubeClient.CoreV1().PersistentVolumeClaims(volume.Spec.ClaimRef.Namespace).Get(context.TODO(), volume.Spec.ClaimRef.Name, metav1.GetOptions{})

if err != nil && !apierrors.IsNotFound(err) { return err } found = !apierrors.IsNotFound(err) } } } if !found {

      klog.V(4).Infof("synchronizing PersistentVolume[%s]: claim %s not found", volume.Name, claimrefToClaimKey(volume.Spec.ClaimRef))

// Fall through with claim = nil } else { var ok bool claim, ok = obj.(*v1.PersistentVolumeClaim) if !ok { return fmt.Errorf("cannot convert object from volume cache to volume %q!?: %#v", claim.Spec.VolumeName, obj) }

      klog.V(4).Infof("synchronizing PersistentVolume[%s]: claim %s found: %s", volume.Name, claimrefToClaimKey(volume.Spec.ClaimRef), getClaimStatusForLogging(claim))

} if claim != nil && claim.UID != volume.Spec.ClaimRef.UID {

      klog.V(4).Infof("Maybe cached claim: %s is not the newest one, we should fetch it from apiserver", claimrefToClaimKey(volume.Spec.ClaimRef))

      claim, err = ctrl.kubeClient.CoreV1().PersistentVolumeClaims(volume.Spec.ClaimRef.Namespace).Get(context.TODO(), volume.Spec.ClaimRef.Name, metav1.GetOptions{})

if err != nil && !apierrors.IsNotFound(err) { return err } else if claim != nil { // Treat the volume as bound to a missing claim. if claim.UID != volume.Spec.ClaimRef.UID {

          klog.V(4).Infof("synchronizing PersistentVolume[%s]: claim %s has a newer UID than pv.ClaimRef, the old one must have been deleted", volume.Name, claimrefToClaimKey(volume.Spec.ClaimRef))

claim = nil } else {

          klog.V(4).Infof("synchronizing PersistentVolume[%s]: claim %s has a same UID with pv.ClaimRef", volume.Name, claimrefToClaimKey(volume.Spec.ClaimRef))

} } } if claim == nil { if volume.Status.Phase != v1.VolumeReleased && volume.Status.Phase != v1.VolumeFailed { // Also, log this only once:

        klog.V(2).Infof("volume %q is released and reclaim policy %q will be executed", volume.Name, volume.Spec.PersistentVolumeReclaimPolicy)

if volume, err = ctrl.updateVolumePhase(volume, v1.VolumeReleased, ""); err != nil { // Nothing was saved; we will fall back into the same condition // in the next call to this method return err } } if err = ctrl.reclaimVolume(volume); err != nil { // Release failed, we will fall back into the same condition // in the next call to this method return err } if volume.Spec.PersistentVolumeReclaimPolicy == v1.PersistentVolumeReclaimRetain { // volume is being retained, it references a claim that does not exist now.

        klog.V(4).Infof("PersistentVolume[%s] references a claim %q (%s) that is not found", volume.Name, claimrefToClaimKey(volume.Spec.ClaimRef), volume.Spec.ClaimRef.UID)

} return nil } else if claim.Spec.VolumeName == "" { if pvutil.CheckVolumeModeMismatches(&claim.Spec, &volume.Spec) {

        volumeMsg := fmt.Sprintf("Cannot bind PersistentVolume to requested PersistentVolumeClaim %q due to incompatible volumeMode.", claim.Name)

ctrl.eventRecorder.Event(volume, v1.EventTypeWarning, events.VolumeMismatch, volumeMsg)

        claimMsg := fmt.Sprintf("Cannot bind PersistentVolume %q to requested PersistentVolumeClaim due to incompatible volumeMode.", volume.Name)

ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.VolumeMismatch, claimMsg) // Skipping syncClaim return nil } if metav1.HasAnnotation(volume.ObjectMeta, pvutil.AnnBoundByController) { // The binding is not completed; let PVC sync handle it

        klog.V(4).Infof("synchronizing PersistentVolume[%s]: volume not bound yet, waiting for syncClaim to fix it", volume.Name)

} else { // Dangling PV; try to re-establish the link in the PVC sync

        klog.V(4).Infof("synchronizing PersistentVolume[%s]: volume was bound and got unbound (by user?), waiting for syncClaim to fix it", volume.Name)

} ctrl.claimQueue.Add(claimToClaimKey(claim)) return nil } else if claim.Spec.VolumeName == volume.Name { // Volume is bound to a claim properly, update status if necessary klog.V(4).Infof("synchronizing PersistentVolume[%s]: all is bound", volume.Name) if _, err = ctrl.updateVolumePhase(volume, v1.VolumeBound, ""); err != nil { // Nothing was saved; we will fall back into the same // condition in the next call to this method return err } return nil } else { // Volume is bound to a claim, but the claim is bound elsewhere

      if metav1.HasAnnotation(volume.ObjectMeta, pvutil.AnnDynamicallyProvisioned) && volume.Spec.PersistentVolumeReclaimPolicy == v1.PersistentVolumeReclaimDelete {

if volume.Status.Phase != v1.VolumeReleased && volume.Status.Phase != v1.VolumeFailed { // Also, log this only once: klog.V(2).Infof("dynamically volume %q is released and it will be deleted", volume.Name) if volume, err = ctrl.updateVolumePhase(volume, v1.VolumeReleased, ""); err != nil { // Nothing was saved; we will fall back into the same condition // in the next call to this method return err } } if err = ctrl.reclaimVolume(volume); err != nil { return err } return nil } else { if metav1.HasAnnotation(volume.ObjectMeta, pvutil.AnnBoundByController) {

          klog.V(4).Infof("synchronizing PersistentVolume[%s]: volume is bound by controller to a claim that is bound to another volume, unbinding", volume.Name)

if err = ctrl.unbindVolume(volume); err != nil { return err } return nil } else { // The PV must have been created with this ptr; leave it alone.

          klog.V(4).Infof("synchronizing PersistentVolume[%s]: volume is bound by user to a claim that is bound to another volume, waiting for the claim to get unbound", volume.Name)

if err = ctrl.unbindVolume(volume); err != nil { return err } return nil } } } }}

1、當 pv 的 Spec.ClaimRef 的值為空的時候，說明當前 pv 未被使用，呼叫 ctrl.updateVolumePhase 使得 pv 進入 Available 狀態

2、當 pv 的 Spec.ClaimRef 的值不為空的時候，說明當前 pv 已繫結一個pvc

當Spec.ClaimRef.UID 為空的時候，說明 pvc 還未繫結 pv，呼叫ctrl.updateVolumePhase 使得 pv 進入 Available 狀態，方法返回，等待 pvc syncClaim 方法處理

使用 Spec.ClaimRef 相關的 pvc 資訊獲取 pv_controller快取的pvc

如果 pvc 沒有找到

有可能是叢集壓力過大快取沒有更新，則進一步從 informercache 中找，如果 informercache裡面還是沒有的話則進一步從apiserver中去找

這裡如果發現非 Released & 非 Failed 的pv 經過上述步驟仍然找不到 pvc 的話，說明 pvc 被刪除。在最新的kubernetes 版本中會檢查reclaimPoilcy，對 pv的狀態進行處理

找到 pvc 之後

1）如果 pvc 的 uid 和 Spec.ClaimRef.UID 不一致，這樣一般是 pv 指向的 pvc 被刪了，然後立即建立了一個同名的pvc，而快取還沒有更新，這時我們需要doublecheck一下，若 double check 之後依舊不存在，則判斷是pv綁定了一個不存在的pvc，將pvc置為空，執行上述pvc 沒有找到的邏輯

2）如果pvc 的 volumeName 為空

檢查 pvc的 volumeMode 和 pv 的 volumeMode是否一致，不一致報 event 出來
如果發現有這個 pv 有 AnnBoundByController = "pv.kubernetes.io/bound-by-controller" 這個annotation 說明 pvc/pv 流程正在繫結中
將 pvc 放到 claimQueue 裡面，讓 claimWorker 進行處理

3）如果 pvc.Spec.volumeName == pv.volumeName 的時候，直接將 pv 設定為 bound 狀態

4）如果 pvc.Spec.volumeName != pv.volumeName 的時候

如果是 pv 是動態建立的情況下，並且 pv 的 ReclaimPolicy 是 delete 的情況下，說明 pvc 已經綁定了其他pv，將 pv 置為 released 的狀態，等待deleters 刪除
如果 pv 不是動態建立的情況下，將 pv 的 ClaimRef 欄位置為空，將其 unbound 掉

3 claimWorker

一個無限迴圈，不斷的處理從 claimQueue 裡面獲取到的 PersistentVolumeClaim

workFunc := func() bool { keyObj, quit := ctrl.claimQueue.Get() if quit { return true } defer ctrl.claimQueue.Done(keyObj) key := keyObj.(string) klog.V(5).Infof("claimWorker[%s]", key) namespace, name, err := cache.SplitMetaNamespaceKey(key) if err != nil { klog.V(4).Infof("error getting namespace & name of claim %q to get claim from informer: %v", key, err) return false } claim, err := ctrl.claimLister.PersistentVolumeClaims(namespace).Get(name) if err == nil { // The claim still exists in informer cache, the event must have // been add/update/sync ctrl.updateClaim(claim) return false } if !errors.IsNotFound(err) { klog.V(2).Infof("error getting claim %q from informer: %v", key, err) return false } // The claim is not in informer cache, the event must have been "delete" claimObj, found, err := ctrl.claims.GetByKey(key) if err != nil { klog.V(2).Infof("error getting claim %q from cache: %v", key, err) return false } if !found { // The controller has already processed the delete event and // deleted the claim from its cache klog.V(2).Infof("deletion of claim %q was already processed", key) return false } claim, ok := claimObj.(*v1.PersistentVolumeClaim) if !ok { klog.Errorf("expected claim, got %+v", claimObj) return false } ctrl.deleteClaim(claim) return false }

我們主要關注 ctrl.updateClaim(claim) 方法, 與上面同樣，它裡面主要呼叫了 ctrl.syncClaim 方法來處理，在 syncClaim 裡面根據 pvc 的狀態分別呼叫了 ctrl.syncUnboundClaim & ctrl.syncBoundClaim 方法來處理

syncUnboundClaim

func (ctrl *PersistentVolumeController) syncUnboundClaim(ctx context.Context, claim *v1.PersistentVolumeClaim) error { if claim.Spec.VolumeName == "" { // User did not care which PV they get. delayBinding, err := pvutil.IsDelayBindingMode(claim, ctrl.classLister) if err != nil { return err } // [Unit test set 1] volume, err := ctrl.volumes.findBestMatchForClaim(claim, delayBinding) if err != nil {

      klog.V(2).Infof("synchronizing unbound PersistentVolumeClaim[%s]: Error finding PV for claim: %v", claimToClaimKey(claim), err)

return fmt.Errorf("error finding PV for claim %q: %w", claimToClaimKey(claim), err) } if volume == nil { klog.V(4).Infof("synchronizing unbound PersistentVolumeClaim[%s]: no volume found", claimToClaimKey(claim)) switch { case delayBinding && !pvutil.IsDelayBindingProvisioning(claim): if err = ctrl.emitEventForUnboundDelayBindingClaim(claim); err != nil { return err } case storagehelpers.GetPersistentVolumeClaimClass(claim) != "": if err = ctrl.provisionClaim(ctx, claim); err != nil { return err } return nil default:

        ctrl.eventRecorder.Event(claim, v1.EventTypeNormal, events.FailedBinding, "no persistent volumes available for this claim and no storage class is set")

} // Mark the claim as Pending and try to find a match in the next // periodic syncClaim if _, err = ctrl.updateClaimStatus(claim, v1.ClaimPending, nil); err != nil { return err } return nil } else /* pv != nil */ { // Found a PV for this claim // OBSERVATION: pvc is "Pending", pv is "Available" claimKey := claimToClaimKey(claim)

      klog.V(4).Infof("synchronizing unbound PersistentVolumeClaim[%s]: volume %q found: %s", claimKey, volume.Name, getVolumeStatusForLogging(volume))

if err = ctrl.bind(volume, claim); err != nil { metrics.RecordMetric(claimKey, &ctrl.operationTimestamps, err) return err } metrics.RecordMetric(claimKey, &ctrl.operationTimestamps, nil) return nil } } else /* pvc.Spec.VolumeName != nil */ {

    klog.V(4).Infof("synchronizing unbound PersistentVolumeClaim[%s]: volume %q requested", claimToClaimKey(claim), claim.Spec.VolumeName)

obj, found, err := ctrl.volumes.store.GetByKey(claim.Spec.VolumeName) if err != nil { return err } if !found {

      klog.V(4).Infof("synchronizing unbound PersistentVolumeClaim[%s]: volume %q requested and not found, will try again next time", claimToClaimKey(claim), claim.Spec.VolumeName)

if _, err = ctrl.updateClaimStatus(claim, v1.ClaimPending, nil); err != nil { return err } return nil } else { volume, ok := obj.(*v1.PersistentVolume) if !ok { return fmt.Errorf("cannot convert object from volume cache to volume %q!?: %+v", claim.Spec.VolumeName, obj) }

      klog.V(4).Infof("synchronizing unbound PersistentVolumeClaim[%s]: volume %q requested and found: %s", claimToClaimKey(claim), claim.Spec.VolumeName, getVolumeStatusForLogging(volume))

if volume.Spec.ClaimRef == nil {

        klog.V(4).Infof("synchronizing unbound PersistentVolumeClaim[%s]: volume is unbound, binding", claimToClaimKey(claim))

if err = checkVolumeSatisfyClaim(volume, claim); err != nil { klog.V(4).Infof("Can't bind the claim to volume %q: %v", volume.Name, err) // send an event msg := fmt.Sprintf("Cannot bind to requested volume %q: %s", volume.Name, err) ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.VolumeMismatch, msg) // volume does not satisfy the requirements of the claim if _, err = ctrl.updateClaimStatus(claim, v1.ClaimPending, nil); err != nil { return err } } else if err = ctrl.bind(volume, claim); err != nil { // On any error saving the volume or the claim, subsequent // syncClaim will finish the binding. return err } // OBSERVATION: pvc is "Bound", pv is "Bound" return nil } else if pvutil.IsVolumeBoundToClaim(volume, claim) { // User asked for a PV that is claimed by this PVC // OBSERVATION: pvc is "Pending", pv is "Bound"

        klog.V(4).Infof("synchronizing unbound PersistentVolumeClaim[%s]: volume already bound, finishing the binding", claimToClaimKey(claim))

// Finish the volume binding by adding claim UID. if err = ctrl.bind(volume, claim); err != nil { return err } // OBSERVATION: pvc is "Bound", pv is "Bound" return nil } else { // User asked for a PV that is claimed by someone else // OBSERVATION: pvc is "Pending", pv is "Bound" if !metav1.HasAnnotation(claim.ObjectMeta, pvutil.AnnBoundByController) {

          klog.V(4).Infof("synchronizing unbound PersistentVolumeClaim[%s]: volume already bound to different claim by user, will retry later", claimToClaimKey(claim))

claimMsg := fmt.Sprintf("volume %q already bound to a different claim.", volume.Name) ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.FailedBinding, claimMsg) // User asked for a specific PV, retry later if _, err = ctrl.updateClaimStatus(claim, v1.ClaimPending, nil); err != nil { return err } return nil } else {

          klog.V(4).Infof("synchronizing unbound PersistentVolumeClaim[%s]: volume already bound to different claim %q by controller, THIS SHOULD NEVER HAPPEN", claimToClaimKey(claim), claimrefToClaimKey(volume.Spec.ClaimRef))

claimMsg := fmt.Sprintf("volume %q already bound to a different claim.", volume.Name) ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.FailedBinding, claimMsg)

          return fmt.Errorf("invalid binding of claim %q to volume %q: volume already claimed by %q", claimToClaimKey(claim), claim.Spec.VolumeName, claimrefToClaimKey(volume.Spec.ClaimRef))

} } } }}

梳理下整體流程

如果當前 pvc 的 volumeName 為空

判斷當前pvc 是否是延遲繫結的
呼叫 volume, err := ctrl.volumes.findBestMatchForClaim(claim, delayBinding) 找出對應的 pv

如果找到 volume 的話

呼叫 ctrl.bind(volume, claim) 方法進行繫結

如果沒有找到 volume 的話

如果是延遲繫結，並且還未觸發（pod 未引用）則 emit event 到 pvc 上
如果 pvc 綁定了 sc, 呼叫 ctrl.provisionClaim(ctx, claim) 方法

分析 pvc yaml，找到 provisioner driver

啟動一個 goroutine

呼叫 ctrl.provisionClaimOperation(ctx, claim, plugin, storageClass) 進行建立工作

provisionClaimOperation

func (ctrl *PersistentVolumeController) provisionClaimOperation( ctx context.Context, claim *v1.PersistentVolumeClaim, plugin vol.ProvisionableVolumePlugin, storageClass *storage.StorageClass) (string, error) { claimClass := storagehelpers.GetPersistentVolumeClaimClass(claim) klog.V(4).Infof("provisionClaimOperation [%s] started, class: %q", claimToClaimKey(claim), claimClass) pluginName := plugin.GetPluginName() if pluginName != "kubernetes.io/csi" && claim.Spec.DataSource != nil {

    strerr := fmt.Sprintf("plugin %q is not a CSI plugin. Only CSI plugin can provision a claim with a datasource", pluginName)

return pluginName, fmt.Errorf(strerr) } provisionerName := storageClass.Provisioner // Add provisioner annotation to be consistent with external provisioner workflow newClaim, err := ctrl.setClaimProvisioner(ctx, claim, provisionerName) if err != nil { // Save failed, the controller will retry in the next sync klog.V(2).Infof("error saving claim %s: %v", claimToClaimKey(claim), err) return pluginName, err } claim = newClaim pvName := ctrl.getProvisionedVolumeNameForClaim(claim) volume, err := ctrl.kubeClient.CoreV1().PersistentVolumes().Get(context.TODO(), pvName, metav1.GetOptions{}) if err != nil && !apierrors.IsNotFound(err) { klog.V(3).Infof("error reading persistent volume %q: %v", pvName, err) return pluginName, err } if err == nil && volume != nil { // Volume has been already provisioned, nothing to do. klog.V(4).Infof("provisionClaimOperation [%s]: volume already exists, skipping", claimToClaimKey(claim)) return pluginName, err } // Prepare a claimRef to the claim early (to fail before a volume is // provisioned) claimRef, err := ref.GetReference(scheme.Scheme, claim) if err != nil { klog.V(3).Infof("unexpected error getting claim reference: %v", err) return pluginName, err } // Gather provisioning options tags := make(map[string]string) tags[CloudVolumeCreatedForClaimNamespaceTag] = claim.Namespace tags[CloudVolumeCreatedForClaimNameTag] = claim.Name tags[CloudVolumeCreatedForVolumeNameTag] = pvName options := vol.VolumeOptions{ PersistentVolumeReclaimPolicy: *storageClass.ReclaimPolicy, MountOptions: storageClass.MountOptions, CloudTags: &tags, ClusterName: ctrl.clusterName, PVName: pvName, PVC: claim, Parameters: storageClass.Parameters, } // Refuse to provision if the plugin doesn't support mount options, creation // of PV would be rejected by validation anyway if !plugin.SupportsMountOption() && len(options.MountOptions) > 0 {

    strerr := fmt.Sprintf("Mount options are not supported by the provisioner but StorageClass %q has mount options %v", storageClass.Name, options.MountOptions)

    klog.V(2).Infof("Mount options are not supported by the provisioner but claim %q's StorageClass %q has mount options %v", claimToClaimKey(claim), storageClass.Name, options.MountOptions)

ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.ProvisioningFailed, strerr) return pluginName, fmt.Errorf("provisioner %q doesn't support mount options", plugin.GetPluginName()) } // Provision the volume provisioner, err := plugin.NewProvisioner(options) if err != nil { strerr := fmt.Sprintf("Failed to create provisioner: %v", err)

    klog.V(2).Infof("failed to create provisioner for claim %q with StorageClass %q: %v", claimToClaimKey(claim), storageClass.Name, err)

ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.ProvisioningFailed, strerr) return pluginName, err } var selectedNode *v1.Node = nil if nodeName, ok := claim.Annotations[pvutil.AnnSelectedNode]; ok { selectedNode, err = ctrl.NodeLister.Get(nodeName) if err != nil { strerr := fmt.Sprintf("Failed to get target node: %v", err) klog.V(3).Infof("unexpected error getting target node %q for claim %q: %v", nodeName, claimToClaimKey(claim), err) ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.ProvisioningFailed, strerr) return pluginName, err } } allowedTopologies := storageClass.AllowedTopologies opComplete := util.OperationCompleteHook(plugin.GetPluginName(), "volume_provision") volume, err = provisioner.Provision(selectedNode, allowedTopologies) opComplete(volumetypes.CompleteFuncParam{Err: &err}) if err != nil { ctrl.rescheduleProvisioning(claim) strerr := fmt.Sprintf("Failed to provision volume with StorageClass %q: %v", storageClass.Name, err)

    klog.V(2).Infof("failed to provision volume for claim %q with StorageClass %q: %v", claimToClaimKey(claim), storageClass.Name, err)

ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.ProvisioningFailed, strerr) return pluginName, err } klog.V(3).Infof("volume %q for claim %q created", volume.Name, claimToClaimKey(claim)) // Create Kubernetes PV object for the volume. if volume.Name == "" { volume.Name = pvName } // Bind it to the claim volume.Spec.ClaimRef = claimRef volume.Status.Phase = v1.VolumeBound volume.Spec.StorageClassName = claimClass // Add AnnBoundByController (used in deleting the volume) metav1.SetMetaDataAnnotation(&volume.ObjectMeta, pvutil.AnnBoundByController, "yes") metav1.SetMetaDataAnnotation(&volume.ObjectMeta, pvutil.AnnDynamicallyProvisioned, plugin.GetPluginName()) // Try to create the PV object several times for i := 0; i < ctrl.createProvisionedPVRetryCount; i++ { klog.V(4).Infof("provisionClaimOperation [%s]: trying to save volume %s", claimToClaimKey(claim), volume.Name) var newVol *v1.PersistentVolume

    if newVol, err = ctrl.kubeClient.CoreV1().PersistentVolumes().Create(context.TODO(), volume, metav1.CreateOptions{}); err == nil || apierrors.IsAlreadyExists(err) {

// Save succeeded. if err != nil { klog.V(3).Infof("volume %q for claim %q already exists, reusing", volume.Name, claimToClaimKey(claim)) err = nil } else { klog.V(3).Infof("volume %q for claim %q saved", volume.Name, claimToClaimKey(claim)) _, updateErr := ctrl.storeVolumeUpdate(newVol) if updateErr != nil { // We will get an "volume added" event soon, this is not a big error klog.V(4).Infof("provisionClaimOperation [%s]: cannot update internal cache: %v", volume.Name, updateErr) } } break } // Save failed, try again after a while. klog.V(3).Infof("failed to save volume %q for claim %q: %v", volume.Name, claimToClaimKey(claim), err) time.Sleep(ctrl.createProvisionedPVInterval) } if err != nil {

    strerr := fmt.Sprintf("Error creating provisioned PV object for claim %s: %v. Deleting the volume.", claimToClaimKey(claim), err)

klog.V(3).Info(strerr) ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.ProvisioningFailed, strerr) var deleteErr error var deleted bool for i := 0; i < ctrl.createProvisionedPVRetryCount; i++ { _, deleted, deleteErr = ctrl.doDeleteVolume(volume) if deleteErr == nil && deleted { // Delete succeeded

        klog.V(4).Infof("provisionClaimOperation [%s]: cleaning volume %s succeeded", claimToClaimKey(claim), volume.Name)

break } if !deleted { klog.Errorf("Error finding internal deleter for volume plugin %q", plugin.GetPluginName()) break } // Delete failed, try again after a while. klog.V(3).Infof("failed to delete volume %q: %v", volume.Name, deleteErr) time.Sleep(ctrl.createProvisionedPVInterval) } if deleteErr != nil {

      strerr := fmt.Sprintf("Error cleaning provisioned volume for claim %s: %v. Please delete manually.", claimToClaimKey(claim), deleteErr)

klog.V(2).Info(strerr) ctrl.eventRecorder.Event(claim, v1.EventTypeWarning, events.ProvisioningCleanupFailed, strerr) } } else { klog.V(2).Infof("volume %q provisioned for claim %q", volume.Name, claimToClaimKey(claim)) msg := fmt.Sprintf("Successfully provisioned volume %s using %s", volume.Name, plugin.GetPluginName()) ctrl.eventRecorder.Event(claim, v1.EventTypeNormal, events.ProvisioningSucceeded, msg) } return pluginName, nil}

provisionClaimOperation 的基本邏輯如下

檢查driver，只有 csi 型別的 driver 才允許使用 dataSource 欄位

為 pvc 加 claim.Annotations["volume.kubernetes.io/storage-provisioner"] = class.Provisioner annotation

根據規則拼出 pv Name = "pvc-" + pvc.UID

如果找到了 pv，則說明 pv已經存在，跳過 provision

收集pvc/pv 基本資訊封裝到 options 中

對 plugin 進行校驗，如果plugin不支援mount操作，則直接拒絕provision 請求

呼叫plugin.NewProvisioner(options) 建立 provisioner，介面實現了Provision(selectedNode *v1.Node, allowedTopologies []v1.TopologySelectorTerm) 方法，注意，該方法為同步方法

Provision 方法返回了 PersistentVolume例項

為創建出來的 pv 關聯 pvc 物件（ClaimRef），嘗試建立 pv 物件 (重複多次)

如果建立 pv 失敗，則嘗試呼叫 Delete 方法刪除建立的volume資源

syncBoundClaim

func (ctrl *PersistentVolumeController) syncBoundClaim(claim *v1.PersistentVolumeClaim) error { if claim.Spec.VolumeName == "" { // Claim was bound before but not any more.

    if _, err := ctrl.updateClaimStatusWithEvent(claim, v1.ClaimLost, nil, v1.EventTypeWarning, "ClaimLost", "Bound claim has lost reference to PersistentVolume. Data on the volume is lost!"); err != nil {

return err } return nil } obj, found, err := ctrl.volumes.store.GetByKey(claim.Spec.VolumeName) if err != nil { return err } if !found { // Claim is bound to a non-existing volume.

    if _, err = ctrl.updateClaimStatusWithEvent(claim, v1.ClaimLost, nil, v1.EventTypeWarning, "ClaimLost", "Bound claim has lost its PersistentVolume. Data on the volume is lost!"); err != nil {

return err } return nil } else { volume, ok := obj.(*v1.PersistentVolume) if !ok { return fmt.Errorf("cannot convert object from volume cache to volume %q!?: %#v", claim.Spec.VolumeName, obj) }

    klog.V(4).Infof("synchronizing bound PersistentVolumeClaim[%s]: volume %q found: %s", claimToClaimKey(claim), claim.Spec.VolumeName, getVolumeStatusForLogging(volume))

if volume.Spec.ClaimRef == nil { // Claim is bound but volume has come unbound. // Or, a claim was bound and the controller has not received updated // volume yet. We can't distinguish these cases. // Bind the volume again and set all states to Bound.

      klog.V(4).Infof("synchronizing bound PersistentVolumeClaim[%s]: volume is unbound, fixing", claimToClaimKey(claim))

if err = ctrl.bind(volume, claim); err != nil { // Objects not saved, next syncPV or syncClaim will try again return err } return nil } else if volume.Spec.ClaimRef.UID == claim.UID { // All is well // NOTE: syncPV can handle this so it can be left out. // NOTE: bind() call here will do nothing in most cases as // everything should be already set.

      klog.V(4).Infof("synchronizing bound PersistentVolumeClaim[%s]: claim is already correctly bound", claimToClaimKey(claim))

if err = ctrl.bind(volume, claim); err != nil { // Objects not saved, next syncPV or syncClaim will try again return err } return nil } else { // Claim is bound but volume has a different claimant. // Set the claim phase to 'Lost', which is a terminal // phase.

      if _, err = ctrl.updateClaimStatusWithEvent(claim, v1.ClaimLost, nil, v1.EventTypeWarning, "ClaimMisbound", "Two claims are bound to the same volume, this one is bound incorrectly"); err != nil {

return err } return nil } }}

1）如果 pvc.Spec.VolumeName 為空, 說明這個 pvc 之前被 bound 過，但是已經不存在指向的pv，報出event並返回

2）從 cache 裡面找 pvc 繫結的 pv

如果沒找到, 說明 pvc 綁定了一個不存在的pv，報 event 並返回
如果找到了pv

檢查 pv.Spec.ClaimRef 欄位，如果為空，說明 pv 還沒有繫結 pvc，呼叫 ctrl.bind(volume, claim); 方法進行繫結
pv.ClaimRef.UID == pvc.UID, 呼叫 bind 方法，但是大多數情況會直接返回（因為所有的操作都已經做完了）
其他情況說明 volume 綁定了其他的 pvc，更新pvc 的狀態為 lost 並報出 event

四總結

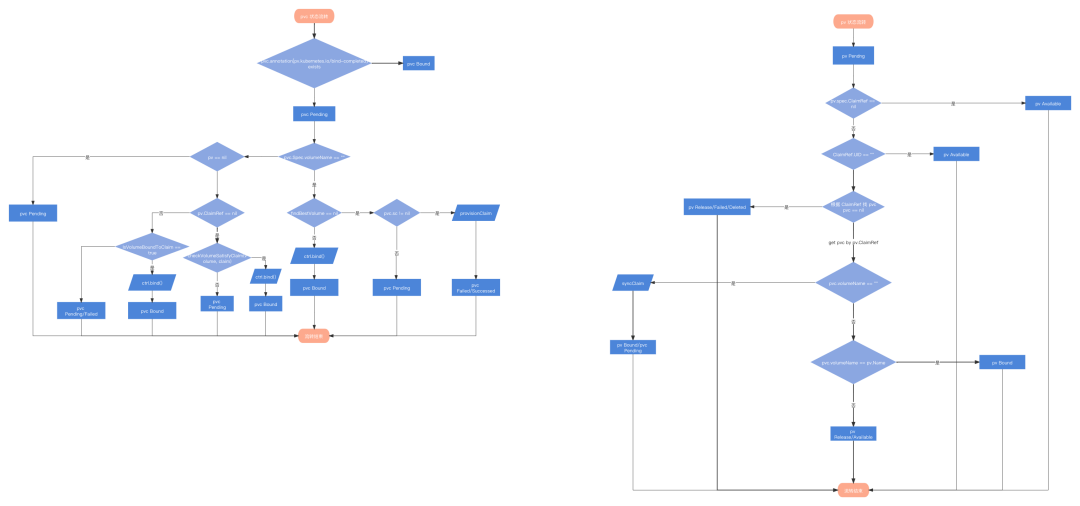

最後用一張 pvc/pv 的狀態流轉圖來總結一下
