一 AOF

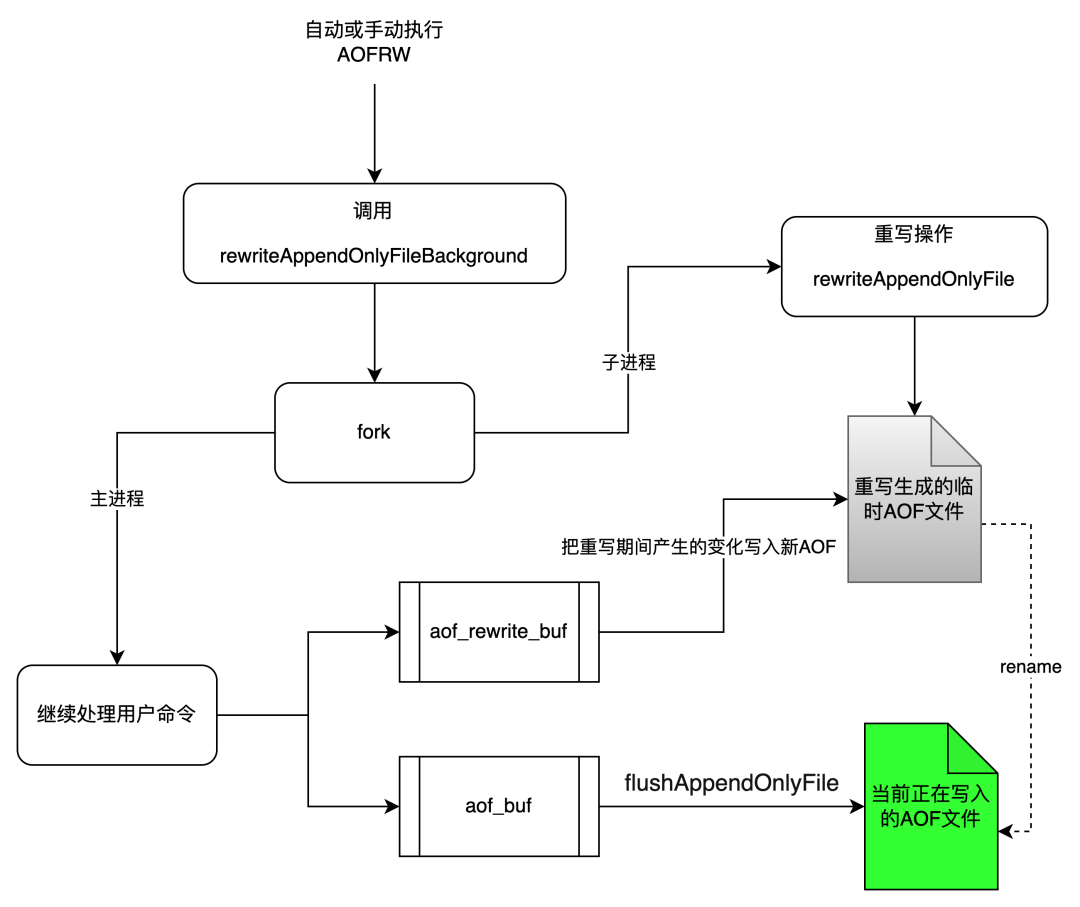

二 AOFRW
三 AOFRW存在的問題
1 記憶體開銷
aof_pending_rewrite:0aof_buffer_length:35500aof_rewrite_buffer_length:34000aof_pending_bio_fsync:03351:M 25 Jan 2022 09:55:39.655 * Backgroundappendonlyfilerewritingstartedbypid 68173351:M 25 Jan 2022 09:57:51.864 * AOFrewritechildaskstostopsendingdiffs.6817:C 25 Jan 2022 09:57:51.864 * Parentagreedtostopsendingdiffs. FinalizingAOF...6817:C 25 Jan 2022 09:57:51.864 * Concatenating 2135.60MBofAOFdiffreceivedfromparent.3351:M 25 Jan 2022 09:57:56.545 * BackgroundAOFbuffersize: 100 MB2 CPU開銷
-
在AOFRW期間，主程序需要花費CPU時間向aof_rewrite_buf寫資料，並使用eventloop事件迴圈向子程序傳送aof_rewrite_buf中的資料：
/* Append data to the AOF rewrite buffer, allocating new blocks if needed. */voidaofRewriteBufferAppend(unsignedchar *s, unsignedlong len){// 此處省略其他細節.../* Install a file event to send data to the rewrite child if there is * not one already. */if (!server.aof_stop_sending_diff && aeGetFileEvents(server.el,server.aof_pipe_write_data_to_child) == 0) { aeCreateFileEvent(server.el, server.aof_pipe_write_data_to_child, AE_WRITABLE, aofChildWriteDiffData, NULL); } // 此處省略其他細節...}-
在子程序執行重寫操作的後期，會迴圈讀取pipe中主程序傳送來的增量資料，然後追加寫入到臨時AOF檔案：
intrewriteAppendOnlyFile(char *filename){// 此處省略其他細節.../* Read again a few times to get more data from the parent. * We can't read forever (the server may receive data from clients * faster than it is able to send data to the child), so we try to read * some more data in a loop as soon as there is a good chance more data * will come. If it looks like we are wasting time, we abort (this * happens after 20 ms without new data). */int nodata = 0;mstime_t start = mstime();while(mstime()-start < 1000 && nodata < 20) {if (aeWait(server.aof_pipe_read_data_from_parent, AE_READABLE, 1) <= 0) { nodata++;continue; } nodata = 0; /* Start counting from zero, we stop on N *contiguous* timeouts. */ aofReadDiffFromParent(); }// 此處省略其他細節...}-
在子程序完成重寫操作後，主程序會在backgroundRewriteDoneHandler 中進行收尾工作。其中一個任務就是將在重寫期間aof_rewrite_buf中沒有消費完成的資料寫入臨時AOF檔案。如果aof_rewrite_buf中遺留的資料很多，這裡也將消耗CPU時間。
voidbackgroundRewriteDoneHandler(int exitcode, int bysignal) {// 此處省略其他細節.../* Flush the differences accumulated by the parent to the rewritten AOF. */if (aofRewriteBufferWrite(newfd) == -1) { serverLog(LL_WARNING,"Error trying to flush the parent diff to the rewritten AOF: %s", strerror(errno)); close(newfd);goto cleanup; }// 此處省略其他細節...}3 磁碟IO開銷
4 程式碼複雜度
/* AOF pipes used to communicate between parent and child during rewrite. */int aof_pipe_write_data_to_child;int aof_pipe_read_data_from_parent;int aof_pipe_write_ack_to_parent;int aof_pipe_read_ack_from_child;int aof_pipe_write_ack_to_child;int aof_pipe_read_ack_from_parent;四 MP-AOF實現

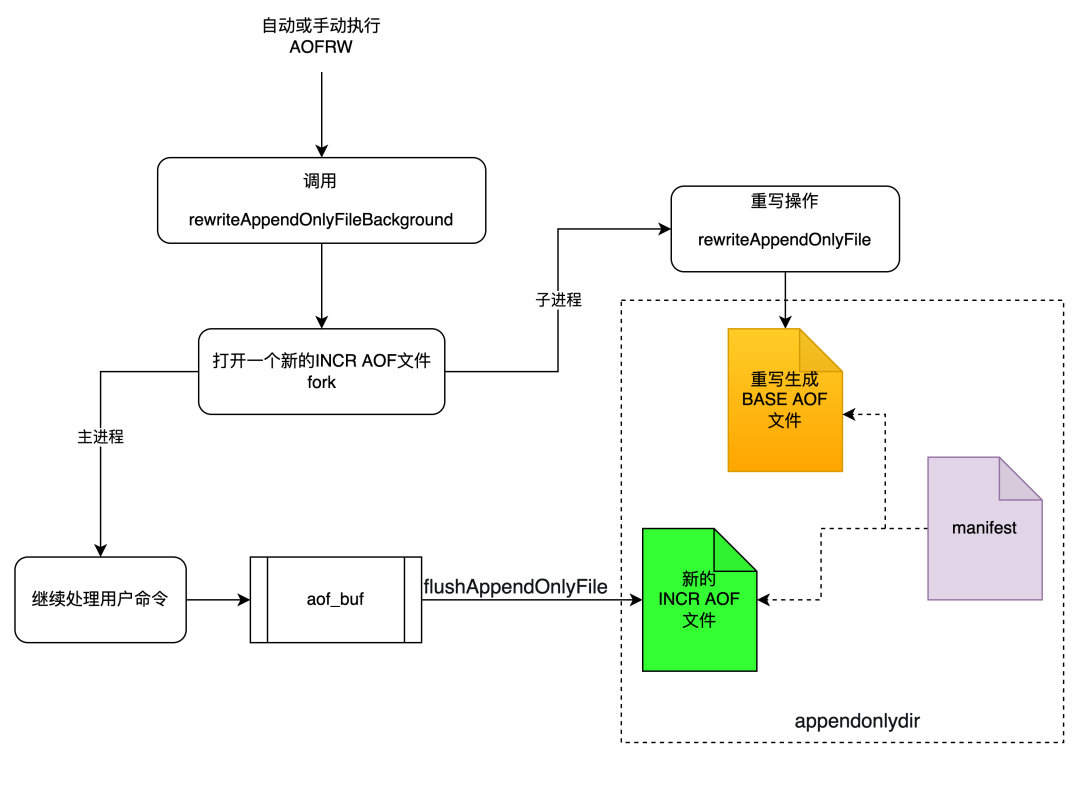

1 方案概述
-
BASE：表示基礎AOF，它一般由子程序透過重寫產生，該檔案最多隻有一個。
-
INCR：表示增量AOF，它一般會在AOFRW開始執行時被建立，該檔案可能存在多個。
-
HISTORY：表示歷史AOF，它由BASE和INCR AOF變化而來，每次AOFRW成功完成時，本次AOFRW之前對應的BASE和INCR AOF都將變為HISTORY，HISTORY型別的AOF會被Redis自動刪除。
2 關鍵實現
Manifest
1）在記憶體中的表示
-
aofInfo：表示一個AOF檔案資訊，當前僅包括檔名、檔案序號和檔案型別
-
base_aof_info：表示BASE AOF資訊，當不存在BASE AOF時，該欄位為NULL
-
incr_aof_list：用於存放所有INCR AOF檔案的資訊，所有的INCR AOF都會按照檔案開啟順序排放
-
history_aof_list：用於存放HISTORY AOF資訊，history_aof_list中的元素都是從base_aof_info和incr_aof_list中move過來的
typedefstruct { sds file_name; /* file name */longlong file_seq; /* file sequence */ aof_file_type file_type; /* file type */} aofInfo;typedefstruct { aofInfo *base_aof_info; /* BASE file information. NULL if there is no BASE file. */list *incr_aof_list; /* INCR AOFs list. We may have multiple INCR AOF when rewrite fails. */list *history_aof_list; /* HISTORY AOF list. When the AOFRW success, The aofInfo contained in `base_aof_info` and `incr_aof_list` will be moved to this list. We will delete these AOF files when AOFRW finish. */longlong curr_base_file_seq; /* The sequence number used by the current BASE file. */longlong curr_incr_file_seq; /* The sequence number used by the current INCR file. */int dirty; /* 1 Indicates that the aofManifest in the memory is inconsistent with disk, we need to persist it immediately. */} aofManifest;structredisServer {// 此處省略其他細節... aofManifest *aof_manifest; /* Used to track AOFs. */// 此處省略其他細節...}2）在磁碟上的表示
fileappendonly.aof.1.base.rdbseq 1 typebfileappendonly.aof.1.incr.aofseq 1 typeifileappendonly.aof.2.incr.aofseq 2 typeifileappendonly.aof.1.base.rdbseq 1 typebnewkeynewvaluefileappendonly.aof.1.incr.aoftypeiseq 1 # thisisannotationsseq 2 typeifileappendonly.aof.2.incr.aof檔案命名規則
-
seq為檔案的序號，由1開始單調遞增，BASE和INCR擁有獨立的檔案序號
-
type為AOF的型別，表示這個AOF檔案是BASE還是INCR
-
format用來表示這個AOF內部的編碼方式，由於Redis支援RDB preamble機制，因此BASE AOF可能是RDB格式編碼也可能是AOF格式編碼：
appendonly.aof.1.base.rdb // 開啟RDB preambleappendonly.aof.1.base.aof // 關閉RDB preambleappendonly.aof.1.incr.aofappendonly.aof.2.incr.aof相容老版本升級
-
如果appenddirname目錄不存在 -
或者appenddirname目錄存在，但是目錄中沒有對應的manifest清單檔案 -
如果appenddirname目錄存在且目錄中存在manifest清單檔案，且清單檔案中只有BASE AOF相關資訊，且這個BASE AOF的名字和server.aof_filename相同，且appenddirname目錄中不存在名為server.aof_filename的檔案
/* Load the AOF files according the aofManifest pointed by am. */int loadAppendOnlyFiles(aofManifest *am) {// 此處省略其他細節.../* If the 'server.aof_filename' file exists in dir, we may be starting * from an old redis version. We will use enter upgrade mode in three situations. * * 1. If the 'server.aof_dirname' directory not exist * 2. If the 'server.aof_dirname' directory exists but the manifest file is missing * 3. If the 'server.aof_dirname' directory exists and the manifest file it contains * has only one base AOF record, and the file name of this base AOF is 'server.aof_filename', * and the 'server.aof_filename' file not exist in 'server.aof_dirname' directory * */if (fileExist(server.aof_filename)) {if (!dirExists(server.aof_dirname) || (am->base_aof_info == NULL && listLength(am->incr_aof_list) == 0) || (am->base_aof_info != NULL && listLength(am->incr_aof_list) == 0 && !strcmp(am->base_aof_info->file_name, server.aof_filename) && !aofFileExist(server.aof_filename))) { aofUpgradePrepare(am); } }// 此處省略其他細節... }-
使用server.aof_filename作為檔名來構造一個BASE AOF資訊 -
將該BASE AOF資訊持久化到manifest檔案 -
使用rename 將舊AOF檔案移動到appenddirname目錄中
void aofUpgradePrepare(aofManifest *am) {// 此處省略其他細節.../* 1. Manually construct a BASE type aofInfo and add it to aofManifest. */if (am->base_aof_info) aofInfoFree(am->base_aof_info); aofInfo *ai = aofInfoCreate(); ai->file_name = sdsnew(server.aof_filename); ai->file_seq = 1; ai->file_type = AOF_FILE_TYPE_BASE; am->base_aof_info = ai; am->curr_base_file_seq = 1; am->dirty = 1;/* 2. Persist the manifest file to AOF directory. */if (persistAofManifest(am) != C_OK) {exit(1); }/* 3. Move the old AOF file to AOF directory. */ sds aof_filepath = makePath(server.aof_dirname, server.aof_filename);if (rename(server.aof_filename, aof_filepath) == -1) { sdsfree(aof_filepath);exit(1);; }// 此處省略其他細節...}多檔案載入及進度計算
int loadAppendOnlyFiles(aofManifest *am) {// 此處省略其他細節.../* Here we calculate the total size of all BASE and INCR files in * advance, it will be set to `server.loading_total_bytes`. */ total_size = getBaseAndIncrAppendOnlyFilesSize(am); startLoading(total_size, RDBFLAGS_AOF_PREAMBLE, 0);/* Load BASE AOF if needed. */if (am->base_aof_info) { aof_name = (char*)am->base_aof_info->file_name; updateLoadingFileName(aof_name); loadSingleAppendOnlyFile(aof_name); }/* Load INCR AOFs if needed. */if (listLength(am->incr_aof_list)) { listNode *ln; listIter li; listRewind(am->incr_aof_list, &li);while ((ln = listNext(&li)) != NULL) { aofInfo *ai = (aofInfo*)ln->value; aof_name = (char*)ai->file_name; updateLoadingFileName(aof_name); loadSingleAppendOnlyFile(aof_name); } } server.aof_current_size = total_size; server.aof_rewrite_base_size = server.aof_current_size; server.aof_fsync_offset = server.aof_current_size; stopLoading();// 此處省略其他細節...}AOFRW Crash Safety
-
BASE AOF的名字中包含檔案序號，保證每次建立的BASE AOF不會和之前的BASE AOF衝突； -
先執行AOF的rename 操作，再修改manifest檔案；
fileappendonly.aof.1.base.rdbseq 1 typebfileappendonly.aof.1.incr.aofseq 1 typeifileappendonly.aof.1.base.rdbseq 1 typebfileappendonly.aof.1.incr.aofseq 1 typeifileappendonly.aof.2.incr.aofseq 2 typeifileappendonly.aof.2.base.rdbseq 2 typebfileappendonly.aof.1.base.rdbseq 1 typehfileappendonly.aof.1.incr.aofseq 1 typehfileappendonly.aof.2.incr.aofseq 2 typei-
在修改記憶體中的server.aof_manifest前，先dup一份臨時的manifest結構，接下來的修改都將針對這個臨時的manifest進行。這樣做的好處是，一旦後面的步驟出現失敗，我們可以簡單的銷燬臨時manifest從而回滾整個操作，避免汙染server.aof_manifest全域性資料結構； -
從臨時manifest中獲取新的BASE AOF檔名（記為new_base_filename），並將之前（如果有）的BASE AOF標記為HISTORY； -
將子程序產生的temp-rewriteaof-bg-pid.aof臨時檔案重新命名為new_base_filename； -
將臨時manifest結構中上一次的INCR AOF全部標記為HISTORY型別； -
將臨時manifest對應的資訊持久化到磁碟（persistAofManifest內部會保證manifest本身修改的原子性）； -
如果上述步驟都成功了，我們可以放心的將記憶體中的server.aof_manifest指標指向臨時的manifest結構（並釋放之前的manifest結構），至此整個修改對Redis可見； -
清理HISTORY型別的AOF，該步驟允許失敗，因為它不會導致資料一致性問題。
voidbackgroundRewriteDoneHandler(int exitcode, int bysignal){snprintf(tmpfile, 256, "temp-rewriteaof-bg-%d.aof", (int)server.child_pid);/* 1. Dup a temporary aof_manifest for subsequent modifications. */ temp_am = aofManifestDup(server.aof_manifest);/* 2. Get a new BASE file name and mark the previous (if we have) * as the HISTORY type. */ new_base_filename = getNewBaseFileNameAndMarkPreAsHistory(temp_am);/* 3. Rename the temporary aof file to 'new_base_filename'. */if (rename(tmpfile, new_base_filename) == -1) { aofManifestFree(temp_am);goto cleanup; }/* 4. Change the AOF file type in 'incr_aof_list' from AOF_FILE_TYPE_INCR * to AOF_FILE_TYPE_HIST, and move them to the 'history_aof_list'. */ markRewrittenIncrAofAsHistory(temp_am);/* 5. Persist our modifications. */if (persistAofManifest(temp_am) == C_ERR) { bg_unlink(new_base_filename); aofManifestFree(temp_am);goto cleanup; }/* 6. We can safely let `server.aof_manifest` point to 'temp_am' and free the previous one. */ aofManifestFreeAndUpdate(temp_am);/* 7. We don't care about the return value of `aofDelHistoryFiles`, because the history * deletion failure will not cause any problems. */ aofDelHistoryFiles();}支援AOF truncate
if (ftruncate(server.aof_fd, server.aof_last_incr_size) == -1) {//此處省略其他細節... }AOFRW限流
if (server.aof_state == AOF_ON && !hasActiveChildProcess() && server.aof_rewrite_perc && server.aof_current_size > server.aof_rewrite_min_size && !aofRewriteLimited()){longlongbase = server.aof_rewrite_base_size ? server.aof_rewrite_base_size : 1;longlong growth = (server.aof_current_size*100/base) - 100;if (growth >= server.aof_rewrite_perc) { rewriteAppendOnlyFileBackground(); }}五 總結
